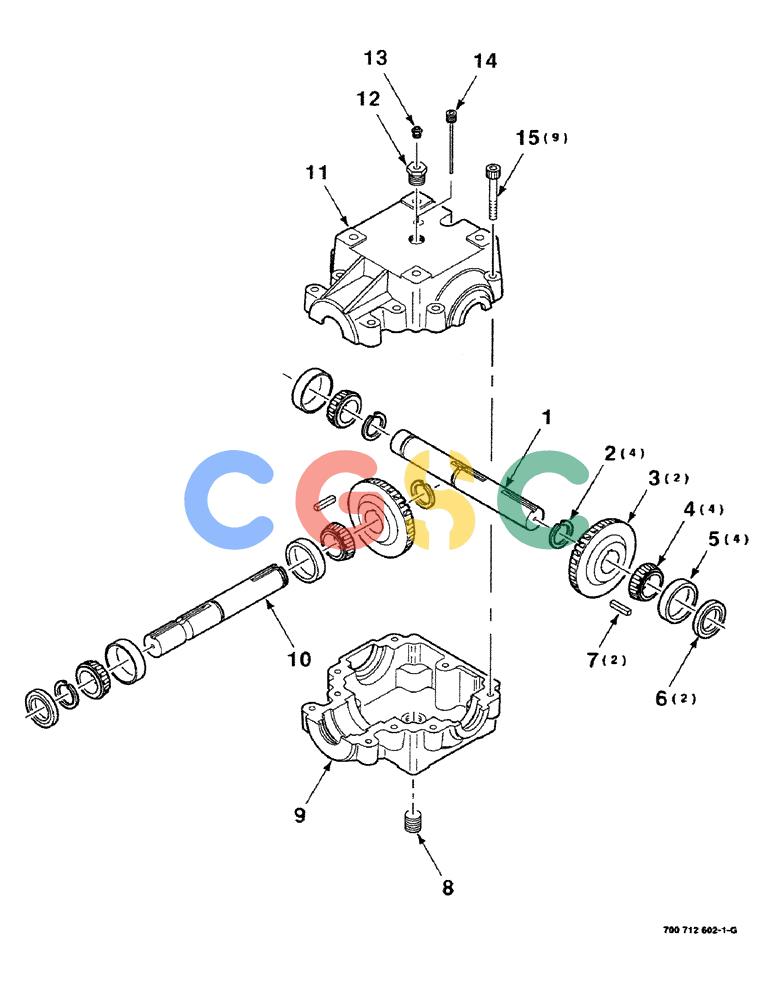

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (2-14) - GEARBOX ASSEMBLY, (700712602 GEARBOX ASSEMBLY COMPLETE) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700712603
|
[1] |
SHAFT
|
CAS
- cross
|
| 2. |
700712608
|
[4] |
OIL SEAL
|
CAS
RING - retaining
|
| 3. |
700712610
|
[2] |
GEAR
|
CAS
- 21 tooth
|
| 4. |
757088
|
[4] |
CONE
|
CAS
- tapered bearing Superseded by part number: 86576984
|
| 5. |
ST991
|
[4] |
BEARING CUP
|
IH
CUP - tapered bearing Superseded by part number: 116210
|
| 6. |
757153
|
[2] |
SEAL
|
CAS
Superseded by part number: 701519
|
| 7. |
1707058
|
[2] |
KEY
|
CAS
1/4 x 1/4 x 1.20 KEY - special
|
| 8. |
746586
|
[1] |
PLUG
|
HFI
1/2-14 NPT HEX CSK PIPE PLUG Superseded by part number: 86642423
|
| 9. |
700712607
|
[1] |
HOUSING
|
CAS
CASTING - tapped holes Superseded by part number: 700725503, 700725334, 700725502
|
| 10. |
700712605
|
[1] |
SHAFT
|
CAS
- pinion
|
| 11. |
700712606
|
[1] |
HOUSING
|
CAS
CASTING - thru holes Superseded by part number: 700725502, 700725503, 700725334
|
| 12. |
846642
|
[1] |
BUSHING
|
CAS
- reducer
|
| 13. |
700710818
|
[1] |
VALVE
|
CAS
PRESSURE RELIEF - 5 PSI
|
| 14. |
700710819
|
[1] |
DIPSTICK
|
CAS
|
| 15. |
701367
|
[9] |
HEX SOC SCREW,3/8"-16 x 2 1/4"
|
CAS
3/8-16 x 2-1/4 HSHCS Superseded by part number: 61-636
|
