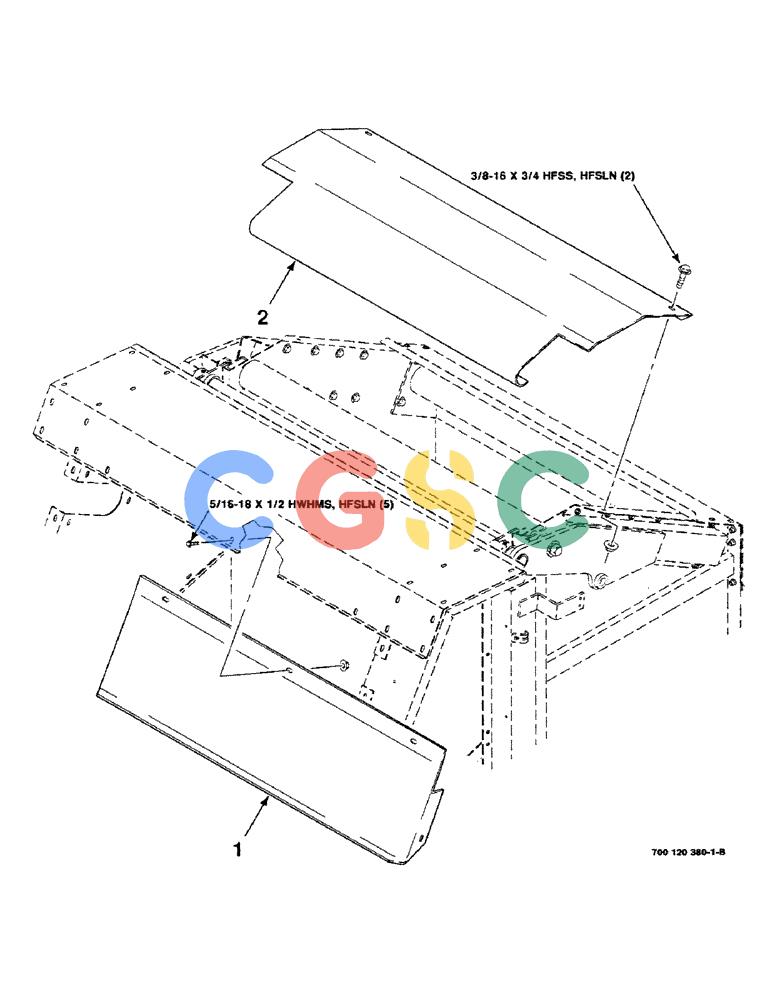

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (7-05) - SHIELDS ASSEMBLY (TOP) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
390 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700120547
|
[1] |
SHIELD
|
HFI
- front Superseded by part number: 700131814
|
| 2. |
700120554
|
[1] |
SHIELD
|
HFI
- roller, top
|
| . . |
7883317
|
[5] |
SCREW,Hex Washer, 5/16" - 18 x 1/2"
|
CAS
5/16-18 x 1/2 HWHMS Superseded by part number: 256873
|
| . . |
7703432
|
[2] |
BOLT,Hex, Serr, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HFSS Superseded by part number: 255918
|
| . . |
231-5145
|
[5] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
5/16-18 HFSLN Superseded by part number: 72187067, 145458
|
| . . |
704247
|
[2] |
NUT
|
CAS
3/8-16 HFSLN Superseded by part number: 231-5146, 231-5146, 280736, 231-5146, 280736, 692965, 231-5146, 280736, 692965, 87362
|
