斗山零件查询MAIN PIPING(1) - PUMP DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
310 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

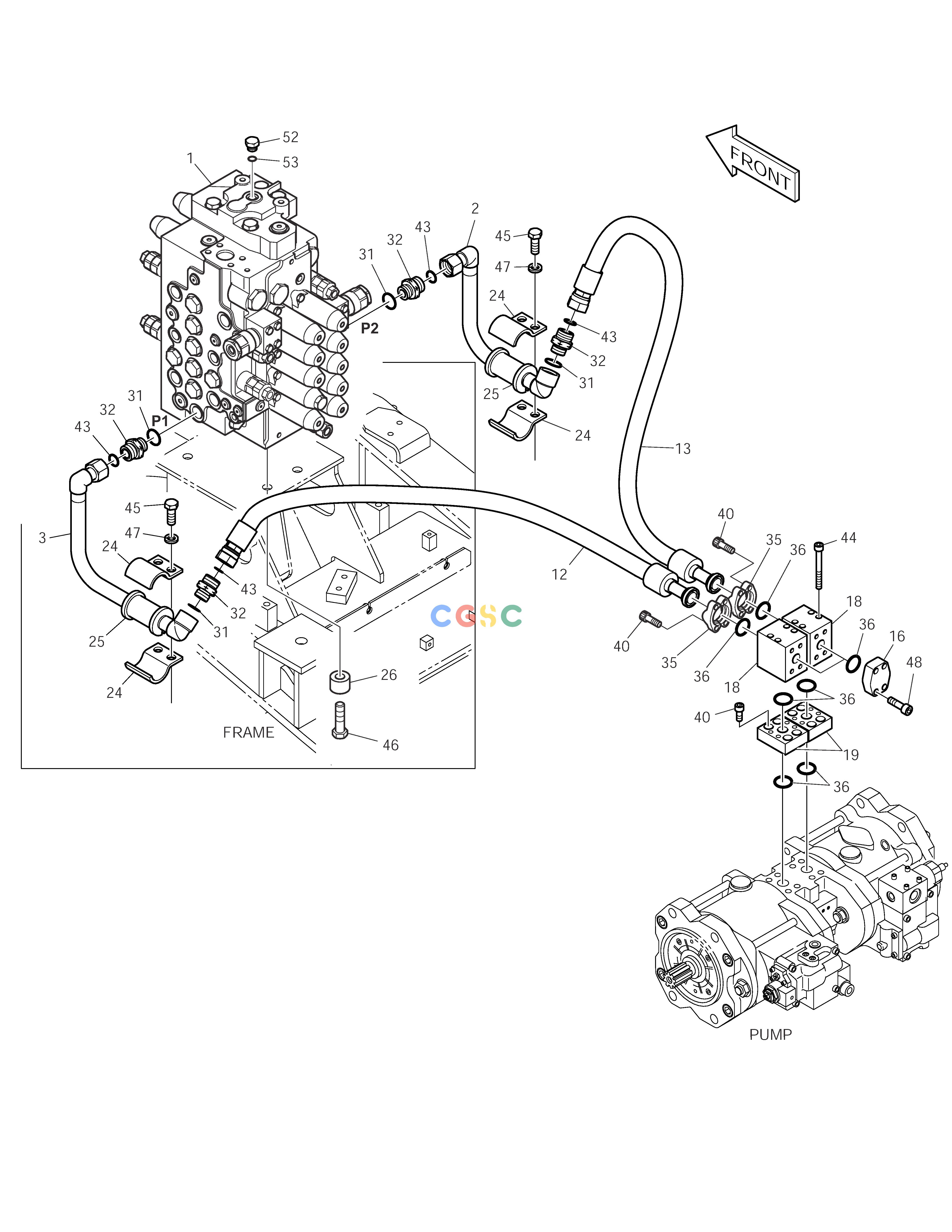

K1016140G
|
[-] |
MAIN PIPING
|
|
| 1. |
420-00465B
|
[1] |
VALVE;CONTROL
|
|
| 12. |
DS2016112
|
[1] |
HOSE
|
|
| 13. |
DS2016113
|
[1] |
HOSE
|
|
| 16. |
2181-2157D1
|
[2] |
FLANGE,COVER
|
|
| 18. |
K1016115
|
[2] |
BLOCK
|
|
| 19. |
K1016117
|
[2] |
BLOCK;SPACER
|
|
| 2. |
K1016334A
|
[1] |
PIPE
|
|
| 24. |
124-00302
|
[4] |
CLAMP;PIPE
|
|
| 25. |
161-00574
|
[2] |
RUBBER
|
|
| 26. |
114-00425
|
[4] |
SPACER
|
|
| 3. |
K1016335
|
[1] |
PIPE
|
K1016335A
|
| 3. |
K1016335A
|
[1] |
PIPE
|
|
| 31. |
S8000241
|
[4] |
O-RING
|
|
| 32. |
2181-2627D1
|
[4] |
ADAPTER
|
|
| 35. |
2181-9079
|
[4] |
FLANGE
|
|
| 36. |
2180-1026D2
|
[8] |
O-RING
|
|
| 40. |
S2212066
|
[16] |
BOLT
|
|
| 43. |
S8030121
|
[4] |
O-RING
|
|
| 44. |
S2213466
|
[8] |
SOCKET-HEAD BOLT
|
|
| 45. |
S0562766
|
[4] |
BOLT
|
|
| 46. |
S0565466
|
[4] |
BOLT
|
|
| 47. |
S5102803
|
[4] |
WASHER
|
|
| 48. |
S2212366
|
[8] |
BOLT
|
|
| 52. |
2181-1950D2
|
[1] |
PLUG
|
|
| 53. |
S8000111
|
[1] |
O-RING
|
|
