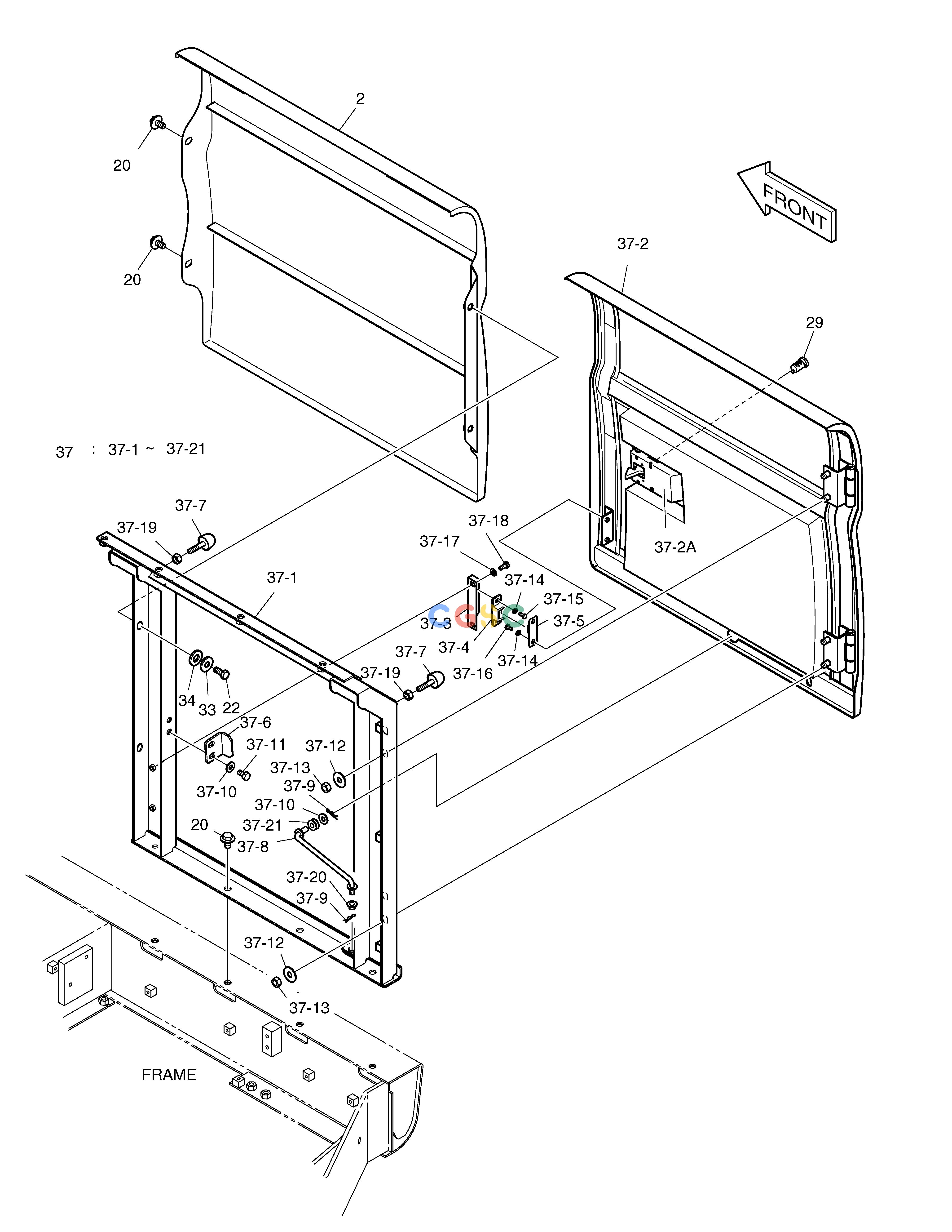

斗山零件查询SIDE DOOR - R.H DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
604 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1018020E
|
[-] |
COVER ASS'Y
|
|
| 2. |
K1018021
|
[1] |
COVER;TANK
|
|
| 20. |
DS0025015
|
[6] |
BOLT
|
|
| 22. |
S0515266
|
[2] |
BOLT
|
|
| 29. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 33. |
K1000892
|
[2] |
SPACER
|
|
| 34. |
K1000893
|
[2] |
RUBBER
|
|
| 37. |
K1018099A
|
[1] |
SIDE DOOR ASS'Y(R.H)
|
|
| 37-1. |
K1018100A
|
[1] |
SUPPORT
|
|
| 37-10. |
2114-1058D45
|
[3] |
. WASHER
|
|
| 37-11. |
S0511853
|
[2] |
BOLT
|
|
| 37-12. |
2114-1058D30
|
[4] |
. WASHER
|
|
| 37-13. |
S4012733
|
[4] |
NUT
|
|
| 37-14. |
S5010313
|
[4] |
WASHER
|
|
| 37-15. |
S0504553
|
[2] |
BOLT
|
|
| 37-16. |
S0504453
|
[2] |
BOLT
|
|
| 37-17. |
S5010513
|
[2] |
WASHER
|
|
| 37-18. |
S0508753
|
[2] |
BOLT M8X1.25X18
|
|
| 37-19. |
S4012633
|
[2] |
NUT
|
|
| 37-2. |
K1013480A
|
[1] |
DOOR;SIDE(R.H)
|
|
| 37-20. |
K1000602
|
[1] |
. BUSHING
|
|
| 37-21. |
K1008335
|
[1] |
. BUSHING
|
|
| 37-2A. |
125-00035A
|
[1] |
LOCK
|
|
| 37-3. |
2116-1522
|
[1] |
PLATE
|
|
| 37-4. |
2161-9052
|
[1] |
STOPPER;PLATE
|
|
| 37-5. |
2161-9053
|
[1] |
STOPPER;RUBBER
|
|
| 37-6. |
621-02726A
|
[1] |
. PLATE,LOCK
|
|
| 37-7. |
K1001260A
|
[2] |
STOPPER
|
|
| 37-8. |
623-00075B
|
[1] |
. STAY ASSY(L.H)
|
|
| 37-9. |
2705-9002
|
[2] |
PIN
|
|
