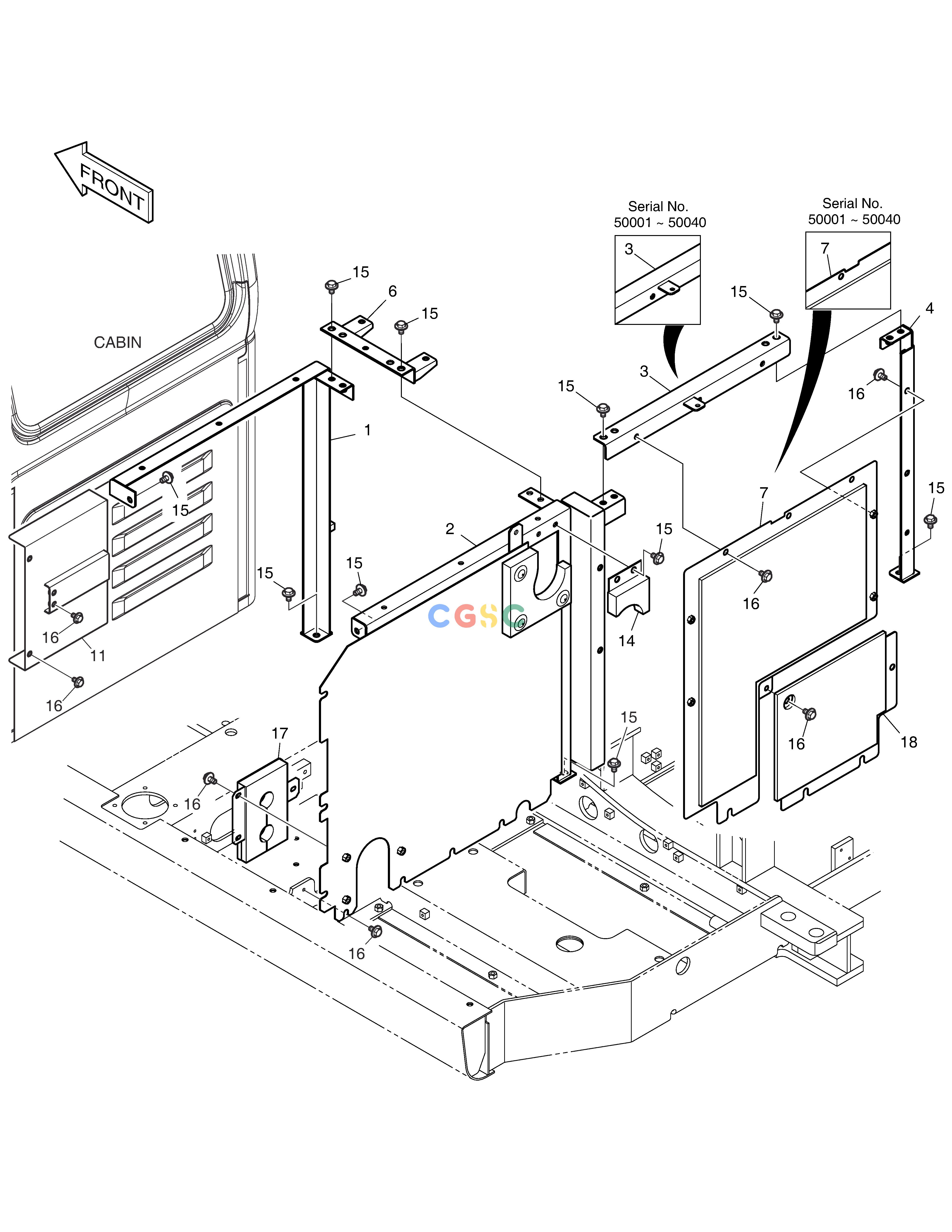

斗山零件查询SUPPORT & BAFFLE(1) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
911 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016475E
|
[-] |
SUPPORT & BAFFLE
|
|
| 1. |
K1017021A
|
[1] |
SUPPORT
|
|
| 11. |
621-02981E
|
[1] |
BOX;AIRCON DUCT
|
|
| 14. |
K1017034A
|
[1] |
COVER;BAFFLE
|
|
| 15. |
DS0025015
|
[15] |
BOLT
|
|
| 16. |
DS0025014
|
[26] |
BOLT
|
|
| 17. |
K1029035
|
[1] |
COVER;BAFFLE
|
|
| 18. |
K1033243
|
[1] |
COVER;BAFFLE
|
|
| 2. |
K1017022C
|
[1] |
SUPPORT
|
|
| 3. |
K1017023A
|
[1] |
SUPPORT
|
|
| 3. |
K1017023B
|
[1] |
SUPPORT
|
|
| 4. |
K1017024A
|
[1] |
SUPPORT
|
|
| 6. |
K1017026A
|
[1] |
SUPPORT
|
|
| 7. |
K1017027A
|
[1] |
COVER;BAFFLE
|
|
| 7. |
K1017027B
|
[1] |
COVER;BAFFLE
|
|
