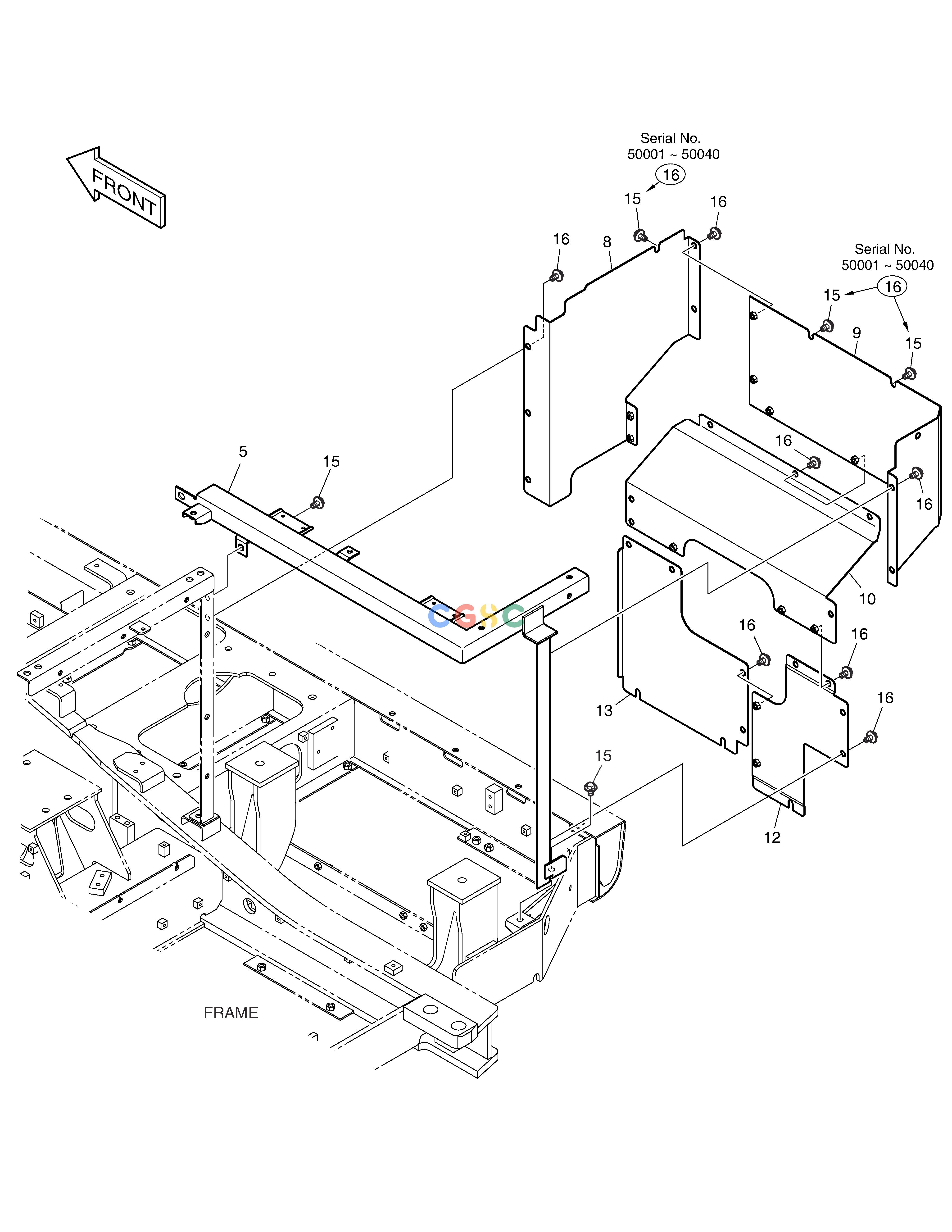

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1016475G | [-] | SUPPORT & BAFFLE | |
| 10. | K1017030B | [1] | COVER;BAFFLE | |
| 12. | K1017032C | [1] | COVER;BAFFLE | |
| 13. | K1017033B | [1] | COVER;BAFFLE | |
| 15. | DS0025015 | [3] | BOLT | |
| 15. | DS0025015 | [6] | BOLT | |
| 16. | DS0025014 | [28] | BOLT | |
| 16. | DS0025014 | [25] | BOLT | |
| 5. | K1017025B | [1] | SUPPORT | K1017025C |
| 5. | K1017025C | [1] | SUPPORT | |
| 8. | K1017028B | [1] | COVER;BAFFLE | |
| 9. | K1017029B | [1] | COVER;BAFFLE |
