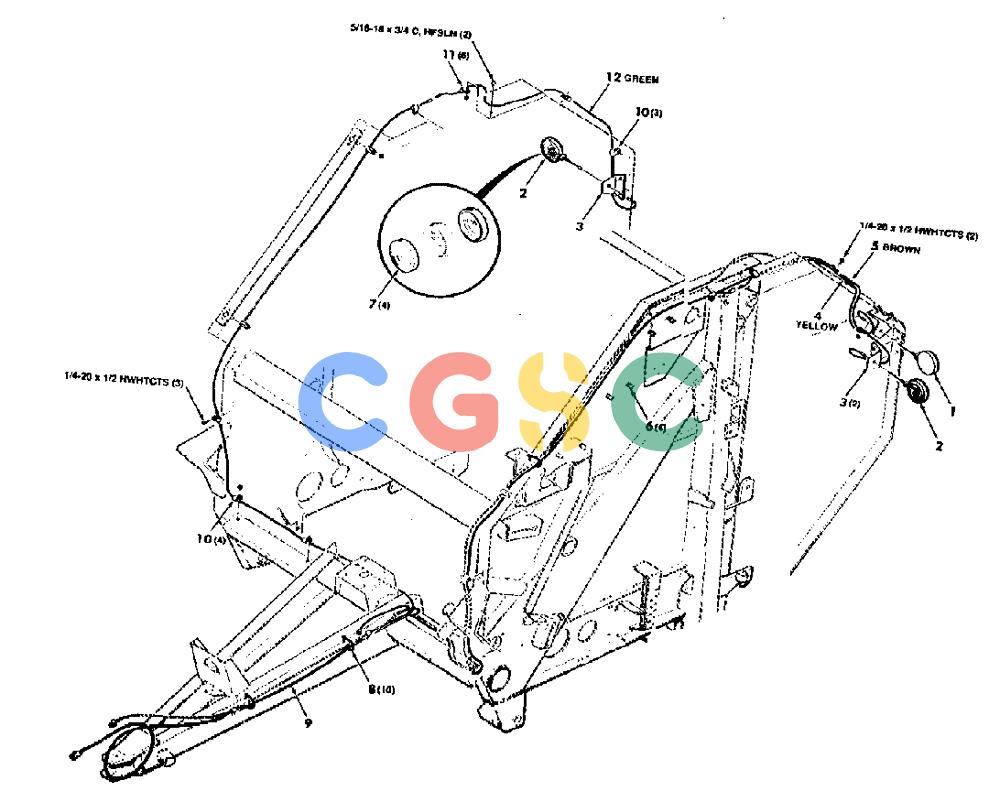

凯斯零件查询(8440) - CASE IH ROUND BALER (1/88-12/90) (28[1]) - LIGHT, WARNING, KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50456
|
[1] |
LIGHT (WARNING) KIT COMPLETE
|
|
| 1. |
700706634
|
[1] |
STOP LIGHT
|
IH
LIGHT - stop
|
| 2. |
700708036
|
[2] |
SIDE LAMP ASSY
|
IH
LIGHT - flasher Superseded by part number: 130609
|
| 3. |
700117560
|
[3] |
ANGLE
|
HFI
- mounting, light
|
| 4. |
700705121
|
[1] |
WIRE
|
HFI
- electric
|
| 5. |
700708074
|
[1] |
ELECTRICAL WIRE
|
HFI
WIRE - electric
|
| 6. |
722496
|
[4] |
CLIP
|
HFI
- line
|
| 7. |
722019
|
[4] |
LENS
|
CAS
- light, flasher
|
| 8. |
722470
|
[10] |
MOUNTING CLIP
|
CAS
TIE - nylon Superseded by part number: 529070
|
| 9. |
700707926
|
[1] |
HARNESS
|
CAS
- wire
|
| 10. |
751628
|
[7] |
CLAMP
|
CAS
- line Superseded by part number: 675162
|
| 11. |
45732
|
[6] |
|
CAS
- line
|
| 12. |
700708075
|
[1] |
ELECTRICAL WIRE
|
CAS
WIRE - electric
|
| . . |
7703499
|
[3] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
5/16-18 x 3/4C Superseded by part number: 87872
|
| . . |
701607
|
[5] |
BRACKET
|
CAS
1/4-20 x 1/2 HWHTCTS Superseded by part number: 281-1478, 281-1478, NLS
|
