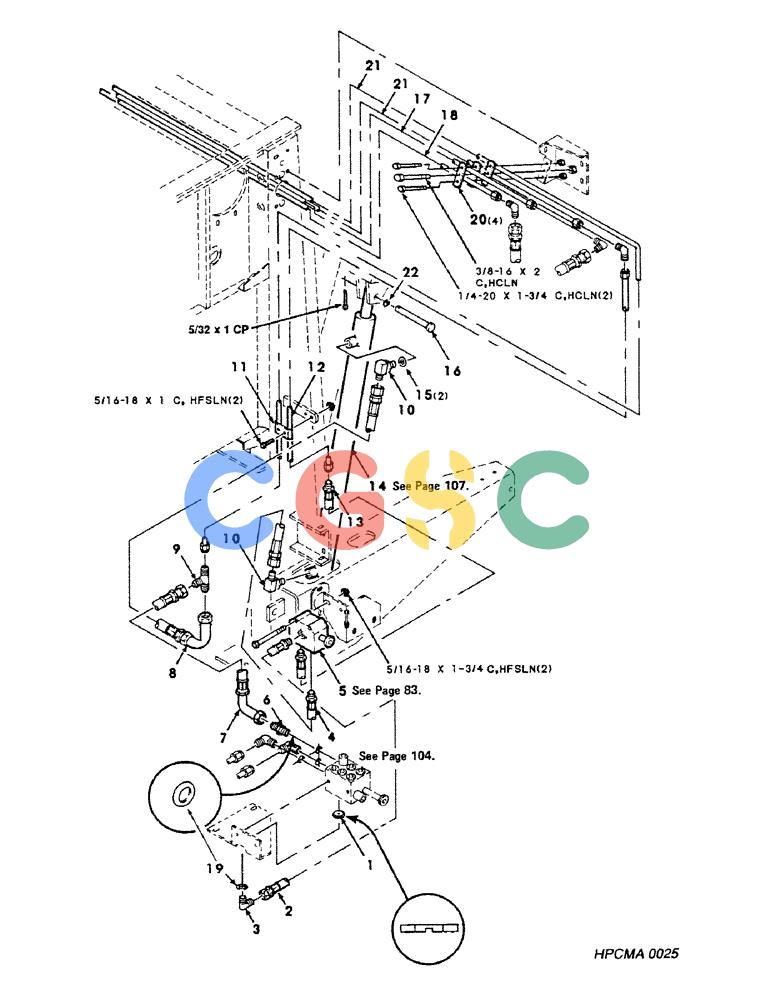

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (088) - HYDRAULIC, TAILGATE, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
765 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707787
|
[1] |
VENT
|
CAS
Orifice Superseded by part number: 937201R1
|
| 2. |
7073315
|
[1] |
CYLINDER
|
CAS
Hose - Hydraulic
|
| 3. |
846329
|
[1] |
ELBOW
|
CAS
with O-Ring
|
| 4. |
700707274
|
[1] |
HOSE
|
CAS
- Hydraulic
|
| 5. |
700704264
|
[1] |
VALVE
|
CAS
- Shutoff
|
| 6. |
846337
|
[1] |
ROD, CONNECTING
|
CAS
Connector (Includes O-Ring) Superseded by part number: 128818
|
| 7. |
700707280
|
[1] |
HOSE
|
CAS
- Hydraulic
|
| 8. |
700708715
|
[1] |
HOSE ASSY.
|
CAS
Hose - Hydraulic
|
| 9. |
746032
|
[1] |
TEE
|
CAS
- Male
|
| 10. |
7746555
|
[2] |
ELBOW
|
CAS
90 Degree Elbow (Includes O-Ring) Superseded by part number: 76344
|
| 11. |
700116034
|
[1] |
CLAMP
|
HFI
- Line
|
| 12. |
700708717
|
[1] |
TUBE,12.7 mm OD, 856 mm Length
|
CAS
Line - Hydraulic
|
| 13. |
700708713
|
[1] |
HOSE ASSY.
|
CAS
Hose - Hydraulic
|
| 14. |
700707783
|
[1] |
CYLINDER
|
HFI
- Hydraulic, Tailgate
|
| 15. |
738468
|
[2] |
O-RING
|
IH
|
| 16. |
700708068
|
[3] |
CLEVIS PIN,15.77mm OD x 68.66mm L
|
IH
|
| 17. |
700707270
|
[1] |
LINE
|
CAS
- Hydraulic
|
| 18. |
700707269
|
[1] |
LINE
|
HFI
- Hydraulic
|
| 19. |
279706
|
[2] |
O-RING
|
PA
|
| 20. |
700118602
|
[4] |
STRAP
|
HFI
- Line
|
| 21. |
700708718
|
[2] |
TUBE,12.7 mm OD, 1527, 880 mm Length
|
CAS
Line - Hydraulic
|
| 22. |
495-11066
|
[1] |
WASHER,5/8", SAE
|
CAS
5/8 Narrow Plain Washer Superseded by part number: 87365
|
| . . |
703140
|
[2] |
BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5
|
CAS
1/4-20 x 1-3/4 C Superseded by part number: 413-428, 413-428, NLS
|
| . . |
703579
|
[2] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd
|
CAS
5/16-18 x 1 C
|
| . . |
413-528
|
[2] |
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
|
CAS
5/16-18 x 1-3/4 C Superseded by part number: 9707515, 72187200
|
| . . |
7701634
|
[1] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
CAS
3/8-16 x 2 C Superseded by part number: 88436
|
| . . |
88902
|
[1] |
NUT,3/8"-16
|
NH
3/8-16 HCLN
|
| . . |
430-4214
|
[2] |
1/4-20 HCLN
|
|
