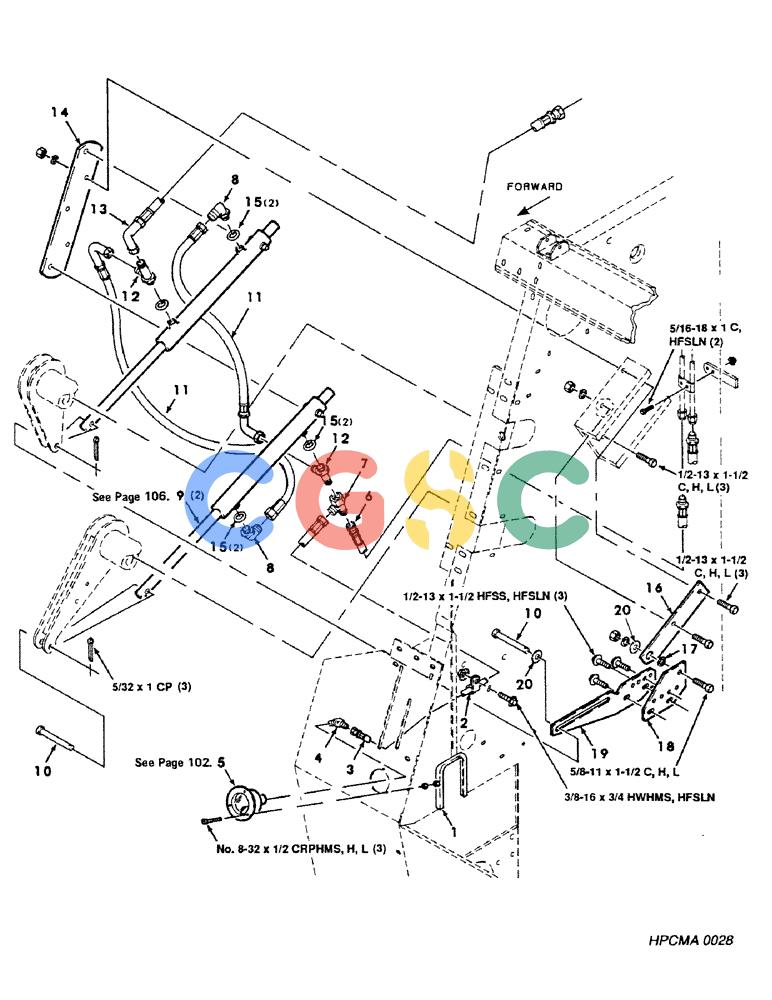

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (090) - HYDRAULIC, TENSION CONTROL, RIGHT, ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700117735
|
[1] |
ADHESIVE STRIP
|
CAS
Trim - Rubber
|
| 2. |
751487
|
[1] |
CLAMP
|
CAS
- Line Superseded by part number: 86632595
|
| 3. |
1714633
|
[1] |
HOSE ASSY.
|
CAS
Hose - Hydraulic Superseded by part number: 812382C1
|
| 4. |
8046666
|
[1] |
FITTING
|
CAS
Elbow Connector - 90 Degree Superseded by part number: 9402903
|
| 5. |
700707986
|
[1] |
GAUGE
|
CAS
- Pressure Superseded by part number: 86511189, 700119686, 700722353
|
| 6. |
700707277
|
[1] |
HOSE
|
CAS
- Hydraulic
|
| 7. |
700701550
|
[1] |
3 WAY CONNECTION
|
CAS
Tee Superseded by part number: 79054269
|
| 8. |
7746555
|
[2] |
ELBOW
|
CAS
90 Degree Elbow (Includes O-Ring) Superseded by part number: 76344
|
| 9. |
700707784
|
[2] |
CYLINDER
|
CAS
- Hydraulic
|
| 10. |
700708068
|
[2] |
CLEVIS PIN,15.77mm OD x 68.66mm L
|
IH
|
| 11. |
700707286
|
[2] |
HOSE
|
CAS
- Hydraulic
|
| 12. |
8046658
|
[2] |
TEE
|
CAS
(Includes O-Ring) Superseded by part number: 86513020
|
| 13. |
700707279
|
[1] |
HOSE
|
HFI
- Hydraulic
|
| 14. |
700116031
|
[1] |
PLATE
|
HFI
- Tie
|
| 15. |
738468
|
[4] |
O-RING
|
IH
|
| 16. |
700118821
|
[1] |
PLATE
|
HFI
|
| 17. |
700118822
|
[1] |
SPACER
|
CAS
|
| 18. |
700118820
|
[1] |
PLATE
|
HFI
|
| 19. |
700118819
|
[1] |
PLATE
|
HFI
|
| 20. |
705632
|
[2] |
WASHER
|
CAS
5/8 Narrow Plain Washer Superseded by part number: 495-11066, 495-11066, 87365
|
| . . |
703579
|
[2] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd
|
CAS
5/16-18 x 1 C
|
| . . |
701235
|
[6] |
BOLT,1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 x 1-1/2 C
|
| . . |
7701758
|
[1] |
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5
|
CAS
5/8-11 x 1-1/2 C Superseded by part number: 88062
|
| . . |
7701592
|
[3] |
FLANGE BOLT,Hex Serr, 1/2" - 13 x 1"
|
CAS
1/2-13 x 1 HFSS Superseded by part number: 30944
|
| . . |
7883374
|
[1] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 255918
|
| . . |
700705185
|
[3] |
SCREW,Cross Pan Hd, #8-32 x 1/2"
|
CAS
No. 8-32 x 1/2 CRPHMS Superseded by part number: 81822758
|
