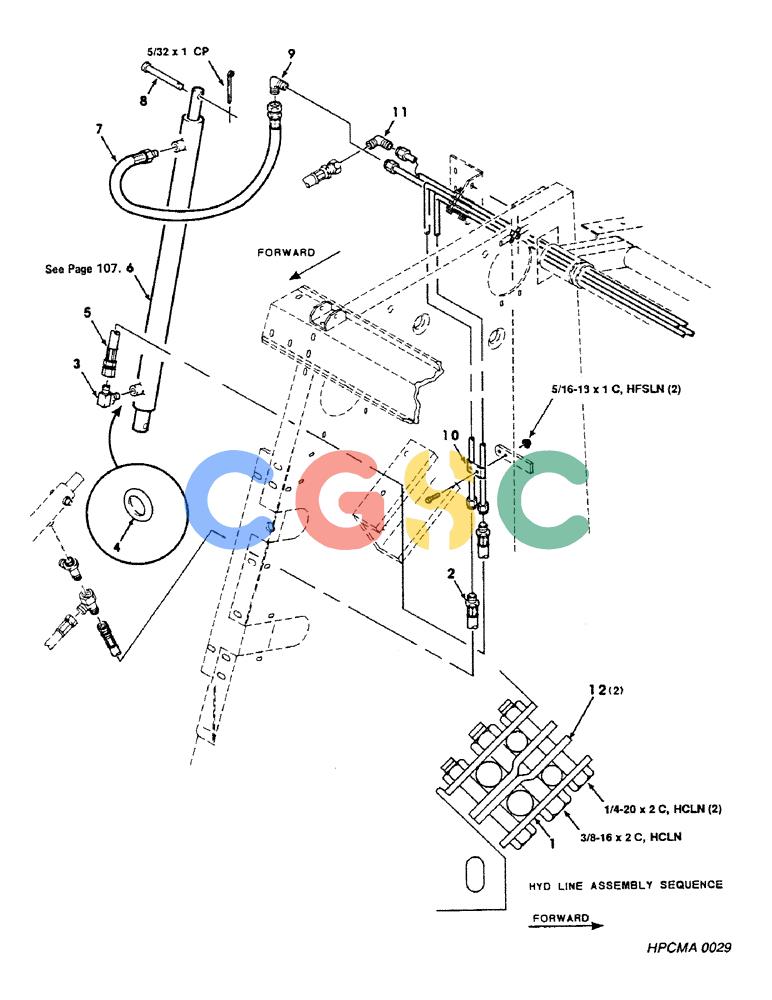

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (092) - HYDRAULIC, TAILGATE, RIGHT, ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
293 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700118602
|
[3] |
STRAP
|
HFI
- Line
|
| 2. |
700707277
|
[1] |
HOSE
|
CAS
- Hydraulic
|
| 3. |
7746555
|
[2] |
ELBOW
|
CAS
90 Degree Elbow (Includes O-Ring) Superseded by part number: 76344
|
| 4. |
738468
|
[1] |
O-RING
|
IH
|
| 5. |
700708712
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 560.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 560.00 mm, SAE 100R2
|
| 6. |
700707783
|
[1] |
CYLINDER
|
HFI
- Hydraulic, Tailgate
|
| 7. |
700708714
|
[1] |
HOSE ASSY.
|
CAS
Hose - Hydraulic
|
| 8. |
700708068
|
[1] |
CLEVIS PIN,15.77mm OD x 68.66mm L
|
IH
|
| 9. |
7046626
|
[2] |
ELBOW
|
CAS
- 90 Degree Superseded by part number: 216791
|
| 10. |
700116034
|
[1] |
CLAMP
|
HFI
- Line
|
| 11. |
791038
|
[1] |
ELBOW
|
CAS
- 90 Degree Superseded by part number: 241074
|
| 12. |
700118605
|
[2] |
STRAP
|
HFI
|
| . . |
7701485
|
[2] |
BOLT,Hex, 1/4" - 20 x 2", Gr 5
|
CAS
1/4-20 x 2 C Superseded by part number: 87404
|
| . . |
703579
|
[2] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd
|
CAS
5/16-18 x 1 C
|
| . . |
7700073
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5
|
CAS
3/8-16 x 2 C Superseded by part number: 280661
|
| . . |
704635
|
[1] |
NUT
|
CAS
3/8-16 HCLN Superseded by part number: 230-4216, 230-4216, 88902
|
