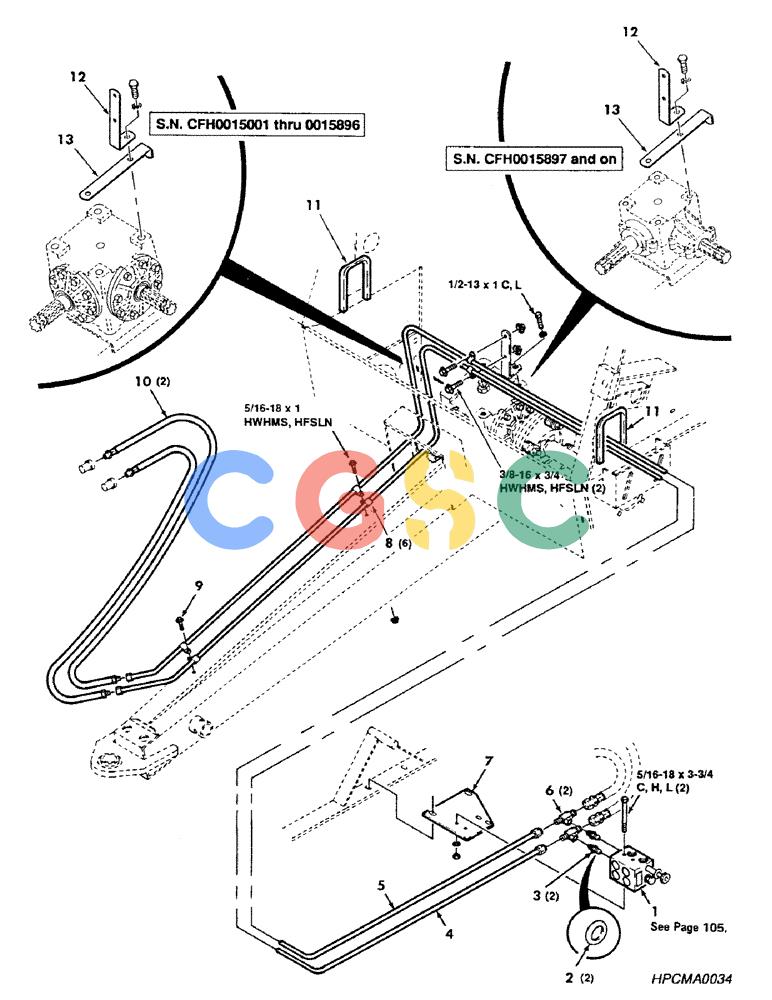

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (094) - HYDRAULIC ASSEMBLY, PRIMARY TO VALVE WITHOUT KICKER EJECTOR, SERIAL NUMBER CFH0015275 AND ON Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700708923
|
[1] |
VALVE
|
CAS
- Tensioner, Bale
|
| 2. |
237-6008
|
[2] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
Superseded by part number: 128825
|
| 3. |
846337
|
[2] |
ROD, CONNECTING
|
CAS
Flared Connector (Includes O-Ring) Superseded by part number: 128818
|
| 4. |
700708920
|
[1] |
TUBE
|
CAS
Line - Hydraulic
|
| 5. |
700708919
|
[1] |
TUBE
|
CAS
Line - Hydraulic
|
| 6. |
700701752
|
[2] |
3 WAY CONNECTION
|
CAS
Tee - Swivel, Branch Superseded by part number: 86513015
|
| 7. |
700118983
|
[1] |
SUPPORT
|
HFI
- Valve
|
| 8. |
751487
|
[6] |
CLAMP
|
CAS
- Line Superseded by part number: 86632595
|
| 9. |
7702012
|
[1] |
SELF-TAP SCREW,3/8" - 16 x 1"
|
CAS
3/8-16 x 1 HWHTCTS
|
| 10. |
7072135
|
[2] |
HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2
|
IH
Hose - Hydraulic
|
| 11. |
700117735
|
[2] |
ADHESIVE STRIP
|
CAS
Trim - Rubber
|
| 12. |
700116032
|
[1] |
STRAP
|
HFI
- Support, Line (S.N. CFH0015765 thru 0015896)
|
| 13. |
700121773
|
[1] |
SUPPORT
|
HFI
(S.N. CFH0015765 thru 0015896)
|
| 13. |
700126397
|
[1] |
SUPPORT
|
HFI
(S.N. CFH0015897 and on)
|
| . . |
873018
|
[2] |
BOLT,5/16" - 18 x 3 3/4", Gr 5
|
HFI
5/16-18 x 3-3/4 C
|
| . . |
703959
|
[1] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
|
CAS
1/2-13 x 1 C
|
| . . |
7771769
|
[1] |
BOLT
|
CAS
1/2-13 x 3/4 C Superseded by part number: 9627879
|
| . . |
7883333
|
[1] |
BOLT,Hex, 5/16" - 18 x 1", Gr 120M
|
CAS
5/16-18 x 1 HWHMS Superseded by part number: 121-108
|
| . . |
7883374
|
[2] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 255918
|
