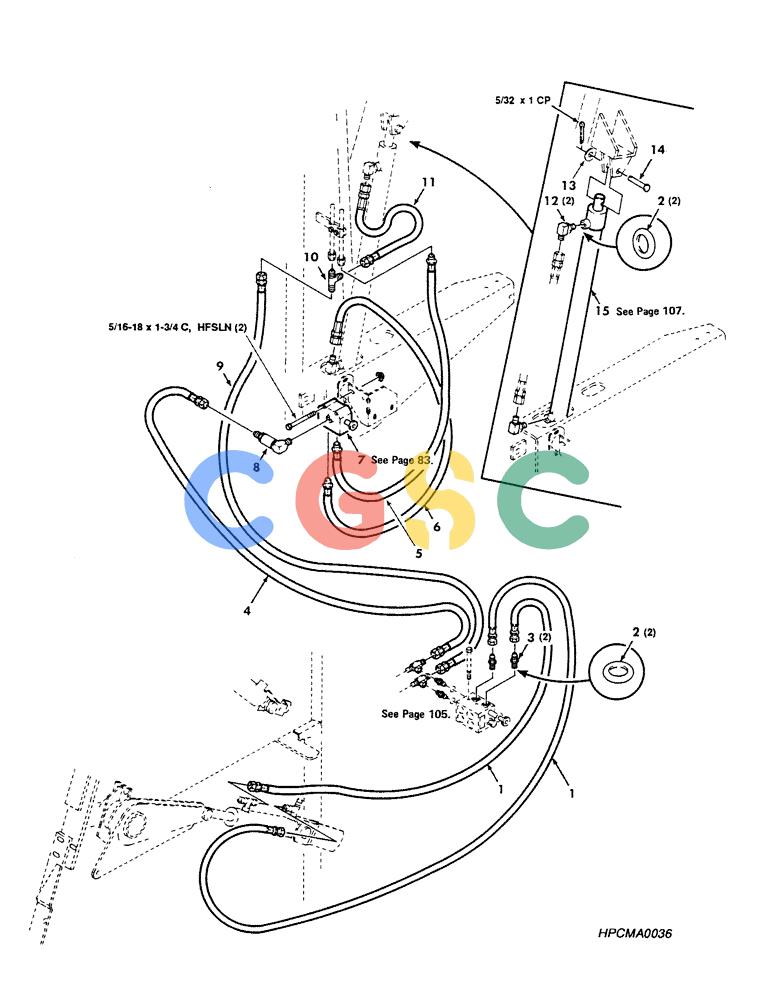

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (098) - HYDRAULIC, TAILGATE, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
267 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707445
|
[2] |
HOSE
|
CAS
- Hydraulic Superseded by part number: 1270453C1
|
| 2. |
738468
|
[4] |
O-RING
|
IH
|
| 3. |
846634
|
[2] |
COUPLING, BREAK AWAY
|
CAS
Connector Flared (Includes O-Ring) Superseded by part number: 76350
|
| 4. |
700705745
|
[1] |
FLEXIBLE HOSE
|
CAS
Hose - Hydraulic
|
| 5. |
700708929
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 1040.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 1040.00 mm, SAE 100R2
|
| 6. |
700708927
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 850.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 850.00 mm, SAE 100R2
|
| 7. |
700704264
|
[1] |
VALVE
|
CAS
- Shutoff
|
| 8. |
700119132
|
[1] |
ORIFICE
|
CAS
Assembly
|
| 9. |
700708928
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 970.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 970.00 mm, SAE 100R2
|
| 10. |
746032
|
[1] |
TEE
|
CAS
- Flared
|
| 11. |
700708926
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 600.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 600.00 mm, SAE 100R2
|
| 12. |
7746555
|
[2] |
ELBOW
|
CAS
90 Degree Elbow (Includes O-Ring) Superseded by part number: 76344
|
| 13. |
705582
|
[1] |
WASHER
|
CAS
5/8 Hardened Plain Washer Superseded by part number: 396-21066, 396-21066, NLS
|
| 14. |
700708068
|
[1] |
CLEVIS PIN,15.77mm OD x 68.66mm L
|
IH
5/8 x 2-1/2
|
| 15. |
700707783
|
[1] |
CYLINDER
|
HFI
- Hydraulic, Tailgate
|
| . . |
7703838
|
[2] |
BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5
|
CAS
5/16-18 x 1-3/4 C Superseded by part number: 413-528, 413-528, NLS
|
