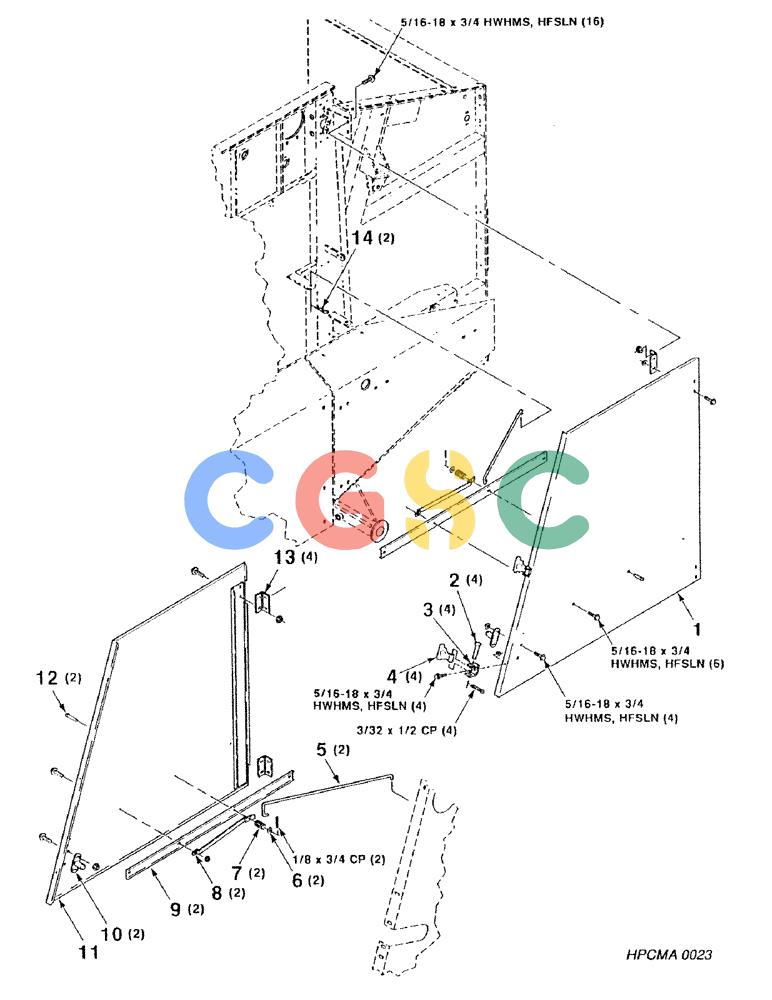

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (056) - SHIELDS, UPPER SIDE, ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
798 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700117052
|
[1] |
SHIELD
|
CAS
- Left
|
| 2. |
63784
|
[4] |
CLEVIS PIN
|
IH
1/4 x 1-1/2 Clevis Pin Superseded by part number: 141-13
|
| 3. |
776674
|
[4] |
SUPPORT
|
L
Base - Anchor
|
| 4. |
776682
|
[4] |
HOOK
|
CAS
- Rubber Superseded by part number: 86975220
|
| 5. |
700117067
|
[2] |
SUPPORT
|
CAS
Rod - Detent
|
| 6. |
700709602
|
[2] |
WASHER,5/16"
|
CAS
5/16 Wide Plain Washer Superseded by part number: 495-61034
|
| 7. |
754606
|
[2] |
SPRING
|
CAS
- Compression
|
| 8. |
700117061
|
[2] |
LATCH
|
CAS
- Detent
|
| 9. |
700117066
|
[2] |
CHANNEL
|
CAS
- Reinforcement
|
| 10. |
700117058
|
[2] |
SUPPORT
|
CAS
- Pin
|
| 11. |
700117062
|
[1] |
SHIELD
|
CAS
- Right
|
| 12. |
763565
|
[2] |
PIN
|
CAS
5/16 x 2 Clevis Pin Superseded by part number: 439-5532
|
| 13. |
700707701
|
[4] |
HINGE
|
CAS
- Butt
|
| 14. |
S120261
|
[2] |
PIN
|
CAS
Hairpin Cotter
|
| . . |
7883325
|
[28] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 x 3/4 HWHMS Superseded by part number: 121-115
|
