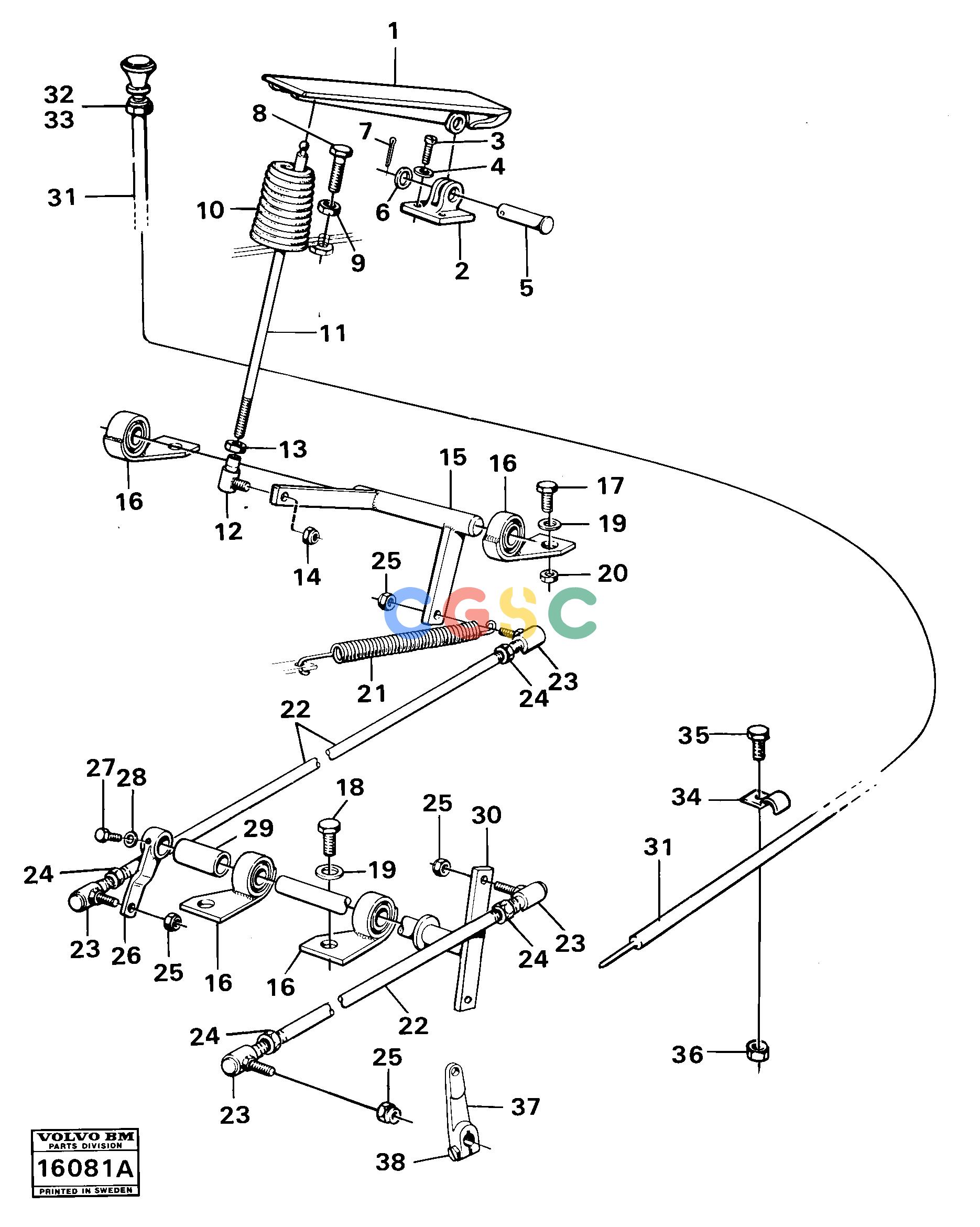

沃尔沃零件查询861 Regulator control861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE191240
|
[0001] |
Bolt
|
|
| 6. |
VOE955896
|
[0001] |
Plain washer
|
|
| 7. |
VOE13907856
|
[0001] |
Cotter Pin
|
|
| 8. |
VOE955530
|
[0001] |
Hexagon screw
|
|
| 9. |
VOE955826
|
[0001] |
Hexagon nut
|
|
| 1. |
VOE1598173
|
[0001] |
Accelerator pedal
|
|
| 10. |
VOE659802
|
[0001] |
Rubber bellows
|
|
| 11. |
VOE6643219
|
[1] |
Control Rod
|
|
| 12. |
VOE959573
|
[1] |
Angle ball joint
|
|
| |
|
|
None
|
SER NO - 60014
|
| |
VOE959573
|
[1] |
Angle ball joint
|
SER NO 60015 -
|
| 13. |
VOE13955846
|
[1] |
Nut
|
|
| 14. |
VOE950372
|
[1] |
Lock nut
|
|
| 15. |
VOE6626848
|
[1] |
Link
|
|
| 16. |
VOE6626850
|
[4] |
Brg Arrangement
|
|
| 17. |
VOE955561
|
[2] |
Hexagon screw
|
|
| 18. |
VOE955560
|
[2] |
Hexagon screw
|
|
| 19. |
VOE955898
|
[4] |
Washer
|
|
| 2. |
VOE324714
|
[0001] |
Attaching bracket
|
|
| 20. |
VOE950356
|
[2] |
Lock nut
|
|
| 21. |
VOE11180052
|
[1] |
Spring
|
|
| 22. |
VOE4860057
|
[2] |
Bar
|
|
| 23. |
VOE959079
|
[4] |
Angle ball joint
|
SER NO - 60014
|
| |
VOE959079
|
[4] |
Angle ball joint
|
|
| |
|
|
None
|
SER NO 60015 -
|
| 24. |
VOE13955781
|
[4] |
Nut
|
|
| 25. |
VOE13949278
|
[4] |
Flange lock nut
|
|
| 26. |
VOE13954530
|
[1] |
Lever
|
|
| 27. |
VOE955656
|
[1] |
Hexagon screw
|
|
| 28. |
VOE13955894
|
[0001] |
Washer
|
|
| 29. |
VOE6626852
|
[0001] |
Spacer tube
|
|
| 3. |
VOE955514
|
[0002] |
Hexagon screw
|
|
| 30. |
VOE6645466
|
[0001] |
Link
|
|
| 31. |
VOE784751
|
[0001] |
Wire control
|
|
| 32. |
VOE976945
|
[0001] |
Washer
|
|
| 33. |
VOE940140
|
[0001] |
Hexagon nut
|
|
| 34. |
VOE7018365
|
[0001] |
Clamp
|
|
| 35. |
|
[0001] |
Bolt
|
SEE GROUP 23
|
| 36. |
|
[0001] |
Nut
|
SEE GROUP 23
|
| 37. |
VOE239317
|
[0001] |
Hand lever
|
MO 46982-
|
| 38. |
VOE13955272
|
[0001] |
Screw
|
|
| 4. |
VOE955893
|
[0002] |
Plain washer
|
|
