纽荷兰零件查询(F4DFE613J A004) - ENGINE - 84182025 (10.304.03) - ENGINE BREATHERS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
333 次

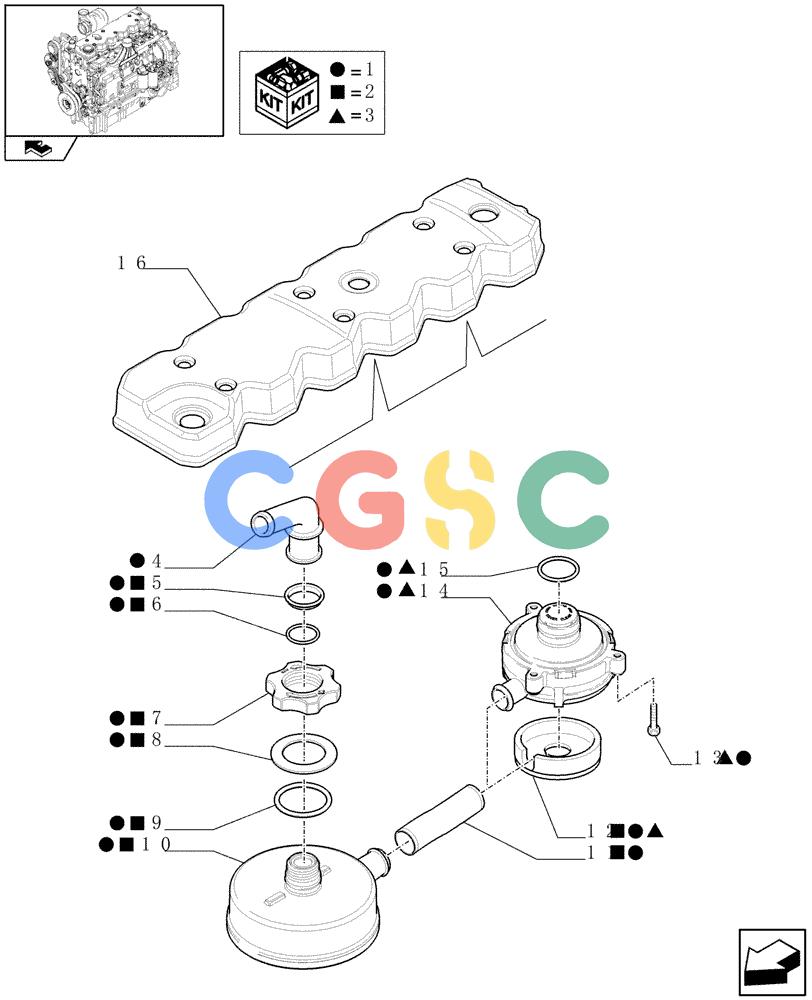

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2853826 | [1] | BREATHER | TORASSY Superseded by part number: 87307807, 84196302, 87304662 |
| 2. | 87304662 | [1] | BREATHER | BASASSY |
| 3. | 504153150 | [1] | VALVE | TORASSY Superseded by part number: 504371134 |
| 4. | 87307807 | [1] | ELBOW | BAS |
| 5. | 87312908 | [1] | O-RING | BAS |
| 6. | 87307640 | [1] | O-RING | BAS |
| 7. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 9. | 87304653 | [1] | O-RING | BAS |
| 13. | 87304660 | [3] | SCREW,M50 x 28mm | BAS Superseded by part number: 190003823819 |
| 14. | 84231666 | [1] | BREATHER | BASPre-filter Superseded by part number: 84196302 |
| 15. | 87304661 | [1] | O-RING | BAS |
| 16. | 2853857 | [1] | VALVE COVER | TORASSY |
