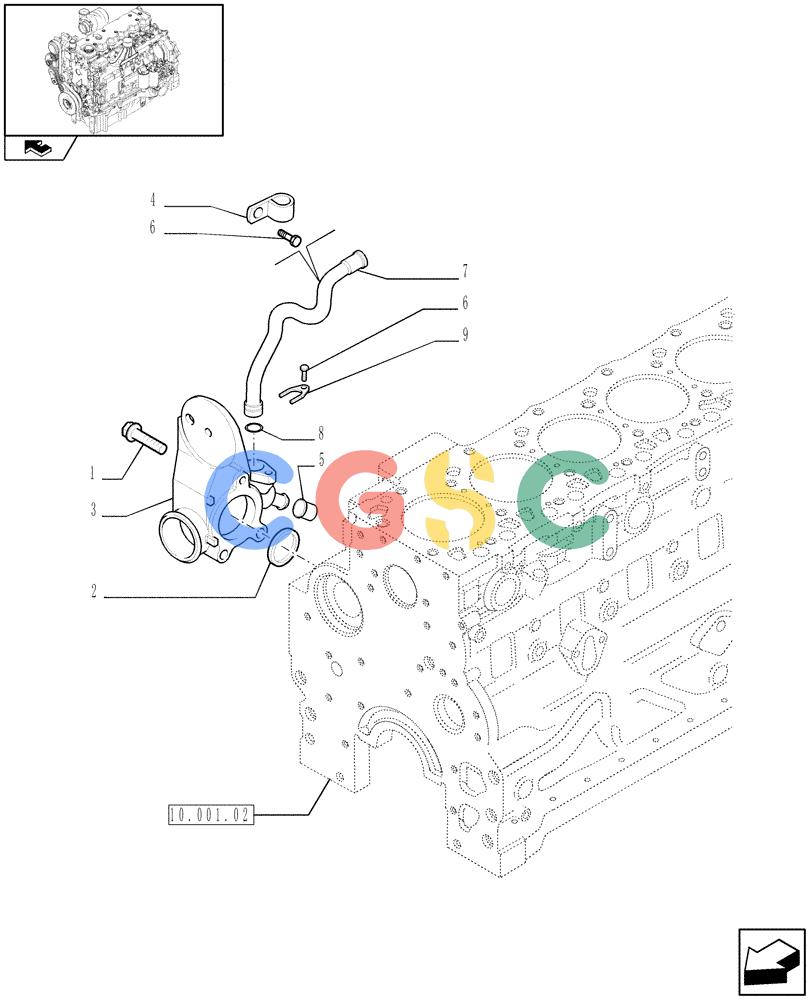

纽荷兰零件查询(F4DFE613J A004) - ENGINE - 84182025 (10.400.01[01]) - ENGINE COOLING SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
1025 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895174 | [3] | SCREW,Flg Hd, M10 x 1.5 x 65 | TOR Superseded by part number: 504085705 |
| 2. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 3. | 2859659 | [1] | ASSY | MANIFOLD |
| 4. | 2854845 | [1] | COLLAR CLAMP | TOR |
| 6. | 4895164 | [2] | SCREW,Hex, Flg Hd, M6 x 16 | TOR |
| 7. | 2854841 | [1] | TUBE | TOR |
| 8. | 2853563 | [1] | O-RING,20.29mm ID x 2.62mm | TOR Superseded by part number: 14457581 |
| 9. | 2853564 | [1] | BRACKET | TOR |
| 10. | 2854000 | [1] | SELF-TAP SCREW,Hex, M6 x 16mm | TOR |
