沃尔沃零件查询A25 VOLVO BM PedalVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
590 次

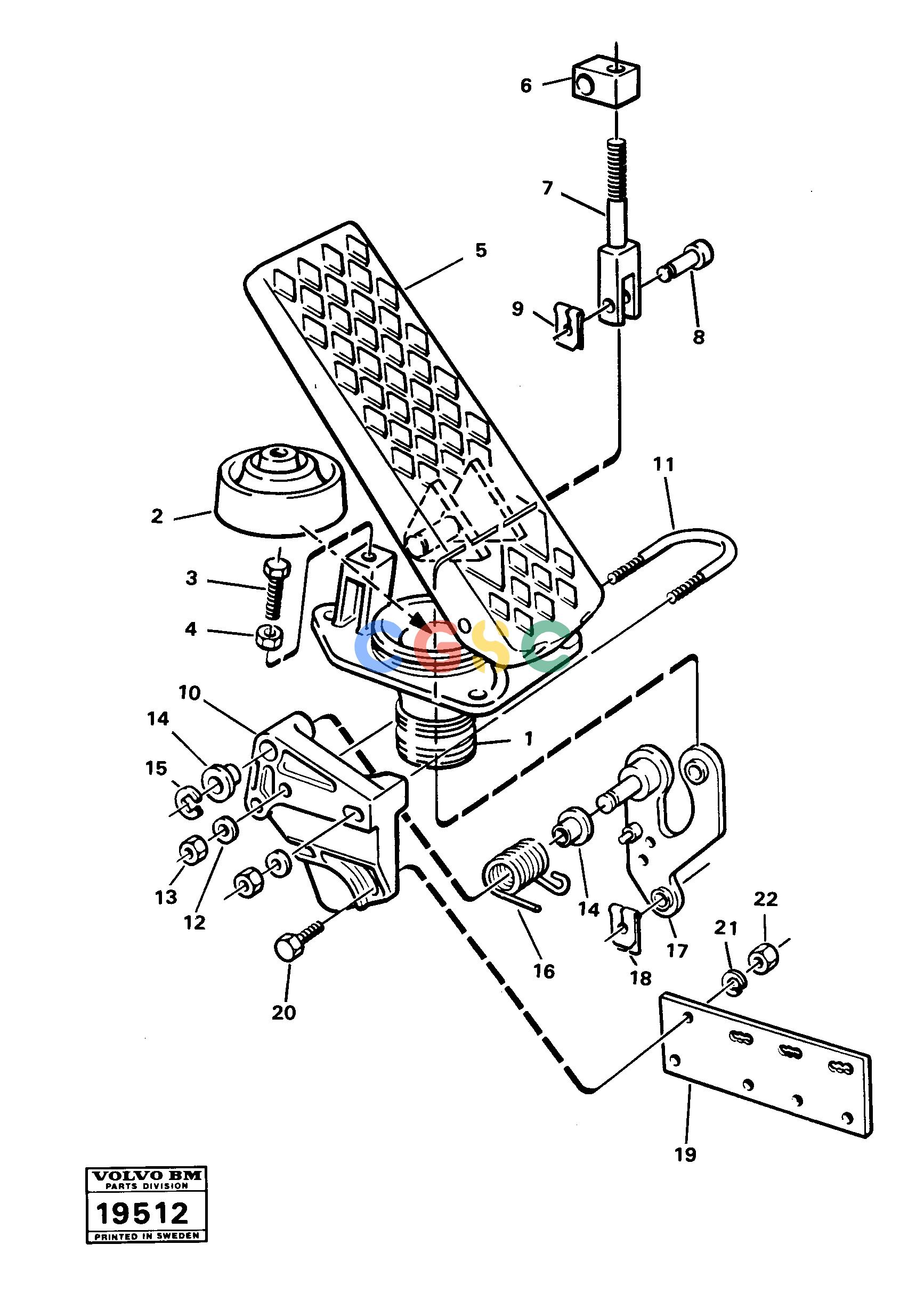

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE955782
|
[0001] |
Hexagon nut
|
|
| 5. |
|
[0001] |
Pedal
|
|
| |
VOE11998341
|
[0001] |
Repair kit
|
|
| 6. |
|
[0001] |
Anchorage
|
|
| 7. |
|
[0001] |
Push rod
|
|
| |
VOE4940759
|
[0001] |
Pedal
|
|
| 8. |
|
[0001] |
Pin
|
|
| 9. |
VOE11992315
|
[0001] |
Clip
|
|
| 10. |
VOE11991544
|
[0001] |
Bracket
|
|
| 11. |
VOE6242310
|
[0001] |
Brace
|
|
| 12. |
VOE955949
|
[0002] |
Toothed washer
|
|
| 13. |
VOE13955847
|
[0002] |
Nut
|
|
| 14. |
VOE6869537
|
[0002] |
Bearing
|
|
| 15. |
VOE6227570
|
[0001] |
Lock ring
|
|
| 16. |
VOE6242311
|
[0001] |
Spring
|
|
| 17. |
VOE11992314
|
[0001] |
Hand lever
|
|
| 1. |
|
[0001] |
Pedal housing
|
|
| 18. |
VOE11992315
|
[0002] |
Clip
|
|
| 19. |
|
[0001] |
Bracket
|
|
| 20. |
VOE13955271
|
[0001] |
Screw
|
|
| 21. |
VOE13949607
|
[0001] |
Washer
|
|
| 22. |
VOE955782
|
[0001] |
Hexagon nut
|
|
| 2. |
VOE6242308
|
[0001] |
Bellows
|
|
| 3. |
VOE60111880
|
[0001] |
Hexagon screw
|
|
