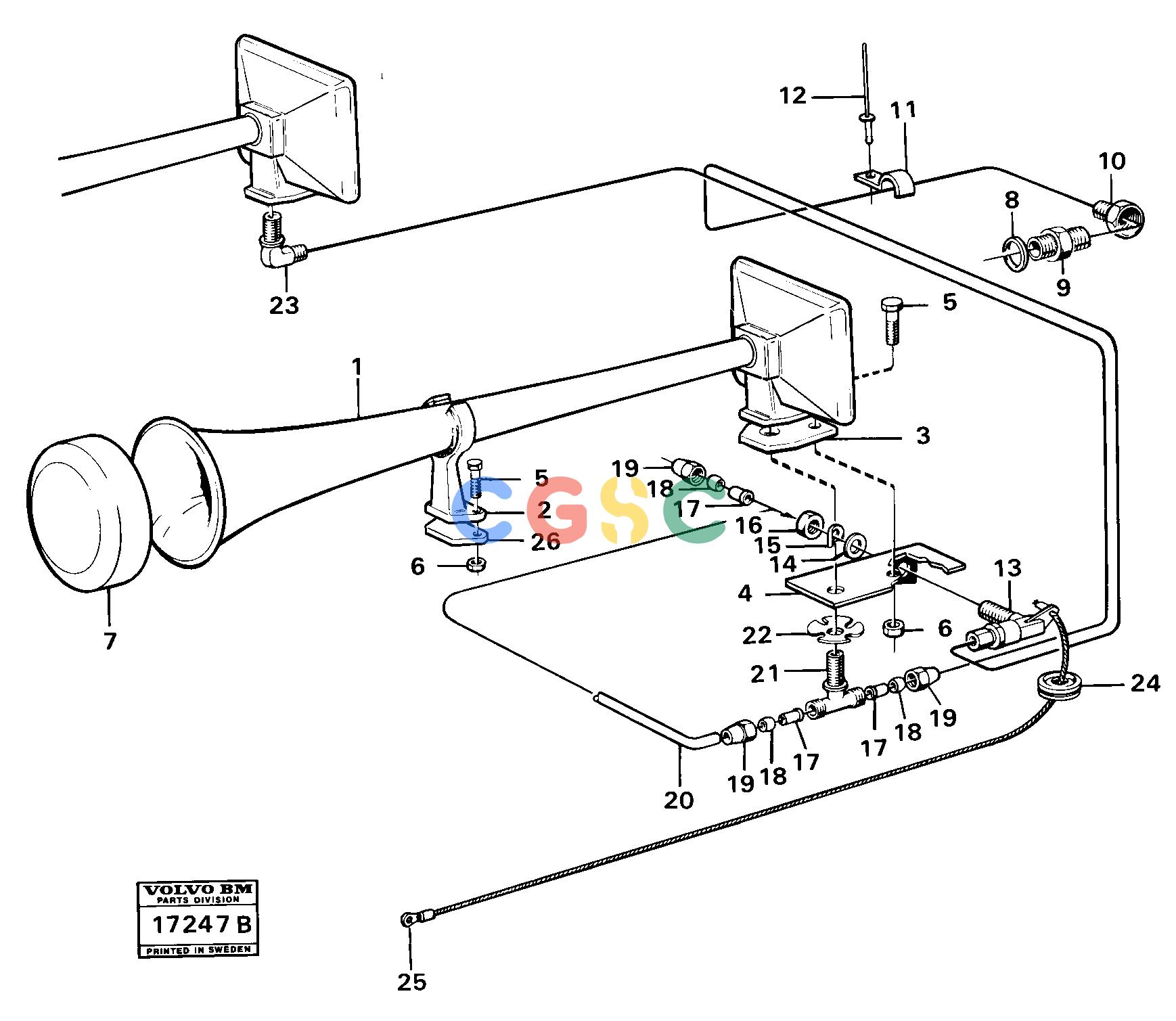

沃尔沃零件查询A25 VOLVO BM Compressed air horn with connections 98814VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
609 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13946934
|
[0008] |
Screw
|
|
| 6. |
VOE13949278
|
[0008] |
Flange lock nut
|
|
| 7. |
VOE1580257
|
[0002] |
Protection
|
|
| 8. |
VOE13947281
|
[0001] |
Gasket
|
|
| 9. |
VOE13945900
|
[0001] |
Nipple
|
|
| 1. |
VOE1587249
|
[0002] |
Horn
|
|
| 10. |
VOE946087
|
[0001] |
Nipple
|
|
| 11. |
VOE952623
|
[0002] |
Clamp
|
|
| 12. |
|
[0003] |
Rivet
|
|
| 13. |
VOE1505141
|
[0001] |
Valve
|
|
| 14. |
VOE955896
|
[0001] |
Plain washer
|
|
| 15. |
VOE13941909
|
[0001] |
Washer
|
|
| 16. |
VOE192272
|
[0001] |
Lock nut
|
|
| 17. |
VOE944717
|
[0006] |
Sleeve
|
|
| 18. |
VOE954364
|
[0006] |
Ferrule
|
|
| 19. |
VOE954356
|
[0006] |
Fitting nut
|
|
| 2. |
VOE1587251
|
[0002] |
Stay
|
|
| 20. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 4000
|
| 21. |
VOE13946413
|
[0001] |
Nipple
|
|
| 22. |
VOE1505142
|
[0002] |
Washer
|
|
| 23. |
VOE944993
|
[0001] |
Elbow nipple
|
|
| 24. |
VOE941262
|
[0001] |
Grommet
|
|
| 25. |
VOE940335
|
[0001] |
Cable terminal
|
|
| 26. |
VOE1587252
|
[0002] |
Gasket
|
|
| 3. |
VOE1587250
|
[0002] |
Gasket
|
|
| 4. |
VOE1587374
|
[0001] |
Bracket
|
|
