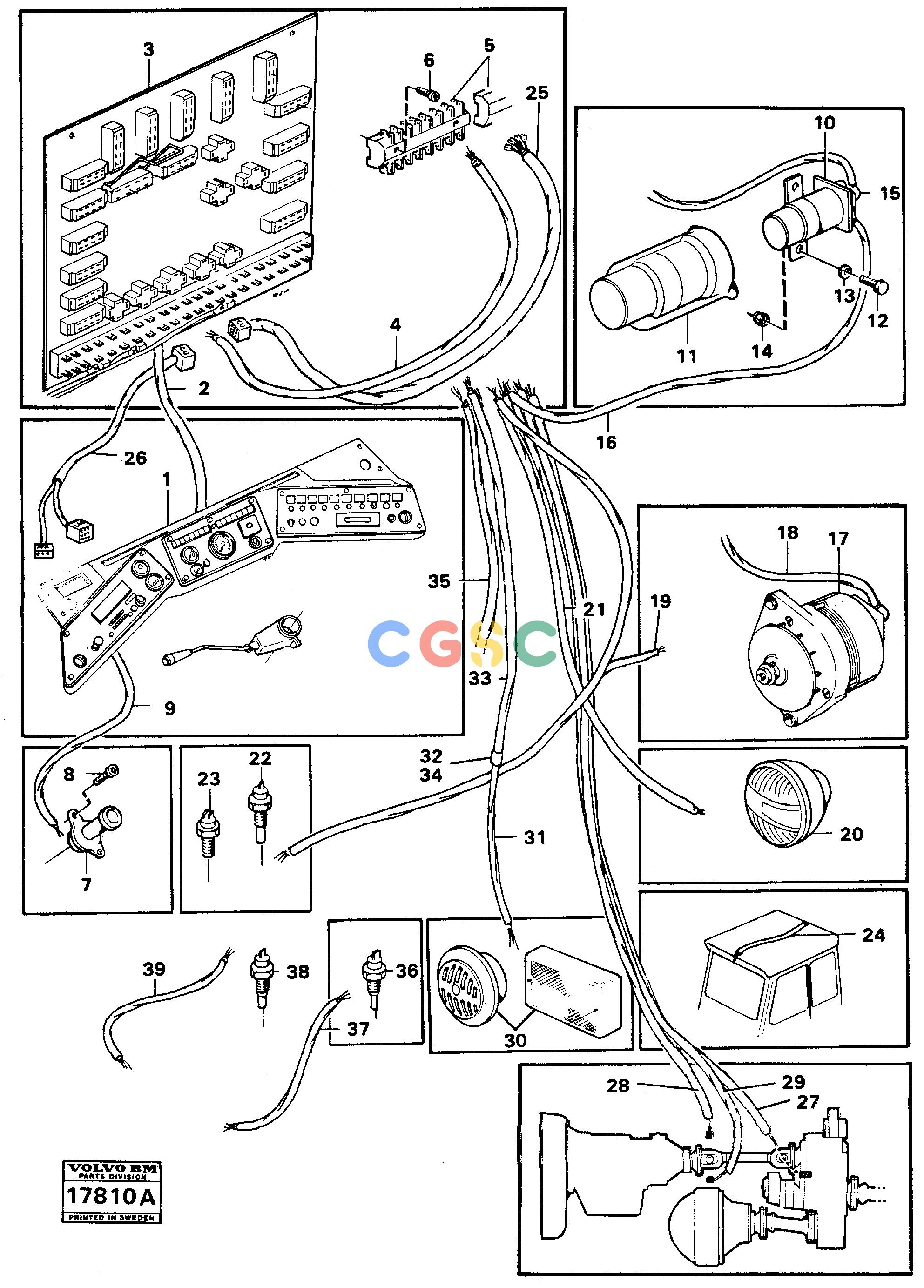

沃尔沃零件查询A25 VOLVO BM Electrical system,tractorVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4821415
|
[4] |
Appliance box
|
|
| 6. |
VOE60113646
|
[8] |
Cross recessed screw
|
|
| 7. |
VOE1502073
|
[1] |
Contact
|
|
| 8. |
VOE955122
|
[2] |
Cross recessed screw
|
|
| 9. |
VOE4823014
|
[1] |
Cable harness
|
|
| 1. |
|
|
Instr Panel
|
SEE GROUP 38
|
| 10. |
VOE1577376
|
[1] |
Relay
|
|
| 11. |
VOE11000258
|
[1] |
Cover
|
|
| 12. |
VOE13955247
|
[2] |
Screw
|
|
| 13. |
VOE13940090
|
[2] |
Washer
|
|
| 14. |
VOE13963104
|
[2] |
Lock nut
|
|
| 15. |
VOE842150
|
[0001] |
Protecting sleeve
|
|
| 16. |
VOE4965274
|
[0001] |
Cable harness
|
|
| 17. |
|
[0001] |
Alternator
|
SEE GROUP 32
|
| 18. |
|
[0001] |
Cable
|
|
| 19. |
VOE4821228
|
[1] |
Cable harness
|
|
| 2. |
VOE4864983
|
[1] |
Cable harness
|
|
| 20. |
|
[2] |
Head lamp
|
SEE GROUP 35
|
| 21. |
VOE11061559
|
[1] |
Cable harness
|
|
| |
|
[1] |
Housing
|
|
| |
VOE839141
|
[1] |
Protecting sleeve
|
|
| 22. |
VOE4803719
|
[1] |
Sensor
|
SEE GROUP 26
|
| 23. |
VOE1578698
|
[1] |
Tachometer sensor
|
SEE GROUP 21
|
| 24. |
VOE4864986
|
[1] |
Cable harness
|
|
| |
VOE961970
|
[1] |
Plug
|
|
| 25. |
VOE4940822
|
[1] |
Cable harness
|
|
| 26. |
VOE4940823
|
[1] |
Cable harness
|
|
| 3. |
|
[1] |
El Distr Unit
|
|
| 27. |
VOE4940817
|
[1] |
Cable harness
|
|
| |
VOE11039223
|
[1] |
Induction sensor
|
|
| 28. |
VOE4940793
|
[1] |
Cable harness
|
3, 6)
|
| 29. |
VOE4940794
|
[0001] |
Cable harness
|
3, 7)
|
| 30. |
|
|
Side marking lamp
|
SEE GROUP 35
|
| 31. |
VOE11061419
|
[0001] |
Cable harness
|
|
| |
|
|
None
|
SER NO - 5479
|
| 32. |
VOE941105
|
[0001] |
Housing
|
8-POLIG/8 POLE
|
| |
VOE831117
|
[0001] |
Boot
|
|
| |
VOE11061419
|
[0001] |
Cable harness
|
SER NO 5480 -
|
| 33. |
VOE11061899
|
[0001] |
Cable harness
|
|
| 34. |
VOE941104
|
[0001] |
Housing
|
8-POLIG/8 POLE
|
| 4. |
VOE4823056
|
[1] |
Cable harness
|
|
| |
VOE831117
|
[0001] |
Boot
|
|
| 35. |
VOE4940154
|
[0001] |
Cable harness
|
|
| |
VOE355878
|
[0001] |
Bushing
|
|
| 36. |
VOE1578102
|
[0002] |
Switch
|
BROMSAGGREGAT/
|
| |
|
|
None
|
BRAKE MACHINE
|
| 37. |
VOE4940790
|
[0001] |
Cable harness
|
H
|
| |
VOE4940791
|
[0001] |
Cable harness
|
V
|
| 38. |
VOE1578657
|
[0001] |
Switch
|
LÄNGS.DIFF/ALONG DIFF.
|
| 39. |
VOE4940792
|
[0001] |
Cable harness
|
|
