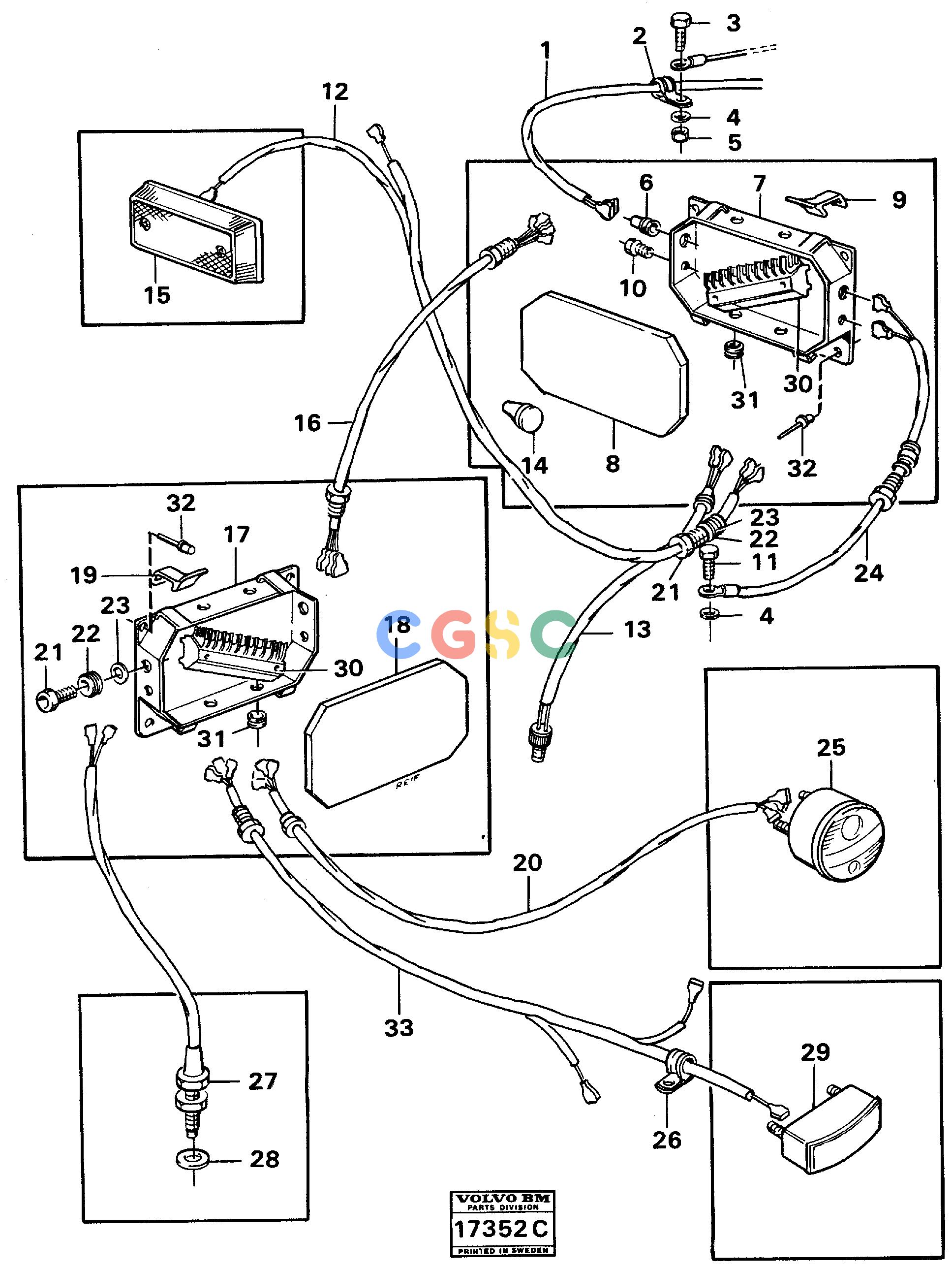

沃尔沃零件查询A25 VOLVO BM Electrical system,trailerVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
472 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE955948
|
[3] |
Toothed washer
|
|
| 5. |
VOE13949278
|
[7] |
Flange lock nut
|
|
| 6. |
VOE4940106
|
[1] |
Sleeve
|
|
| 7. |
VOE4940138
|
[1] |
Clutch housing
|
|
| 8. |
VOE1582939
|
[1] |
Cover
|
|
| 1. |
VOE4940154
|
[1] |
Cable harness
|
|
| 9. |
VOE1504888
|
[4] |
Latch
|
|
| 10. |
|
[1] |
Sleeve
|
|
| 11. |
VOE13946501
|
[2] |
Screw
|
|
| 12. |
VOE4940155
|
[1] |
Cable harness
|
|
| 13. |
VOE11061359
|
[2] |
Cable harness
|
contact-brake chamber
|
| |
VOE4940786
|
[1] |
Rubber bushing
|
|
| 14. |
VOE843902
|
[1] |
Plug
|
|
| 15. |
|
[2] |
Side marking lamp
|
SEE GROUP 35
|
| 16. |
VOE4940154
|
[1] |
Cable harness
|
|
| |
VOE4941651
|
[1] |
Cable harness
|
4X4
|
| 17. |
VOE4940139
|
[1] |
Clutch housing
|
|
| 18. |
VOE1582939
|
[1] |
Cover
|
|
| 19. |
VOE1504888
|
[4] |
Latch
|
|
| 20. |
VOE11061464
|
[1] |
Cable harness
|
V
|
| |
VOE11061464
|
[1] |
Cable harness
|
H
|
| |
VOE11061470
|
[1] |
Cable harness
|
V.
|
| |
VOE11061471
|
[1] |
Cable harness
|
H.
|
| 21. |
VOE1585424
|
[2] |
Screw
|
|
| 22. |
VOE1585447
|
[2] |
Rubber bushing
|
|
| 2. |
VOE952627
|
[1] |
Clamp
|
|
| 23. |
VOE11000260
|
[0004] |
Washer
|
|
| 24. |
|
[0002] |
Cable
|
|
| 25. |
|
[0002] |
Tail light
|
|
| 26. |
VOE952623
|
[0002] |
Clamp
|
|
| 27. |
VOE11039223
|
[0001] |
Induction sensor
|
TIPP/DUMPING
|
| 28. |
VOE955901
|
[0002] |
Plain washer
|
|
| 29. |
|
[0002] |
Plate lamps
|
|
| 30. |
VOE4940166
|
[0002] |
Terminal block
|
|
| 31. |
VOE4940786
|
[0002] |
Rubber bushing
|
|
| 32. |
VOE13965596
|
[0008] |
Blind rivet
|
|
| 3. |
VOE13946934
|
[8] |
Screw
|
|
| 33. |
VOE11061468
|
[0001] |
Cable harness
|
|
