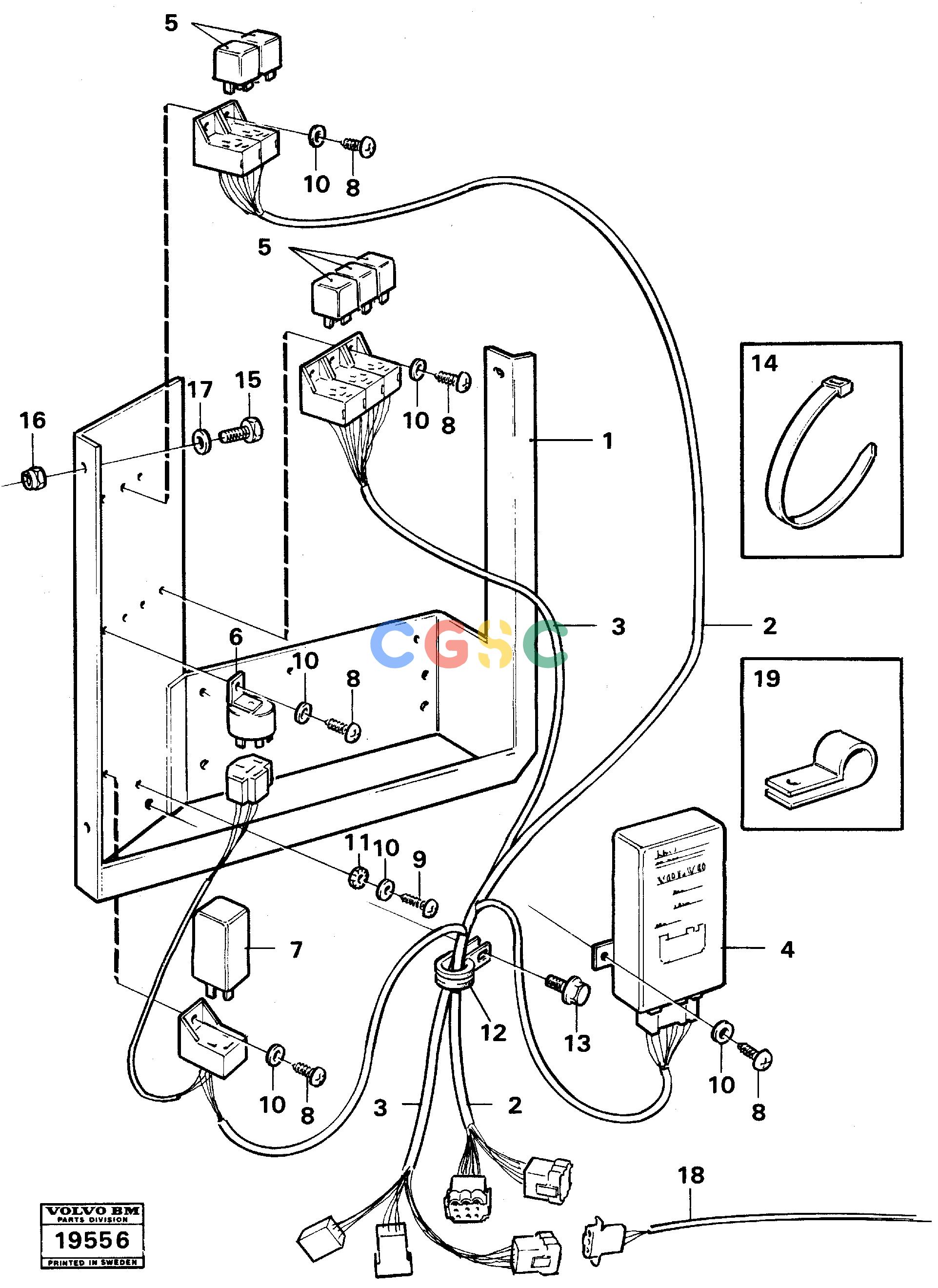

沃尔沃零件查询A25 VOLVO BM Distribution box, leftVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
516 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4803808
|
[0001] |
Rotation speed relay
|
|
| 5. |
VOE4786690
|
[0005] |
Relay
|
|
| |
|
|
Tip valve
|
R 12
|
| |
|
|
Counter-throttle
|
R 13
|
| |
|
|
Back light
|
RE 27
|
| |
|
|
El Distr Unit
|
|
| |
|
|
Exhaust brake
|
RE 29
|
| |
|
|
Key relay
|
RE 30
|
| 6. |
VOE1578123
|
[0001] |
Buzzer
|
|
| 7. |
VOE4823761
|
[0001] |
Flasher unit
|
|
| 8. |
VOE969278
|
[0009] |
Six point socket screw
|
|
| 9. |
VOE955143
|
[0001] |
Cross recessed screw
|
|
| 10. |
VOE13940090
|
[0010] |
Washer
|
|
| 11. |
VOE942604
|
[0001] |
Toothed washer
|
|
| 12. |
VOE952633
|
[0001] |
Clamp
|
|
| 13. |
VOE13946934
|
[0001] |
Screw
|
|
| 1. |
|
[0001] |
Plate
|
|
| 14. |
VOE4821292
|
[0006] |
Cable tie
|
|
| 15. |
VOE955270
|
[0006] |
Hexagon screw
|
|
| 16. |
VOE13949278
|
[0007] |
Flange lock nut
|
|
| 17. |
VOE955948
|
[0002] |
Toothed washer
|
|
| 18. |
VOE4823014
|
[0001] |
Cable harness
|
|
| 19. |
VOE941950
|
[0001] |
Clamp
|
|
| 2. |
VOE4965580
|
[0001] |
Cable harness
|
|
| 3. |
VOE11061008
|
[0001] |
Cable harness
|
|
