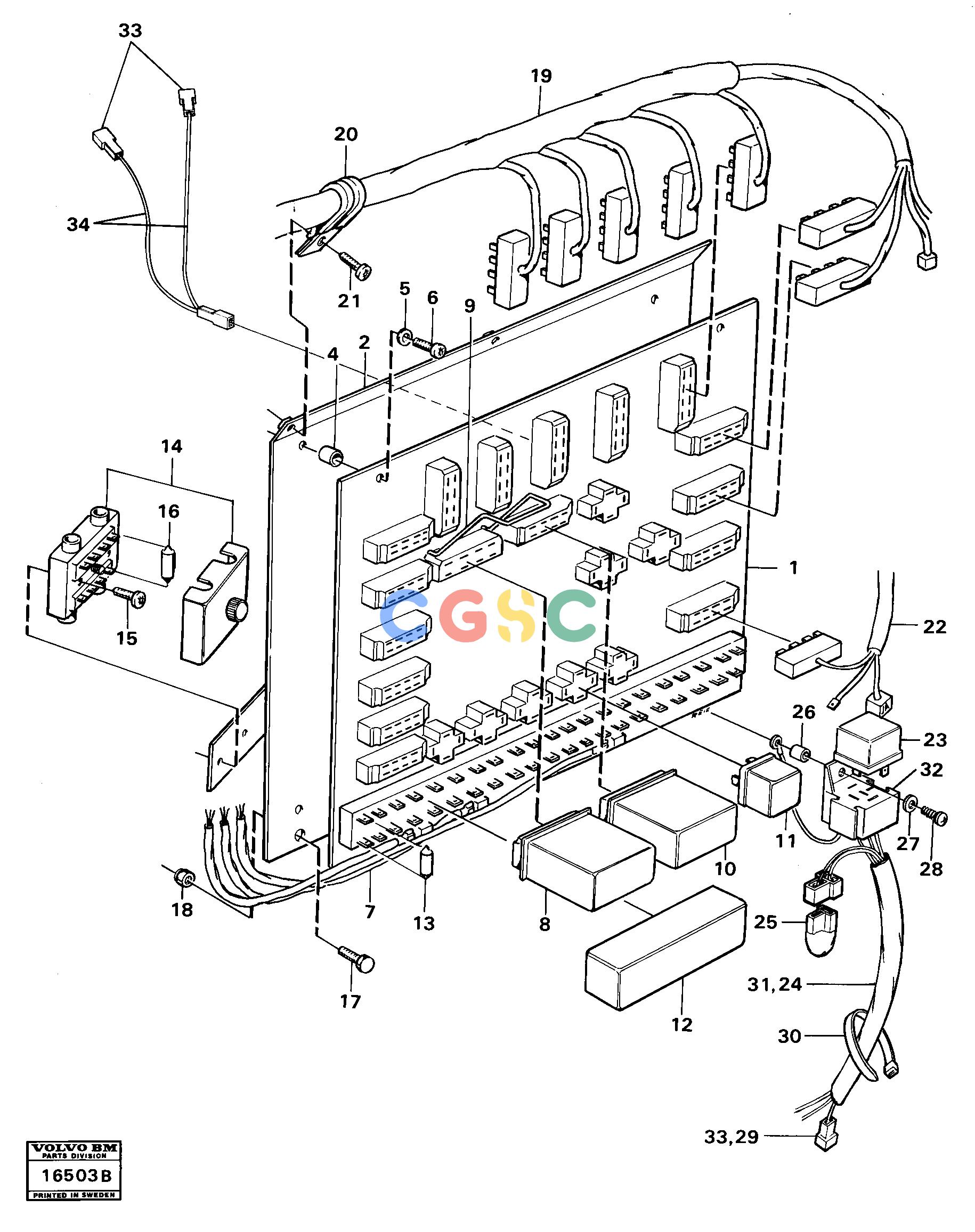

沃尔沃零件查询A25 VOLVO BM Distribution box, rightVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
951 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13962654
|
[0009] |
Washer
|
|
| 6. |
VOE955143
|
[0006] |
Cross recessed screw
|
|
| 7. |
|
[0002] |
Cable
|
|
| 8. |
VOE874100
|
[0001] |
Timer relay
|
|
| 9. |
|
[0002] |
Yoke
|
|
| |
|
[0001] |
El Distr Unit
|
|
| 10. |
VOE15048941
|
[0001] |
Flasher unit
|
|
| 11. |
VOE4786690
|
[0007] |
Relay
|
24 V
|
| 12. |
VOE13949019
|
[0003] |
Cover
|
|
| 13. |
VOE7011433
|
[0012] |
Fuse
|
8A
|
| |
VOE942785
|
[0007] |
Fuse
|
16A
|
| |
VOE942545
|
[0002] |
Fuse
|
5A
|
| 14. |
VOE240938
|
[0001] |
Fuse box
|
|
| 15. |
VOE969278
|
[0002] |
Six point socket screw
|
|
| 16. |
VOE4780637
|
[0001] |
Fuse
|
25A
|
| 17. |
VOE955143
|
[0003] |
Cross recessed screw
|
|
| 1. |
VOE11061039
|
[0001] |
Ptd Circuit Bd
|
|
| 18. |
VOE13949278
|
[0003] |
Flange lock nut
|
|
| 19. |
VOE4864983
|
[0001] |
Cable harness
|
|
| 20. |
VOE981904
|
[0001] |
Clamp
|
|
| 21. |
VOE13955272
|
[0001] |
Screw
|
|
| 22. |
VOE11061008
|
[0001] |
Cable harness
|
|
| 23. |
VOE4786690
|
[0001] |
Relay
|
|
| |
VOE4786690
|
[0001] |
Relay
|
|
| 24. |
VOE4940326
|
[0001] |
Cable harness
|
|
| 25. |
VOE4940327
|
[0001] |
Diode
|
|
| 26. |
VOE4820597
|
[0001] |
Spacer tube
|
|
| 2. |
|
[0001] |
Plate
|
|
| |
VOE4820597
|
[0001] |
Spacer tube
|
|
| 27. |
VOE955946
|
[0001] |
Toothed washer
|
|
| |
VOE955946
|
[0001] |
Toothed washer
|
|
| 28. |
VOE955143
|
[0001] |
Cross recessed screw
|
|
| |
VOE955143
|
[0001] |
Cross recessed screw
|
|
| 29. |
VOE958207
|
[0001] |
Housing
|
|
| 30. |
VOE4821292
|
[0003] |
Cable tie
|
|
| 31. |
|
[0001] |
Wire harness
|
|
| 32. |
|
[0001] |
Socket
|
|
| 33. |
|
[0001] |
Insulator
|
|
| 4. |
VOE4820597
|
[0009] |
Spacer tube
|
|
| 34. |
|
[0001] |
Cable
|
|
