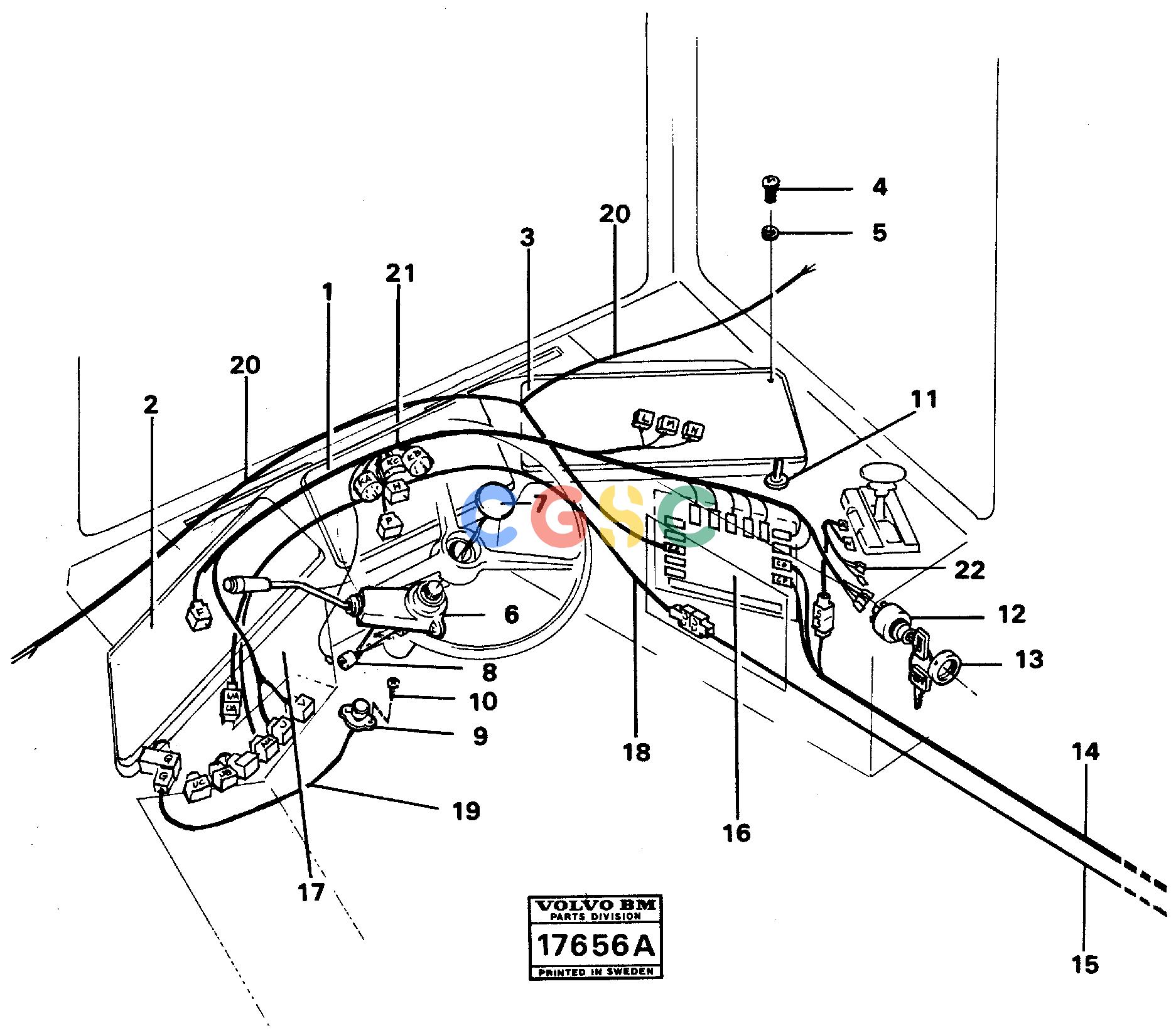

沃尔沃零件查询A25 VOLVO BM Electrical system, cabVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE955892
|
[0016] |
Plain washer
|
|
| 6. |
VOE11192582
|
[0001] |
Switch
|
|
| 7. |
VOE7631020
|
[0001] |
Horn button
|
|
| 8. |
VOE323136
|
[0001] |
Collecting shoe
|
|
| 9. |
VOE1502073
|
[0001] |
Contact
|
|
| 1. |
|
[0001] |
Instr Panel
|
SEE GROUP 38
|
| 10. |
VOE955122
|
[0002] |
Cross recessed screw
|
|
| 11. |
VOE4787446
|
[0001] |
Switch
|
|
| 12. |
VOE1590738
|
[0001] |
Starter switch
|
|
| |
VOE1578121
|
[0001] |
Starter switch
|
|
| |
VOE1581255
|
|
Key
|
|
| 13. |
VOE1581184
|
[0001] |
Nut
|
|
| 14. |
VOE4823056
|
[0001] |
Cable harness
|
|
| 15. |
VOE4940822
|
[0001] |
Cable harness
|
|
| 16. |
|
[0001] |
Distribution box. r
|
|
| 17. |
|
[0001] |
Distribution box. l
|
|
| 2. |
|
[0001] |
Instr Panel
|
SEE GROUP 38
|
| 18. |
VOE4940823
|
[0001] |
Cable harness
|
|
| 19. |
VOE4823014
|
[0001] |
Cable harness
|
|
| 20. |
VOE11061563
|
[0001] |
Cable harness
|
|
| 21. |
VOE4864983
|
[0001] |
Cable harness
|
|
| 22. |
VOE11057032
|
[0001] |
Cable harness
|
SEE GROUP 42
|
| 3. |
|
[0001] |
Instr Panel
|
SEE GROUP 38
|
| 4. |
VOE947631
|
[0016] |
Gasket
|
|
