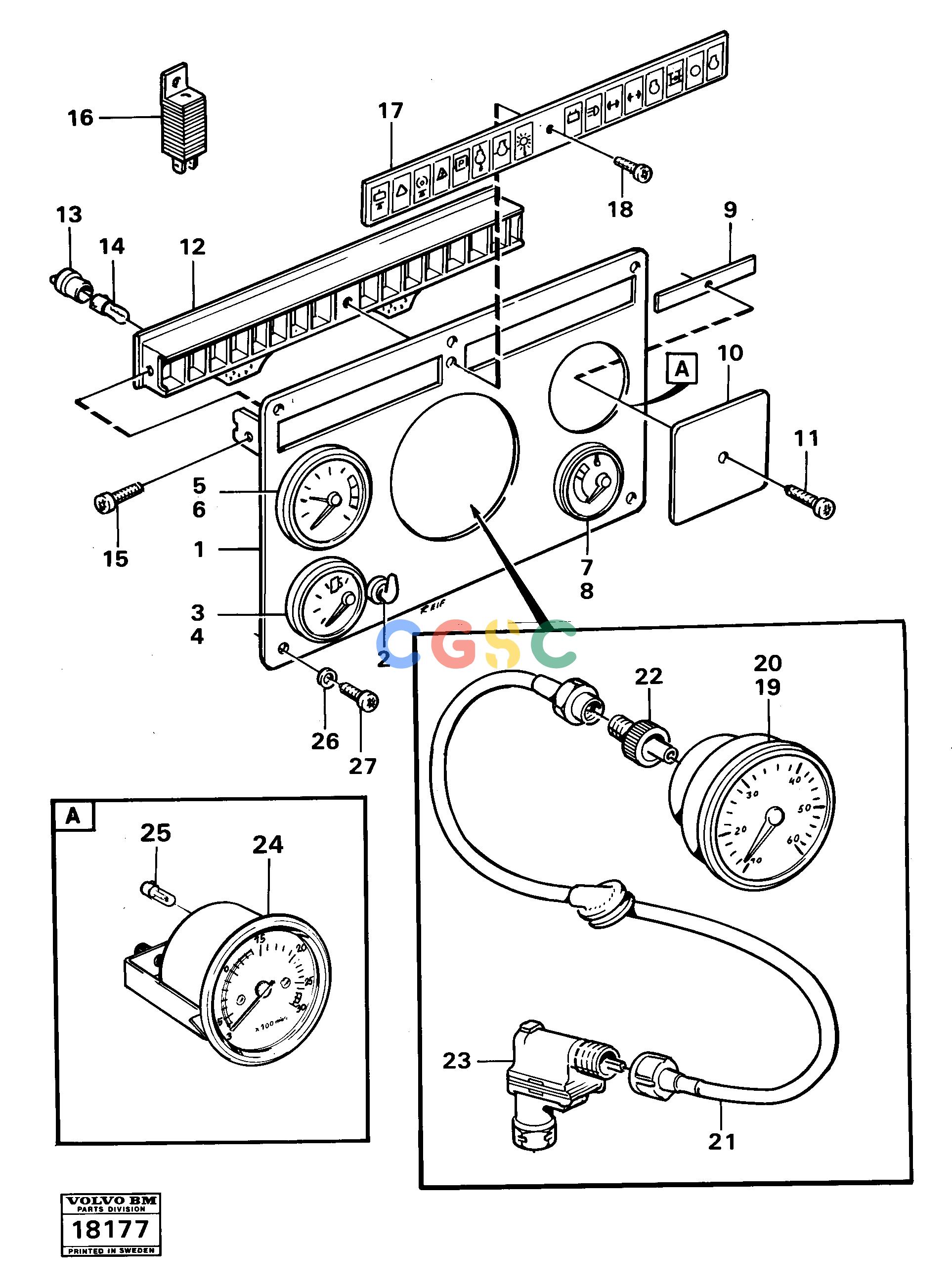

沃尔沃零件查询A25 VOLVO BM Instrument panel, middleVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
122 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE182034
|
[0001] |
Bulb
|
|
| 5. |
VOE11062742
|
[0001] |
Pressure gauge
|
|
| 6. |
VOE182034
|
[0001] |
Bulb
|
|
| 7. |
VOE11062743
|
[0001] |
Temperature gauge
|
|
| 8. |
VOE182034
|
[0001] |
Bulb
|
|
| |
VOE4823055
|
[0001] |
Instrument panel
|
|
| 9. |
|
[0001] |
Plate
|
|
| 10. |
|
[0001] |
Cover plate
|
|
| 11. |
|
[0001] |
Screw
|
|
| 12. |
VOE4803113
|
[0001] |
Ptd Circuit Bd
|
|
| 13. |
VOE1504690
|
[0016] |
Retainer
|
|
| 14. |
VOE182034
|
[0016] |
Bulb
|
|
| 15. |
VOE955161
|
[0002] |
Cross recessed sunk screw
|
|
| 16. |
VOE11061483
|
[0001] |
Resistor
|
|
| 17. |
VOE11063192
|
[0001] |
Symbol strip
|
|
| |
VOE1580220
|
[0001] |
Plastic strip
|
|
| 1. |
|
[0001] |
Instr Panel
|
|
| 18. |
VOE943617
|
[1] |
Cross recessed screw
|
|
| 19. |
VOE4803114
|
[1] |
Speedometer
|
|
| |
VOE4803290
|
[1] |
Speedometer
|
|
| |
|
[1] |
Yoke
|
|
| |
VOE11990414
|
[1] |
Tachograph
|
|
| |
VOE6627675
|
[1] |
Blade
|
70ST
|
| |
VOE1572172
|
[1] |
Tachograph
|
|
| |
VOE1507304
|
[REQ] |
Sealing wire
|
|
| |
VOE11000135
|
[4] |
Seal
|
|
| 20. |
VOE13946058
|
[1] |
Bulb
|
|
| 2. |
VOE4786696
|
[0001] |
Switch
|
|
| |
VOE13946058
|
[2] |
Bulb
|
|
| 21. |
VOE4940521
|
[1] |
Speedometer cable
|
|
| 22. |
VOE4803183
|
[1] |
Clutch
|
|
| |
VOE4803183
|
[1] |
Clutch
|
|
| |
VOE4864376
|
[0001] |
Angle gear kit
|
|
| |
VOE1575300
|
[0001] |
Cover
|
|
| 23. |
VOE4940982
|
[0001] |
Angle gear
|
6X4, 6X6
|
| |
VOE4941249
|
[0001] |
Angle gear
|
37014, 37016, 37021
|
| |
|
|
None
|
|
| |
|
|
None
|
|
| 24. |
VOE4803807
|
[0001] |
Tachometer
|
|
| 25. |
VOE182034
|
[0001] |
Bulb
|
|
| 3. |
VOE11062739
|
[0001] |
Fuel gauge
|
|
| 26. |
VOE955892
|
[0005] |
Plain washer
|
|
| 27. |
VOE956095
|
[0005] |
Cross recessed screw
|
|
