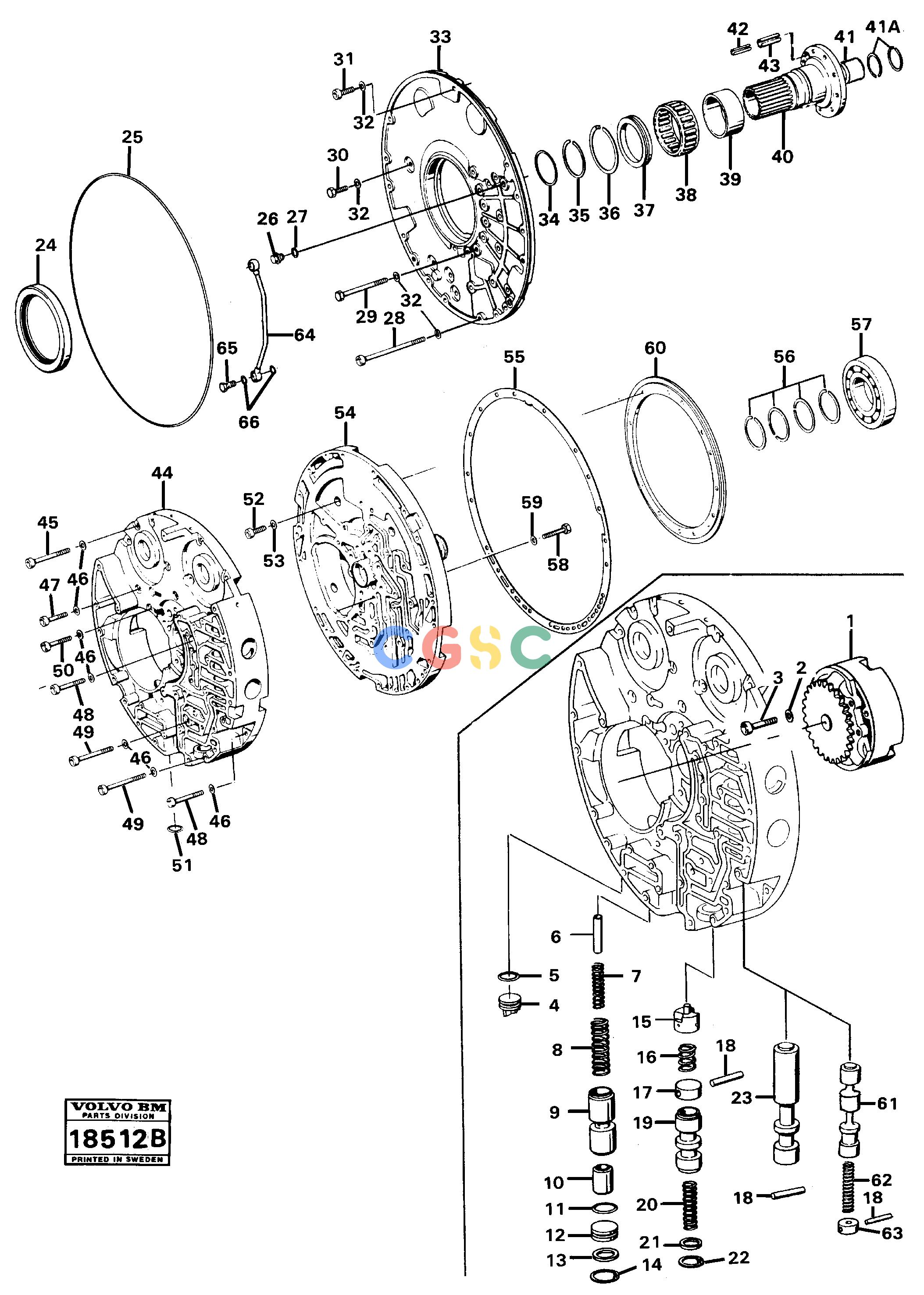

沃尔沃零件查询A25 VOLVO BM Oil distributorVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
798 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE11991204
|
[1] |
O-ring
|
|
| 45. |
VOE60112646
|
[5] |
Hex. Socket Screw
|
|
| 46. |
VOE11991066
|
[20] |
Washer
|
|
| 47. |
VOE959226
|
[3] |
Allen Hd Screw
|
|
| 48. |
VOE941762
|
[5] |
Hex. socket screw
|
|
| 49. |
VOE959231
|
[4] |
Hex. socket screw
|
|
| 50. |
VOE941761
|
[3] |
Hex. socket screw
|
|
| 51. |
VOE11991067
|
[1] |
O-ring
|
|
| 52. |
VOE11709870
|
[3] |
Screw
|
|
| 53. |
VOE13955894
|
[3] |
Washer
|
|
| 54. |
VOE11709577
|
[1] |
Flange
|
|
| 6. |
VOE11991205
|
[1] |
Spacer tube
|
TM -28352
|
| 55. |
VOE11991070
|
[1] |
Intermediate plate
|
|
| 56. |
VOE11706599
|
[4] |
Ring
|
|
| 57. |
VOE805300
|
[1] |
Ball bearing
|
|
| 58. |
VOE955299
|
[7] |
Hexagon screw
|
|
| 59. |
VOE11991066
|
[7] |
Washer
|
|
| 60. |
VOE11991072
|
[1] |
Thrust ring
|
|
| 61. |
VOE11992011
|
[1] |
Piston
|
|
| 62. |
VOE11992012
|
[1] |
Compression spring
|
|
| 63. |
VOE11992013
|
[1] |
Spacer ring
|
|
| 64. |
VOE11992073
|
[1] |
Tube
|
|
| 7. |
VOE11991206
|
[1] |
Compression spring
|
TM - 28352
|
| 65. |
VOE11992074
|
[2] |
Hollow screw
|
|
| 66. |
VOE13947281
|
[4] |
Gasket
|
|
| |
VOE11993287
|
[1] |
Spring
|
TM 28353 -
|
| 8. |
VOE11991207
|
[1] |
Compression spring
|
TM - 28352
|
| 1. |
VOE11991202
|
[1] |
Oil pump
|
|
| |
VOE11993286
|
[1] |
Spring
|
TM 28353 -
|
| 9. |
VOE11991208
|
[1] |
Piston
|
TM - 28352
|
| |
VOE11704804
|
[1] |
Piston kit
|
TM 28353 -
|
| 10. |
VOE11991209
|
[1] |
Piston
|
TM - 28352
|
| |
VOE11704804
|
[1] |
Piston kit
|
TM 28353 -
|
| 11. |
VOE11991204
|
[1] |
O-ring
|
|
| 12. |
VOE11991210
|
[1] |
Spacer
|
|
| 13. |
VOE11991211
|
[1] |
Washer
|
|
| 14. |
VOE914516
|
[1] |
Retaining ring
|
|
| 15. |
VOE11991212
|
[1] |
Piston
|
|
| 2. |
VOE11991066
|
[1] |
Washer
|
|
| 16. |
VOE11991213
|
[1] |
Compression spring
|
|
| 17. |
VOE11991214
|
[1] |
Spacer ring
|
|
| 18. |
VOE11991215
|
[2] |
Pin
|
|
| 19. |
VOE11991216
|
[1] |
Piston
|
|
| 20. |
VOE11991217
|
[1] |
Compression spring
|
|
| 21. |
VOE11991218
|
[1] |
Washer
|
|
| 22. |
VOE914515
|
[1] |
Retaining ring
|
|
| 23. |
|
[1] |
Piston
|
|
| 24. |
VOE11991055
|
[1] |
Sealing ring
|
|
| 25. |
VOE11991056
|
[1] |
O-ring
|
|
| 3. |
VOE941761
|
[1] |
Hex. socket screw
|
|
| 26. |
VOE960628
|
[2] |
Plug
|
|
| 27. |
VOE13947281
|
[4] |
Gasket
|
|
| 28. |
VOE11991057
|
[14] |
Screw
|
|
| 29. |
VOE100222
|
[8] |
Screw
|
|
| 30. |
VOE13955295
|
[11] |
Screw
|
|
| 31. |
VOE959224
|
[1] |
Hex. socket screw
|
|
| 32. |
VOE964106
|
[34] |
Gasket
|
|
| 33. |
VOE11991058
|
[1] |
Cap
|
|
| 34. |
VOE11991059
|
[1] |
Washer
|
|
| 35. |
VOE6633266
|
[1] |
Lock ring
|
|
| 4. |
VOE11991203
|
[1] |
Spacer
|
|
| 36. |
VOE11991060
|
[1] |
Lock ring
|
|
| 37. |
VOE11991061
|
[1] |
Retainer
|
|
| 38. |
VOE11991062
|
[1] |
Needle bearing
|
|
| 39. |
VOE11991063
|
[1] |
Bearing race
|
|
| 40. |
VOE11991064
|
[1] |
Shaft
|
|
| 41. |
VOE1663070
|
[1] |
Bushing
|
|
| 41A. |
VOE11991386
|
[2] |
Lock ring
|
|
| 42. |
VOE952005
|
[1] |
Spring pin
|
|
| 43. |
VOE13952049
|
[1] |
Spring pin
|
|
| 44. |
VOE11998399
|
[1] |
Cap
|
|
