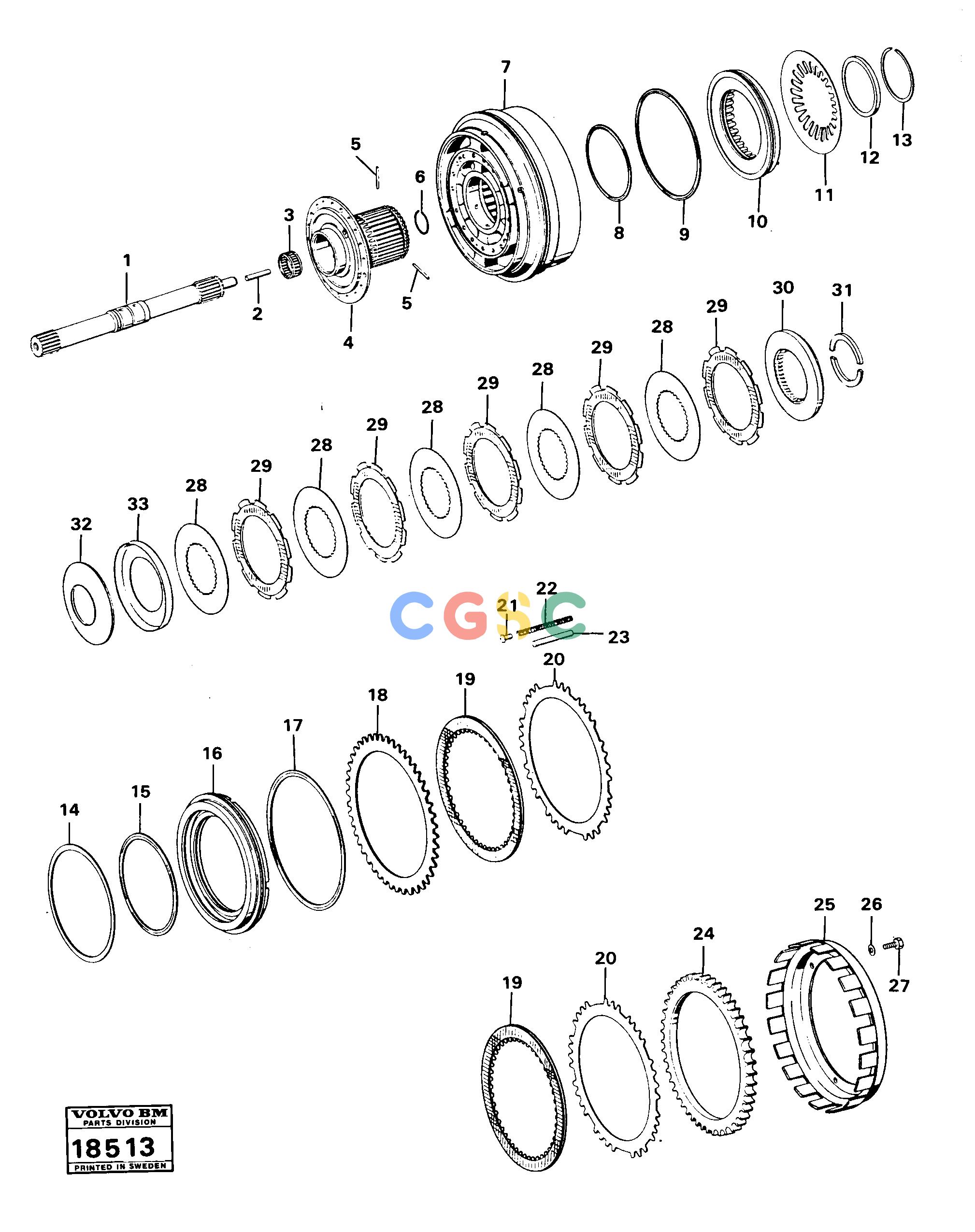

沃尔沃零件查询A25 VOLVO BM Clutch a,bVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1663843
|
[1] |
Turbine shaft
|
|
| 2. |
VOE11991074
|
[1] |
Tube
|
|
| 3. |
VOE11991075
|
[1] |
Needle bearing
|
|
| 4. |
VOE11991076
|
[1] |
Hub
|
|
| 5. |
VOE11708301
|
[3] |
Pin
|
|
| 6. |
VOE267122
|
[1] |
Snap ring
|
|
| 7. |
VOE11992142
|
[1] |
Retainer
|
TM NO-41112
|
| |
VOE11992142
|
[1] |
Retainer
|
TM NO-41377
|
| |
VOE1663148
|
[1] |
Clutch drum
|
TM NO 41113-
|
| |
VOE1663148
|
[1] |
Clutch drum
|
TM NO 41378-
|
| 8. |
VOE11991079
|
[1] |
Sealing ring
|
|
| 9. |
VOE11991080
|
[1] |
Sealing ring
|
|
| 10. |
VOE11993290
|
[1] |
Piston
|
|
| 11. |
VOE11991084
|
[1] |
Disc spring
|
|
| 12. |
VOE11991085
|
[1] |
Lock plate
|
|
| 13. |
VOE11991086
|
[1] |
Lock ring
|
|
| 14. |
VOE11991087
|
[1] |
Sealing ring
|
|
| 15. |
VOE11991088
|
[1] |
Sealing ring
|
|
| 16. |
VOE11711961
|
[1] |
Piston
|
|
| 17. |
VOE11991090
|
[1] |
Sealing ring
|
|
| 18. |
VOE11991091
|
[1] |
Disc
|
|
| 19. |
VOE11708805
|
[4] |
Disc
|
|
| 20. |
VOE11991093
|
[4] |
Disc
|
Thick =2,0
|
| |
VOE1663327
|
[REQ] |
Steel disc
|
Thick =2,5
|
| 21. |
VOE11991094
|
[9] |
Bolt
|
|
| 22. |
VOE11991095
|
[9] |
Compression spring
|
|
| 23. |
VOE11991096
|
[2] |
Bolt
|
TM NO-41112
|
| |
VOE11991096
|
[2] |
Bolt
|
TM NO-41377
|
| |
VOE1663204
|
[2] |
Pin
|
TM NO 41113-
|
| |
VOE1663204
|
[2] |
Pin
|
TM NO 41378-
|
| 24. |
VOE11991097
|
[1] |
Disc
|
TM NO-41112
|
| |
VOE11991097
|
[1] |
Disc
|
TM NO-41377
|
| |
VOE1663214
|
[1] |
End Piece
|
TM NO 41113-
|
| |
VOE1663214
|
[1] |
End Piece
|
TM NO 41378-
|
| 25. |
VOE11991098
|
[1] |
Ring
|
|
| 26. |
VOE955892
|
[3] |
Plain washer
|
|
| 27. |
VOE13955271
|
[3] |
Screw
|
|
| 28. |
VOE11991099
|
[7] |
Disc
|
Thick =2,0
|
| |
VOE1663310
|
[REQ] |
Steel disc
|
Thick =2,5
|
| 29. |
VOE11708345
|
[7] |
Disc
|
|
| 30. |
VOE11991101
|
[1] |
Disc
|
|
| 31. |
VOE11716872
|
[1] |
Ring
|
|
| 32. |
VOE11991106
|
[1] |
Disc spring
|
|
| 33. |
VOE11991107
|
[1] |
Lock plate
|
|
