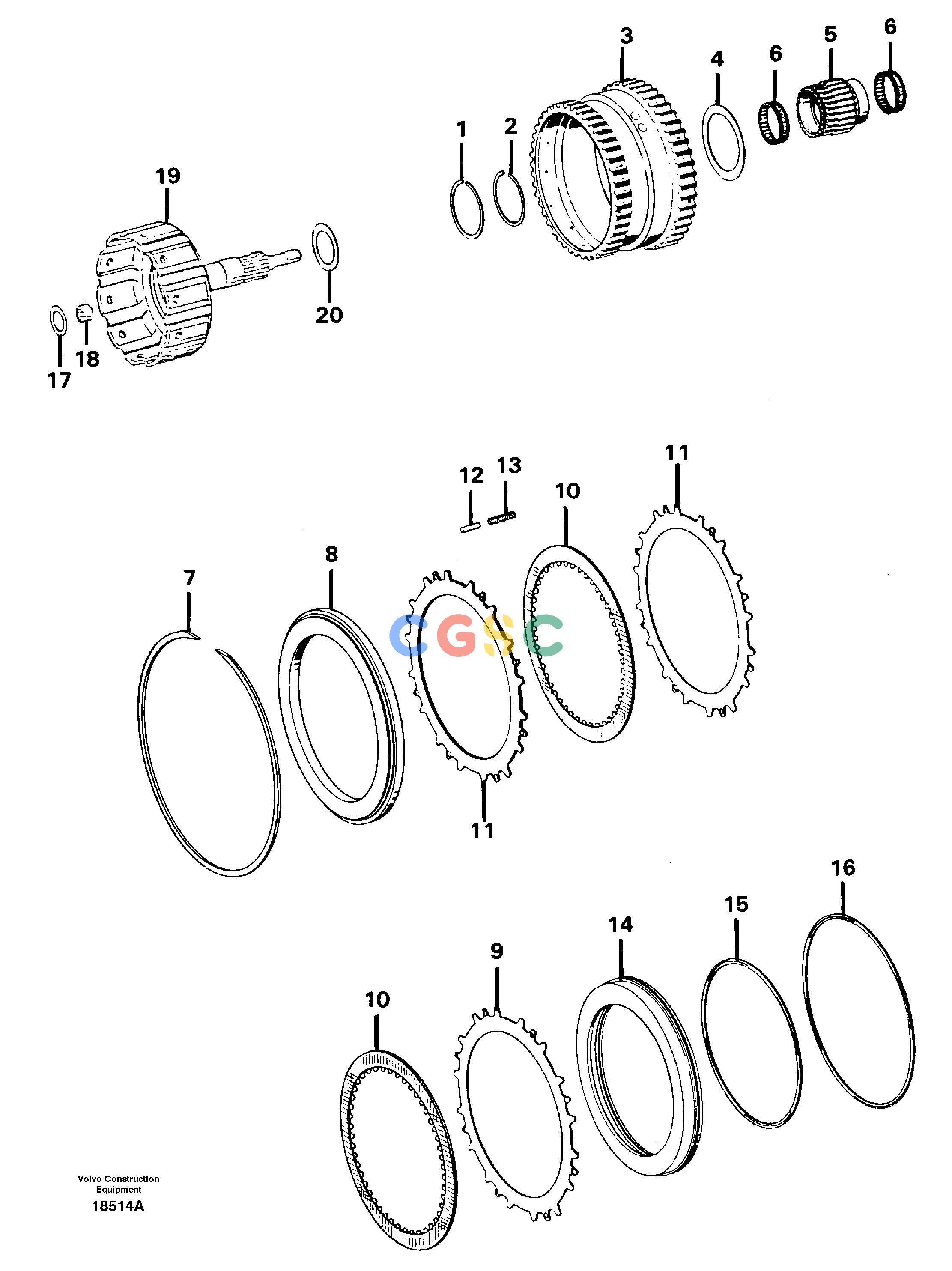

沃尔沃零件查询A25 VOLVO BM Clutch dVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
993 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11991108
|
[1] |
Lock ring
|
|
| 2. |
VOE11991109
|
[1] |
Lock ring
|
|
| 3. |
VOE11991110
|
[1] |
Retainer
|
|
| 4. |
VOE11996213
|
[1] |
Thrust washer
|
|
| 5. |
VOE11991112
|
[1] |
Sun gear
|
|
| 6. |
VOE11991113
|
[2] |
Needle bearing
|
|
| 7. |
VOE11991114
|
[1] |
Lock ring
|
|
| 8. |
VOE11991115
|
[1] |
Ring
|
|
| 9. |
VOE11991116
|
[1] |
Disc
|
|
| 10. |
VOE11708593
|
[3] |
Disc
|
|
| 11. |
VOE11991116
|
[4] |
Disc
|
Thick =3,0
|
| |
VOE1663345
|
[REQ] |
Disc
|
Thick =2,5
|
| |
VOE11991118
|
[REQ] |
Disc
|
Thick =2,0
|
| 12. |
VOE11991119
|
[8] |
Pin
|
|
| 13. |
VOE11991120
|
[8] |
Compression spring
|
|
| 14. |
VOE11705774
|
[1] |
Piston
|
|
| 15. |
VOE11991122
|
[1] |
Sealing ring
|
|
| 16. |
VOE11991123
|
[1] |
Sealing ring
|
|
| 17. |
VOE11996116
|
[1] |
Thrust washer
|
|
| 18. |
VOE6237493
|
[1] |
Needle bearing
|
|
| 19. |
VOE11991104
|
[1] |
Shaft
|
|
| 20. |
VOE11991105
|
[1] |
Thrust washer
|
|
