沃尔沃零件查询A25 VOLVO BM DifferentialVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
539 次

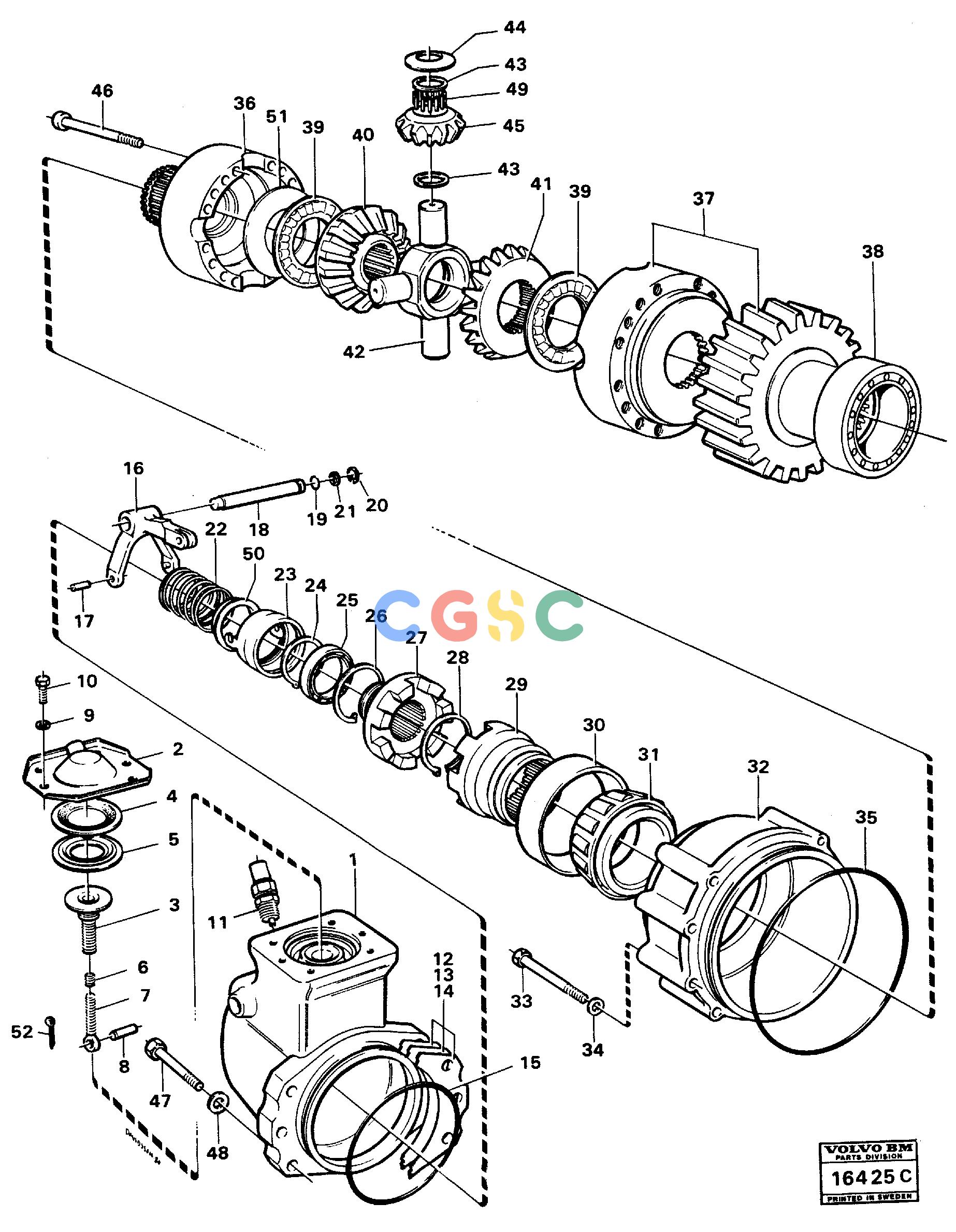

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE383988
|
[0001] |
Diaphragm seat
|
|
| 48. |
VOE941908
|
[0006] |
Spring washer
|
|
| 49. |
VOE4720541
|
[0164] |
Needle bearing
|
|
| 50. |
VOE4720249
|
[0001] |
Guide washer
|
|
| 51. |
VOE184286
|
[0001] |
Housing washer
|
|
| 52. |
VOE907822
|
[0001] |
Split pin
|
|
| |
VOE11714472
|
[0001] |
Differential pinion set
|
|
| 6. |
VOE4869287
|
[0001] |
Screw
|
|
| 7. |
VOE4719089
|
[0001] |
Link
|
|
| 8. |
VOE913125
|
[0001] |
Clevis pin
|
|
| 9. |
VOE13949607
|
[0006] |
Washer
|
|
| 1. |
VOE4720202
|
[0001] |
Housing
|
|
| 10. |
VOE955269
|
[0006] |
Hexagon screw
|
|
| 11. |
VOE1578657
|
[0001] |
Switch
|
FÖR LÄNGSGÅENDE DIFF./
|
| |
|
|
None
|
FOR LONGITUDIAL DIFF.
|
| 12. |
VOE11036815
|
[REQ] |
Shim
|
|
| 13. |
VOE11036816
|
[REQ] |
Shim
|
|
| 14. |
VOE11036817
|
[REQ] |
Shim
|
|
| 15. |
VOE13948888
|
[0001] |
O-ring
|
|
| 16. |
VOE4720241
|
[0001] |
Selector fork
|
|
| 17. |
VOE950562
|
[0002] |
Pin
|
|
| 18. |
VOE4719098
|
[0001] |
Selector rail
|
|
| 2. |
VOE11034637
|
[0001] |
Cover
|
|
| 19. |
VOE944364
|
[0001] |
O-ring
|
|
| 20. |
VOE945477
|
[0001] |
Snap ring
|
|
| 21. |
VOE4719100
|
[0001] |
Washer
|
|
| 22. |
VOE4720245
|
[0001] |
Compression spring
|
|
| 23. |
VOE11144848
|
[0001] |
Bearing carrier
|
|
| 24. |
VOE4880122
|
[0001] |
Lock ring
|
|
| 25. |
VOE4880121
|
[0001] |
Ball bearing
|
|
| 26. |
VOE4880123
|
[0001] |
Lock ring
|
|
| 27. |
VOE4720246
|
[0001] |
Engaging sleeve
|
|
| 28. |
VOE4720289
|
[0001] |
Snap ring
|
|
| 3. |
VOE383971
|
[0001] |
Diaphragm sleeve
|
|
| 29. |
VOE4720247
|
[0001] |
Engaging sleeve
|
|
| 30. |
VOE4787750
|
[0001] |
Roller bearing
|
|
| 31. |
VOE4787751
|
[0001] |
Cone
|
|
| 32. |
VOE4719564
|
[0001] |
Bearing housing
|
|
| 33. |
VOE13970958
|
[0008] |
Hexagon screw
|
|
| 34. |
VOE941908
|
[0008] |
Spring washer
|
|
| 35. |
VOE13949737
|
[0001] |
O-ring
|
|
| 36. |
VOE4871888
|
[0001] |
Differential housing
|
|
| 37. |
VOE11036541
|
[0001] |
Differential housing
|
|
| |
|
[0001] |
Gear
|
|
| 4. |
VOE383972
|
[0001] |
Diaphragm
|
|
| 38. |
|
[0001] |
Bearing
|
|
| 39. |
VOE184373
|
[0002] |
Thrust needle roller assy
|
|
| 40. |
VOE4871335
|
[0001] |
Differential side gear
|
|
| 41. |
VOE4871336
|
[0001] |
Differential side gear
|
|
| 42. |
VOE11145164
|
[0001] |
Spider
|
|
| 43. |
VOE4720606
|
[0008] |
Spacer ring
|
|
| 44. |
VOE4720616
|
[0004] |
Thrust washer
|
|
| 45. |
VOE4871334
|
[0004] |
Differential side gear
|
|
| 46. |
VOE959267
|
[0016] |
Hex. socket screw
|
|
| 47. |
VOE959241
|
[0006] |
Hex. socket screw
|
|
