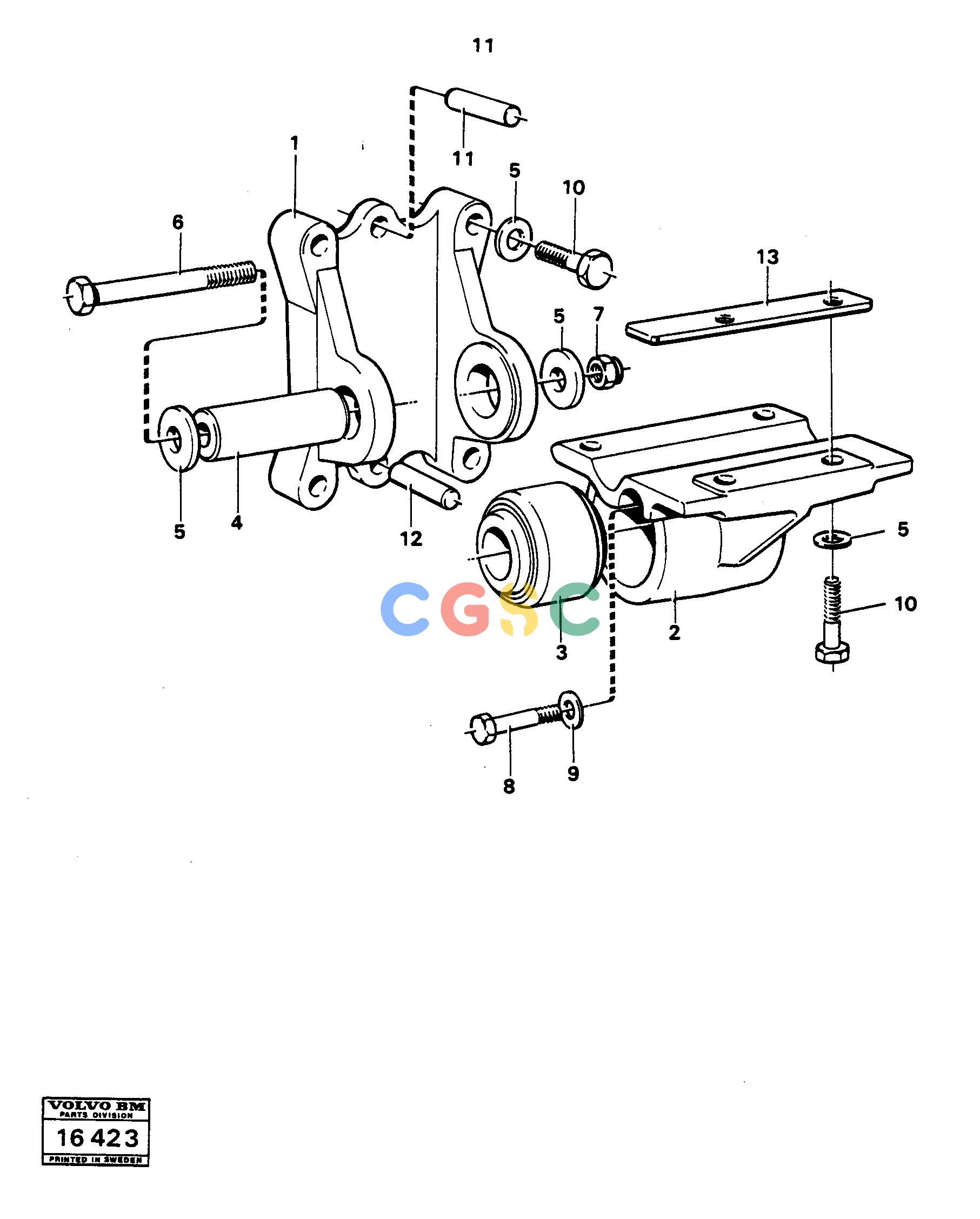

沃尔沃零件查询A25 VOLVO BM Drop box,fittingVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
434 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4737412
|
[0002] |
Sleeve
|
|
| 5. |
VOE4737411
|
[0004] |
Washer
|
|
| 6. |
VOE955380
|
[0002] |
Hexagon screw
|
|
| 7. |
VOE945884
|
[0004] |
Lock nut
|
|
| 8. |
VOE955377
|
[0002] |
Hexagon screw
|
|
| |
|
[0001] |
Bracket
|
|
| 9. |
VOE13955900
|
[0022] |
Washer
|
|
| 10. |
VOE13955366
|
[0016] |
Screw
|
|
| 11. |
VOE4737419
|
[0002] |
Pin
|
|
| 12. |
VOE950679
|
[0002] |
Pin
|
|
| 13. |
VOE4823710
|
[0002] |
Plate
|
|
| 1. |
VOE4823684
|
[0002] |
Bracket
|
|
| 2. |
VOE4823685
|
[0002] |
Bracket
|
|
| 3. |
VOE4737395
|
[0002] |
Bushing
|
|
