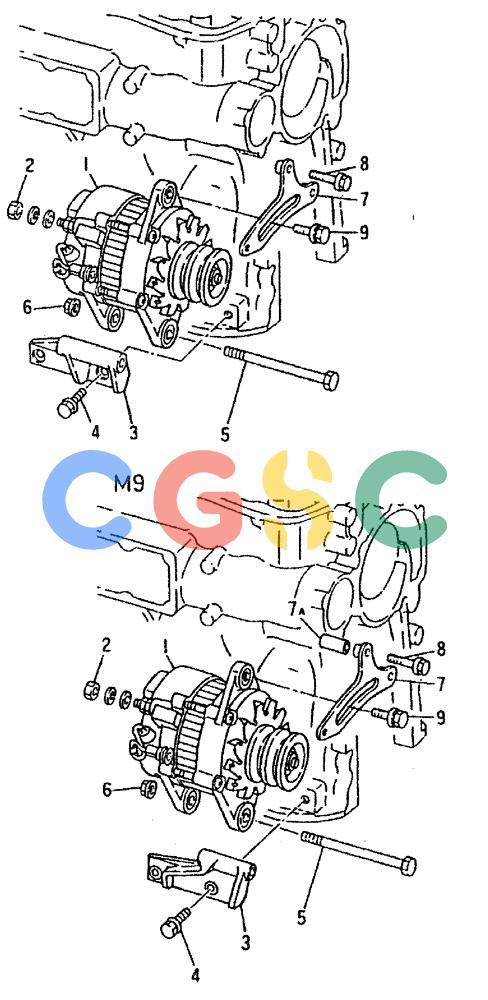

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (04-007) - ALTERNATOR GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
584 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME070120 | [1] | ALTERNATOR | KOBMEC, 24V-30A, M9 ONLY |
| . . | VAME049173 | [1] | ALTERNATOR | KOB24V-40A, M5 & M6 ONLY |
| 2. | VAMF430003 | [1] | NUT | KOBNUT 5 Superseded by part number: 135143A1 |
| . . | VAMF450403 | [1] | WASHER WASHER, SPG 5 | WASHER WASHER, SPG 5 |
| . . | VAMF450003 | [1] | WASHER PLAIN WASHER, PLAIN 5 | WASHER PLAIN WASHER, PLAIN 5 |
| 3. | VAME037469 | [1] | U-BRACKET | KOBALTERNATOR, M5 & M6 ONLY |
| . . | VAME047525 | [1] | BRACKET | KOBM9 ONLY Superseded by part number: VAME047420 |
| 4. | VAMH000726 | [2] | BOLT | KOBBOLT, FLANGE, 10 X 22 |
| 5. | VAMH000703 | [1] | BOLT | KOBBOLT, 12 X 125 |
| 6. | VAMF434106 | [1] | NUT | KOBNUT, FLANGE 12 Superseded by part number: 135085A1 |
| 7. | VAME037470 | [1] | PLATE | KOBADJUSTING, M9 ONLY |
| . . | VAME077158 | [1] | M6 ONLY | |
| . . | VAME077160 | [1] | PLATE ADJUSTING M5 ONLY | PLATE ADJUSTING M5 ONLY |
| 7A. | VAME021681 | [2] | SPACER | KOBL=20, M9 ONLY |
| 6. | VAMF140234 | [2] | SPECIAL BOLT | KOBBOLT, FLANGE, 8 X 45, M5 & M6 ONLY |
| . . | VAMF140238 | [2] | SCREW | KOBBOLT, FLANGE, 8 X 65, M9 ONLY Superseded by part number: 134967A1 |
| 9. | VAMH000372 | [1] | SCREW | KOBBOLT, W/WSR, 12 X 30 Superseded by part number: 135147A1 |
