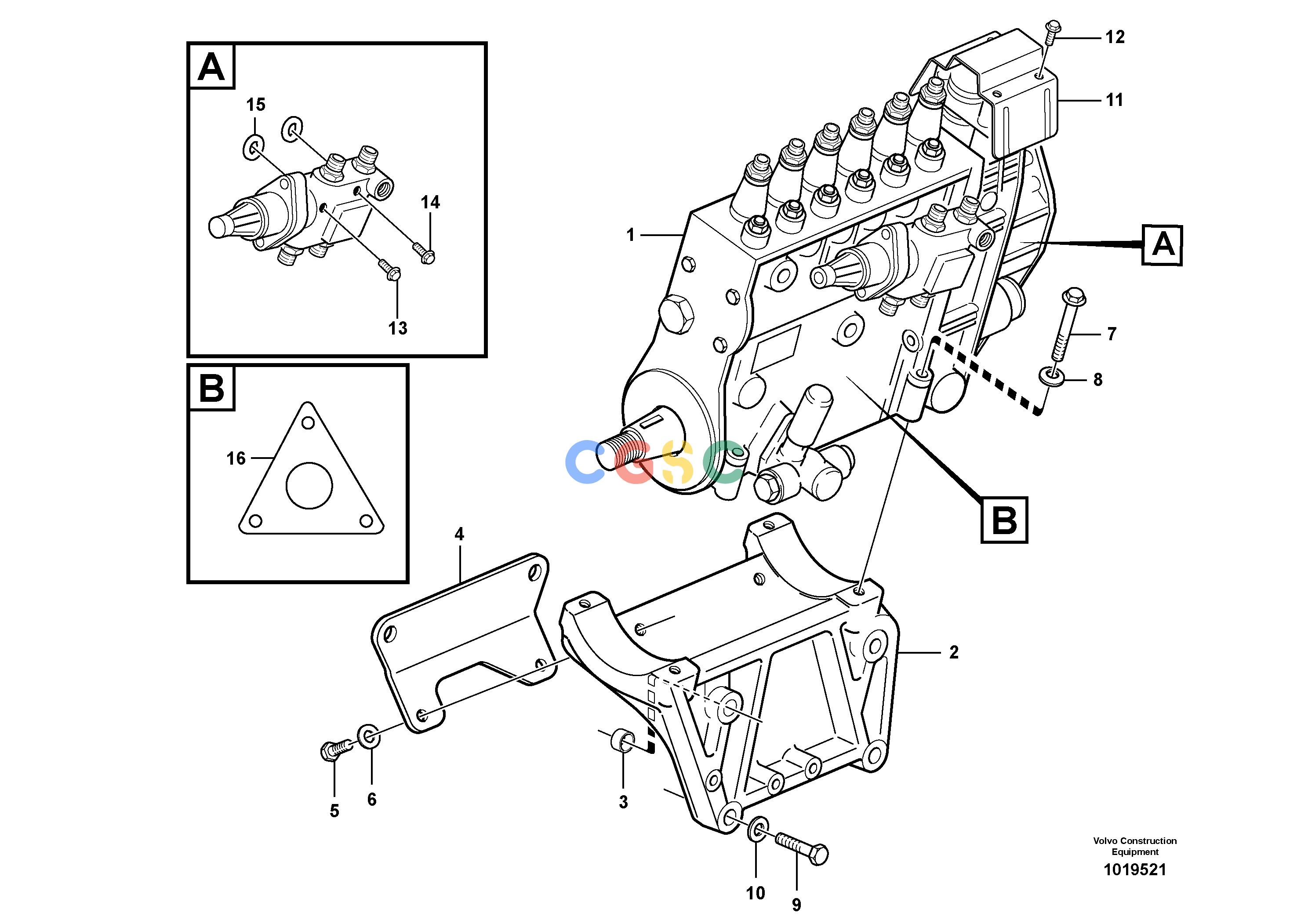

沃尔沃零件查询A25D Fuel injection pump with fitting partsS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
421 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Injection pump
|
|
| |
VOE11031497
|
[1] |
Anchorage
|
|
| 2. |
VOE11031401
|
[1] |
Anchorage
|
|
| 3. |
VOE423161
|
[2] |
Guide sleeve
|
|
| 4. |
VOE478918
|
[1] |
Support
|
|
| 5. |
VOE11162005
|
[2] |
Screw
|
|
| 6. |
VOE976945
|
[2] |
Washer
|
|
| 7. |
VOE13965223
|
[4] |
Screw
|
|
| 8. |
VOE940280
|
[4] |
Spring washer
|
|
| 9. |
VOE479696
|
[2] |
Screw
|
|
| 10. |
VOE13940097
|
[2] |
Washer
|
|
| 11. |
VOE11031425
|
[1] |
Protecting plate
|
|
| 12. |
VOE945358
|
[3] |
Flange screw
|
|
| 13. |
VOE3094592
|
[1] |
Screw
|
|
| 14. |
VOE862818
|
[1] |
Screw
|
|
| 15. |
VOE3095347
|
[2] |
Sealing ring
|
|
| 16. |
VOE863370
|
[1] |
Gasket
|
|
