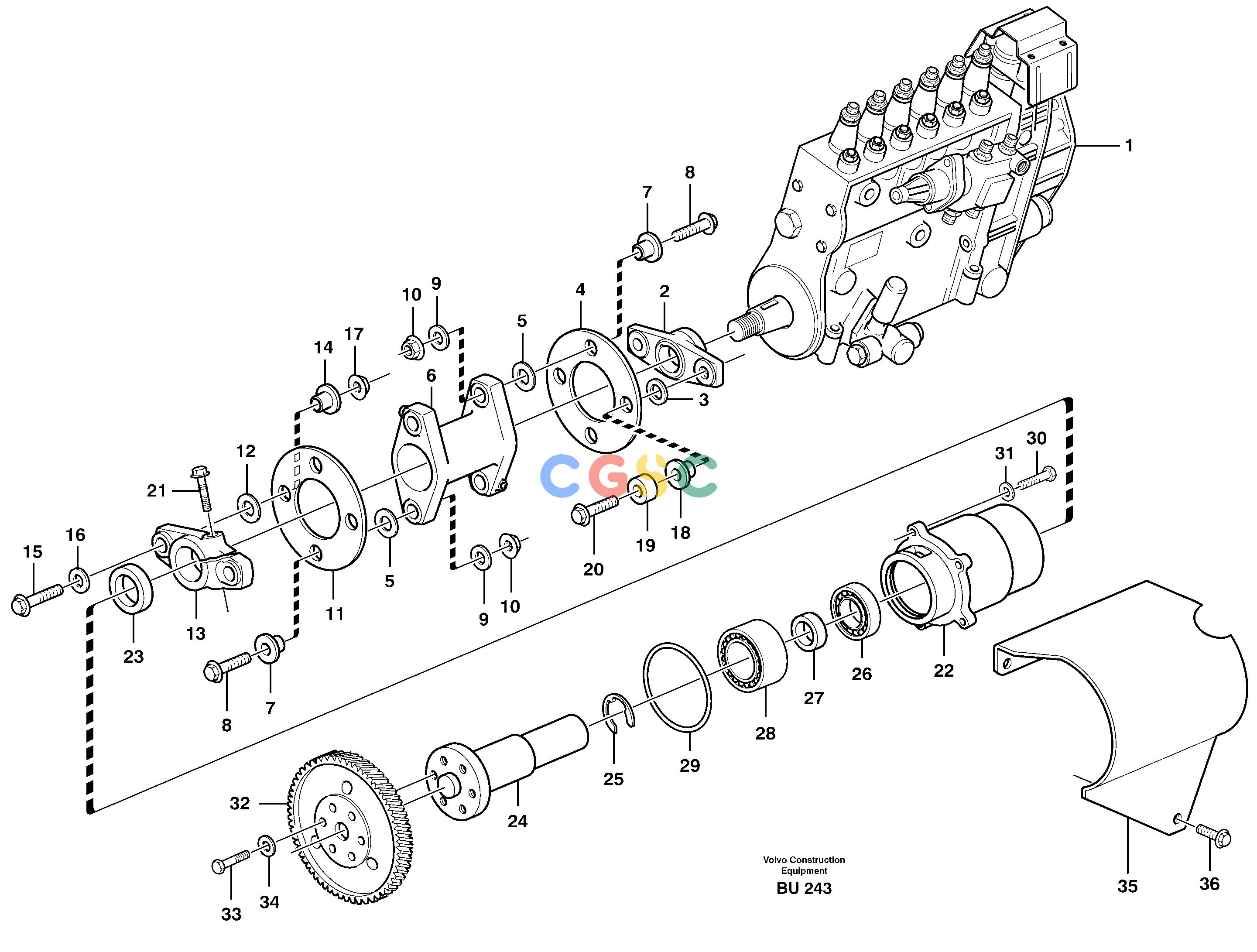

沃尔沃零件查询A25D Pump driveS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
438 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11031408
|
[1] |
Injection pump
|
|
| |
VOE3095395
|
[1] |
Stop control kit
|
|
| |
VOE3094570
|
[1] |
Overflow valve
|
|
| 2. |
VOE11162453
|
[1] |
Companion flange
|
|
| 3. |
VOE479399
|
[2] |
Washer
|
|
| |
VOE11162521
|
[1] |
Companion flange
|
|
| 4. |
VOE479458
|
[4] |
Companion disc
|
|
| 5. |
VOE479399
|
[4] |
Washer
|
|
| 6. |
VOE11999891
|
[1] |
Spacer
|
|
| 7. |
VOE478897
|
[4] |
Sleeve
|
|
| 8. |
VOE13965185
|
[4] |
Screw
|
|
| 9. |
VOE976945
|
[4] |
Washer
|
|
| 10. |
VOE13971095
|
[4] |
Flange nut
|
|
| 11. |
VOE479458
|
[4] |
Companion disc
|
|
| 12. |
VOE479399
|
[2] |
Washer
|
|
| 13. |
VOE1556186
|
[1] |
Companion flange
|
|
| 14. |
VOE478897
|
[2] |
Sleeve
|
|
| 15. |
VOE13965220
|
[2] |
Screw
|
|
| 16. |
VOE976945
|
[2] |
Washer
|
|
| 17. |
VOE13971095
|
[2] |
Flange nut
|
|
| 18. |
VOE478897
|
[2] |
Sleeve
|
|
| 19. |
VOE11162454
|
[2] |
Spacer sleeve
|
|
| 20. |
VOE13965185
|
[2] |
Screw
|
|
| 21. |
VOE1556285
|
[1] |
Screw
|
|
| 22. |
VOE478799
|
[1] |
Bearing housing
|
|
| 23. |
VOE1546221
|
[1] |
Sealing ring
|
|
| 24. |
VOE478411
|
[1] |
Shaft
|
|
| 25. |
VOE914540
|
[1] |
Retaining ring
|
|
| 26. |
VOE7011014
|
[1] |
Ball bearing
|
|
| 27. |
VOE1546132
|
[1] |
Stop ring
|
|
| 28. |
VOE184788
|
[1] |
Ball bearing
|
|
| 29. |
VOE423123
|
[1] |
Sealing ring
|
|
| 30. |
VOE13940159
|
[5] |
Screw
|
|
| 31. |
VOE13941907
|
[5] |
Washer
|
|
| 32. |
VOE478429
|
[1] |
Gear
|
|
| 33. |
VOE471534
|
[6] |
Screw
|
|
| 34. |
VOE942385
|
[6] |
Disc spring
|
|
| 35. |
VOE11162592
|
[1] |
Protecting plate
|
|
| 36. |
VOE13965175
|
[2] |
Screw
|
|
