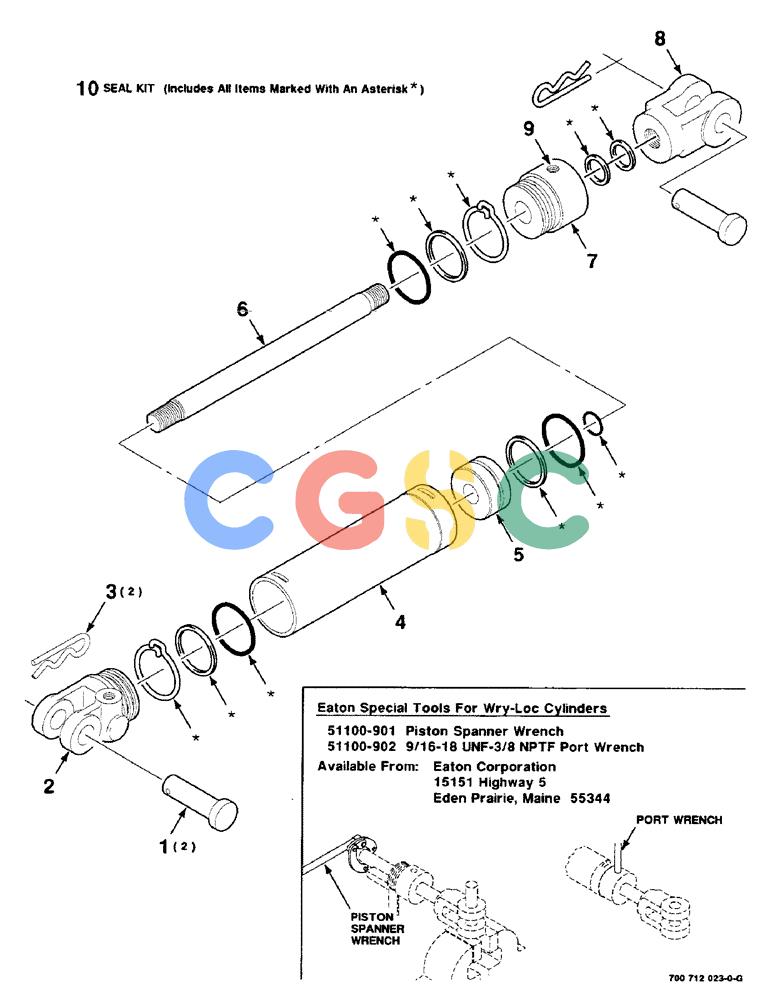

凯斯零件查询(8610) - CASE IH BALE PROCESSOR (1/86-12/00) (8-20) - CYLINDER HYDRAULIC ASSEMBLY, 700712023 CYLINDER HYDRAULIC ASSY. COMPLETE, 2-1/2" BORE X 16" STROKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700712023
|
[1] |
CYLINDER
|
CAS
- hydraulic assembly complete (2-1/2 inch bore x 16 inch stroke)
|
| 1. |
700704925
|
[2] |
CLEVIS PIN
|
IH
PIN - clevis Superseded by part number: 102910A1
|
| 2. |
700704894
|
[1] |
CYLINDER HEAD
|
CAS
HEAD WITH CLEVIS
|
| 3. |
S120261
|
[2] |
PIN
|
CAS
.148 WIRE HAIR PIN COTTER
|
| 4. |
700712116
|
[1] |
SLEEVE CYLINDER
|
CAS
BARREL - cylinder
|
| 5. |
102905A1
|
[1] |
PISTON
|
CAS
- cylinder
|
| 6. |
700704921
|
[1] |
ROD
|
HFI
- piston
|
| 7. |
102909A1
|
[1] |
BEARING
|
CAS
- cylinder rod
|
| 8. |
700704920
|
[1] |
ROD ASSY.
|
HFI
CLEVIS - rod end
|
| 9. |
700705922
|
[1] |
ORIFICE
|
HFI
|
| 10. |
H673838
|
[1] |
SEAL
|
CAS
SEAL KIT
|
