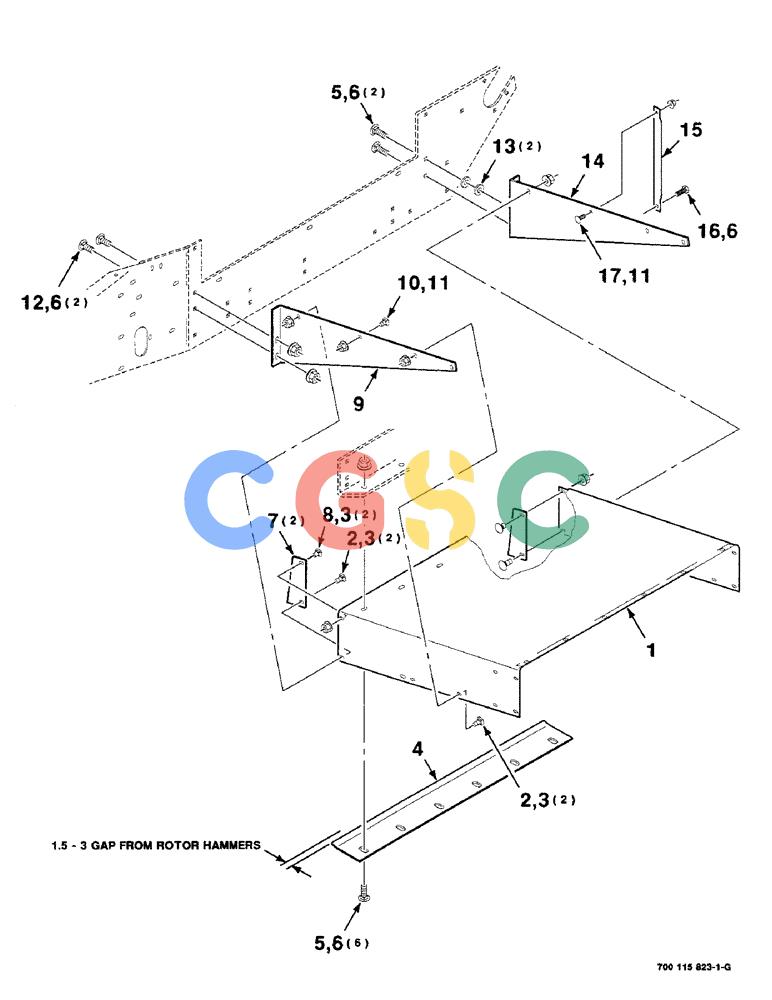

| 1. |
700117380
|
[1] |
CHUTE ASSY.
|
HFI
CHUTE - main
|
| 2. |
433-512
|
[4] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 3. |
232-5315
|
[6] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 4. |
700117387
|
[1] |
PLATE
|
HFI
- cutoff
|
| 5. |
433-824
|
[8] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 X 1-1/2 RHSNB Superseded by part number: 280420, 72187237
|
| 6. |
231-5348
|
[11] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 7. |
700117383
|
[2] |
PLATE
|
HFI
- filler
|
| 8. |
434-58
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
|
CAS
BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd Superseded by part number: 280616
|
| 9. |
700117384
|
[1] |
SUPPORT
|
HFI
- front
|
| 10. |
433-612
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 11. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 12. |
433-820
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 13. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 14. |
700117385
|
[1] |
SUPPORT
|
HFI
- rear
|
| 15. |
700117381
|
[1] |
SUPPORT
|
HFI
- pipe
|
| 16. |
413-820
|
[1] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 17. |
434-616
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
