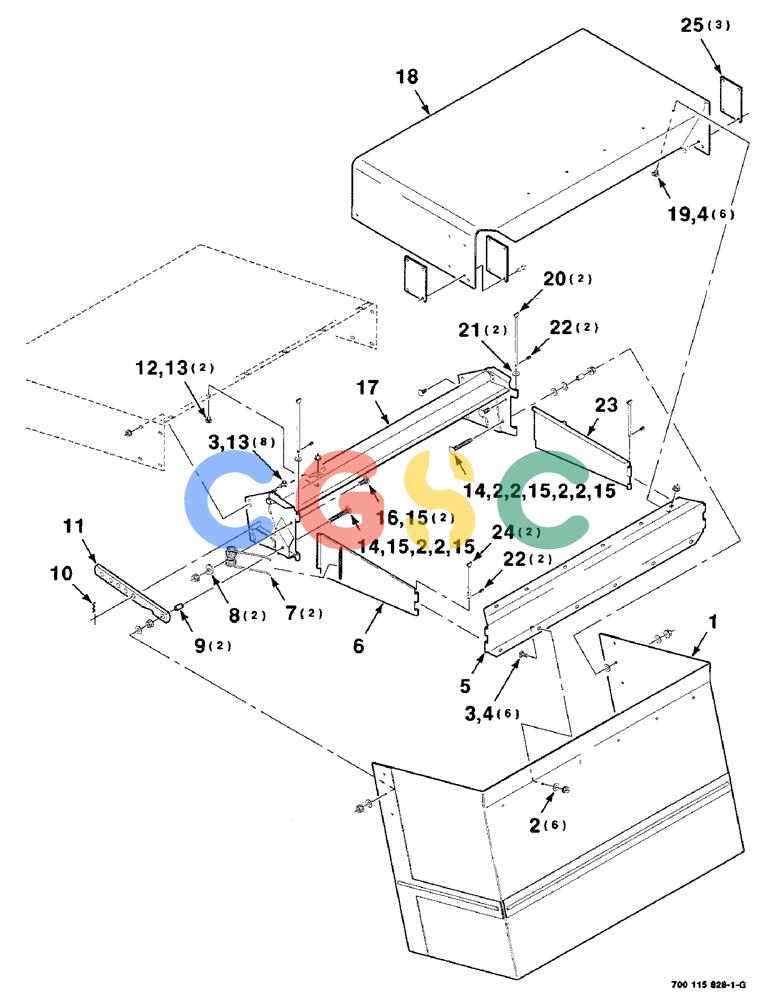

凯斯零件查询(8610) - CASE IH BALE PROCESSOR (1/86-12/00) (7-18) - CHUTE DEFLECTOR ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
480 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700708042
|
[1] |
DEFLECTOR
|
HFI
|
| 2. |
496-11041
|
[12] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 3. |
433-512
|
[14] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 4. |
231-5145
|
[12] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 5. |
700117605
|
[1] |
SUPPORT
|
HFI
|
| 6. |
700117603
|
[1] |
HINGE
|
HFI
WA - front
|
| 7. |
700707983
|
[2] |
SPRING
|
IH
- chute
|
| 8. |
261024
|
[2] |
CLIP
|
IH
|
| 9. |
441980
|
[2] |
SPACER
|
HFI
|
| 10. |
S120261
|
[1] |
PIN
|
CAS
.148 WIRE HAIR PIN COTTER
|
| 11. |
700117599
|
[1] |
STRAP
|
HFI
|
| 12. |
434-58
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
|
CAS
BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd Superseded by part number: 280616
|
| 13. |
232-5315
|
[10] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 14. |
700708803
|
[2] |
BOLT
|
CAS
3/8-16 X 2-3/4 FTRHSNB
|
| 15. |
232-5316
|
[6] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 16. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 17. |
700117581
|
[1] |
PIVOT
|
HFI
WA
|
| 18. |
700117608
|
[1] |
APRON
|
CAS
- belting
|
| 20. |
700117542
|
[2] |
PIN
|
HFI
- hinge
|
| 21. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 22. |
20948R1
|
[4] |
PIN,1/8" x 5/8", Coiled
|
IH
|
| 23. |
700117600
|
[1] |
HINGE
|
HFI
WA - rear
|
| 24. |
700117541
|
[2] |
PIN
|
HFI
- hinge
|
| 25. |
700118615
|
[3] |
PLATE
|
HFI
- decal
|
