凯斯零件查询(8610) - CASE IH BALE PROCESSOR (1/86-12/00) (9-06) - LARGE SQUARE BALE KIT, HK50585 LARGE SQUARE BALE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY Case Agriculture_凯斯Case_工程机械

凯斯零件查询(8610) - CASE IH BALE PROCESSOR (1/86-12/00) (9-06) - LARGE SQUARE BALE KIT, HK50585 LARGE SQUARE BALE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 824 次

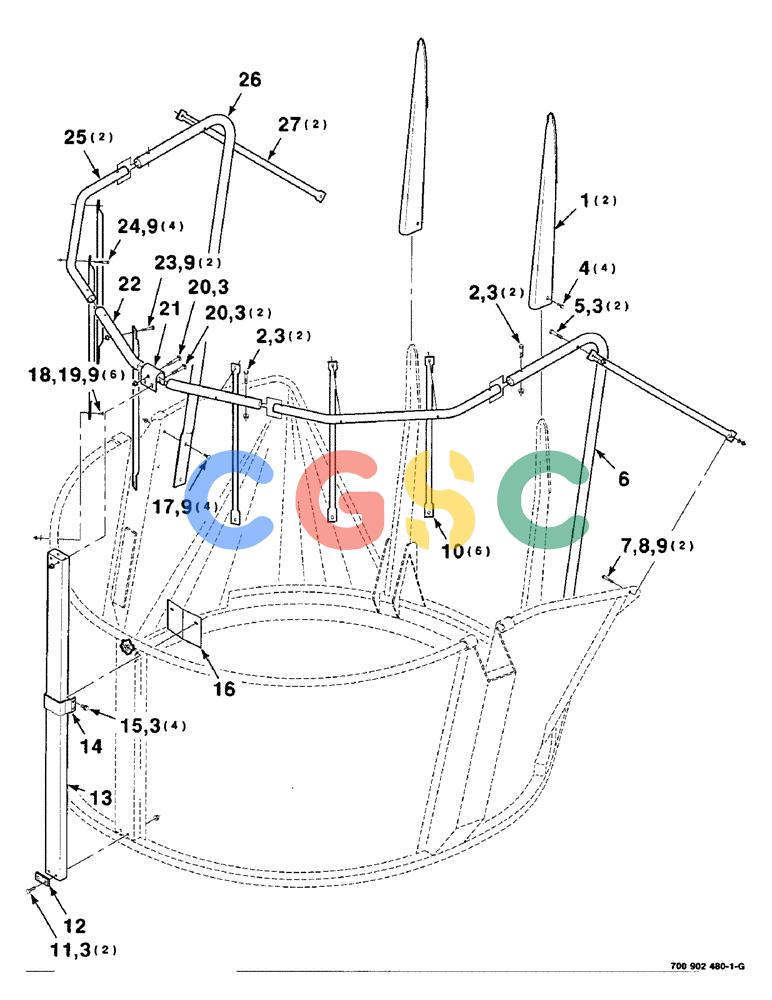

Pos.	Part No	Qty	Parts name	Comments
. .	HK50585	[1]	LARGE SQUARE BALE KIT COMPLETE
1.	700122855	[2]	TINE	HFI WA - extension
2.	413-840	[4]	BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5	CAS 1/2-13 X 2-1/2 C Superseded by part number: 87972
3.	231-5348	[15]	FLANGE NUT,Flg, 1/2"-13	CAS 1/2-13 HFTLN GR/G Superseded by part number: 86521610
4.	7702012	[4]	SELF-TAP SCREW,3/8" - 16 x 1"	CAS 3/8-16 X 1 HWHTCTS
5.	703736	[2]	BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5	CAS 1/2-13 X 2-3/4 C
6.	700122863	[1]	PIPE	HFI - rear, left
7.	413-636	[2]	BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5	CAS Superseded by part number: 88546, 72187212
8.	496-11041	[2]	WASHER,13/32" x 13/16" x .065", HDN	CAS 3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
9.	232-5316	[18]	FLANGE NUT,Flg, 3/8"-16	CAS 3/8-16 HFTLN GR/G Superseded by part number: 86521609
10.	700122857	[6]	PIPE	HFI - wall
11.	413-824	[2]	BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5	CAS Superseded by part number: 87689, 72187216
12.	700122848	[1]	PLATE	HFI - support
13.	700122854	[1]	BEAM	HFI - center
14.	700122847	[1]	CLAMP	HFI
15.	360-816	[4]	BOLT,Hex, 1/2" - 13 x 1", Gr 8	CAS 1/2-13 X 1 HFS GR8 Superseded by part number: 87034823
16.	700122865	[1]	PLATE	HFI - cover
17.	433-620	[4]	CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5	CAS BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
18.	434-616	[6]	CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5	CAS 3/8-16 X 1 RHSNB Superseded by part number: 80280503
19.	700710049	[6]	WASHER	CAS 3/8 FENDER WASHER
20.	433-852	[3]	CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5	CAS 1/2-13 X 3-1/4 RHSNB Superseded by part number: 280268
21.	700122858	[1]	CLAMP	HFI
22.	700122862	[1]	PIPE	HFI - rail, center
23.	433-644	[2]	CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5	CAS 3/8-16 X 2-3/4 RHSNB Superseded by part number: 280628
24.	433-636	[4]	CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5	CAS 3/8-16 X 2-1/4 RHSNB Superseded by part number: 280514
25.	700122860	[2]	PIPE	HFI - rail, side
26.	700122864	[1]	PIPE	HFI - rear, right
27.	700122859	[2]	PIPE	HFI - brace, rear
