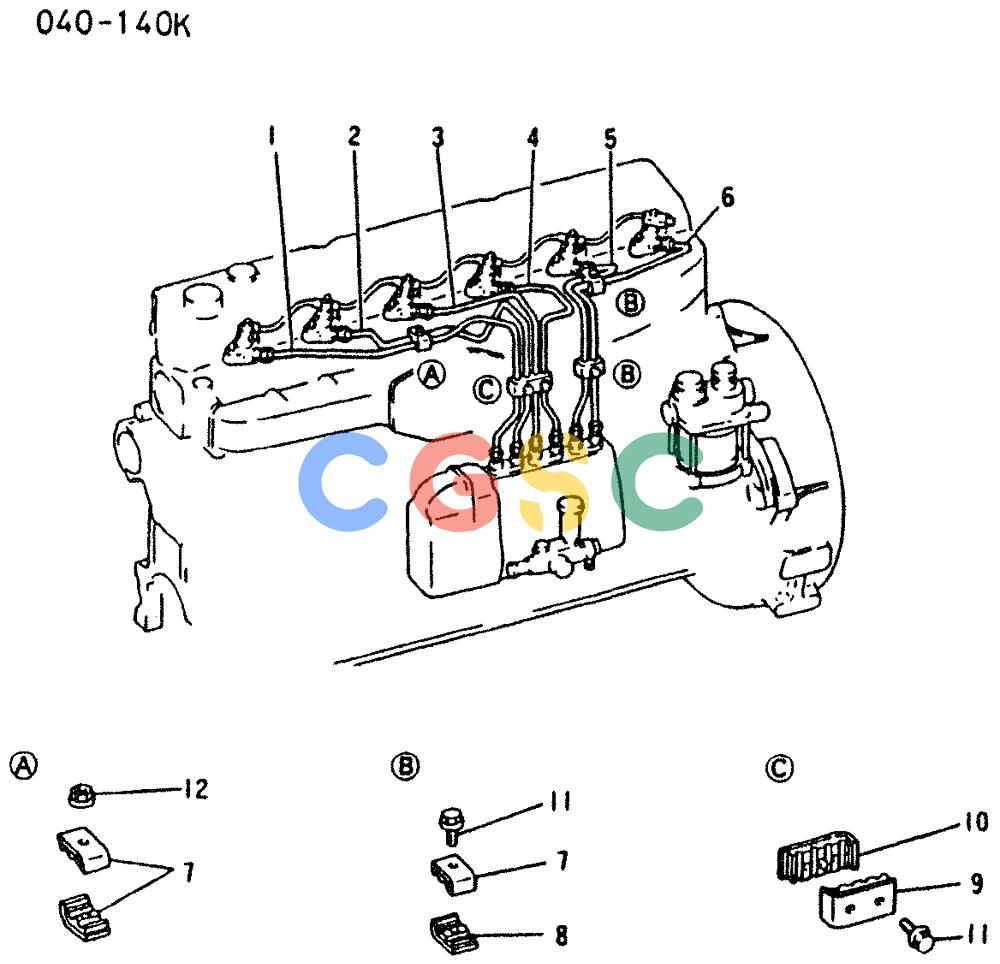

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (02-011) - FUEL INJECTION PIPE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
881 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME047438 | [1] | PIPE.INJECTION NO.l | |
| 2. | VAME047439 | [1] | PIPE,INJECTION NO.2 | |
| 3. | VAME047440 | [1] | PIPE,INJECTION N0.3 | |
| 4. | VAME047441 | [1] | PIPE,INJECTION NO.4 | |
| 5. | VAME047442 | [1] | PIPE,INJECTION HO.5 | |
| 6. | VAME047443 | [1] | PIPE,INJECTION NO.6 | |
| 7. | VAMH020258 | [4] | CLAMP | KOBCLAMP Superseded by part number: 134717A1 |
| 8. | VAMH020259 | [2] | CLAMP | KOBCLAMP Superseded by part number: 134718A1 |
| 9. | VAMH020260 | [1] | CLAMP | KOBCLAMP |
| 10. | VAMH021252 | [1] | CLAMP | KOBCLAMP |
| 11. | VAMF240029 | [4] | SCREW | KOBB0LT,W/WSR 6X25 |
| 12. | VAMF434103 | [1] | NUT | KOBNUT,FLANGE 6 |
