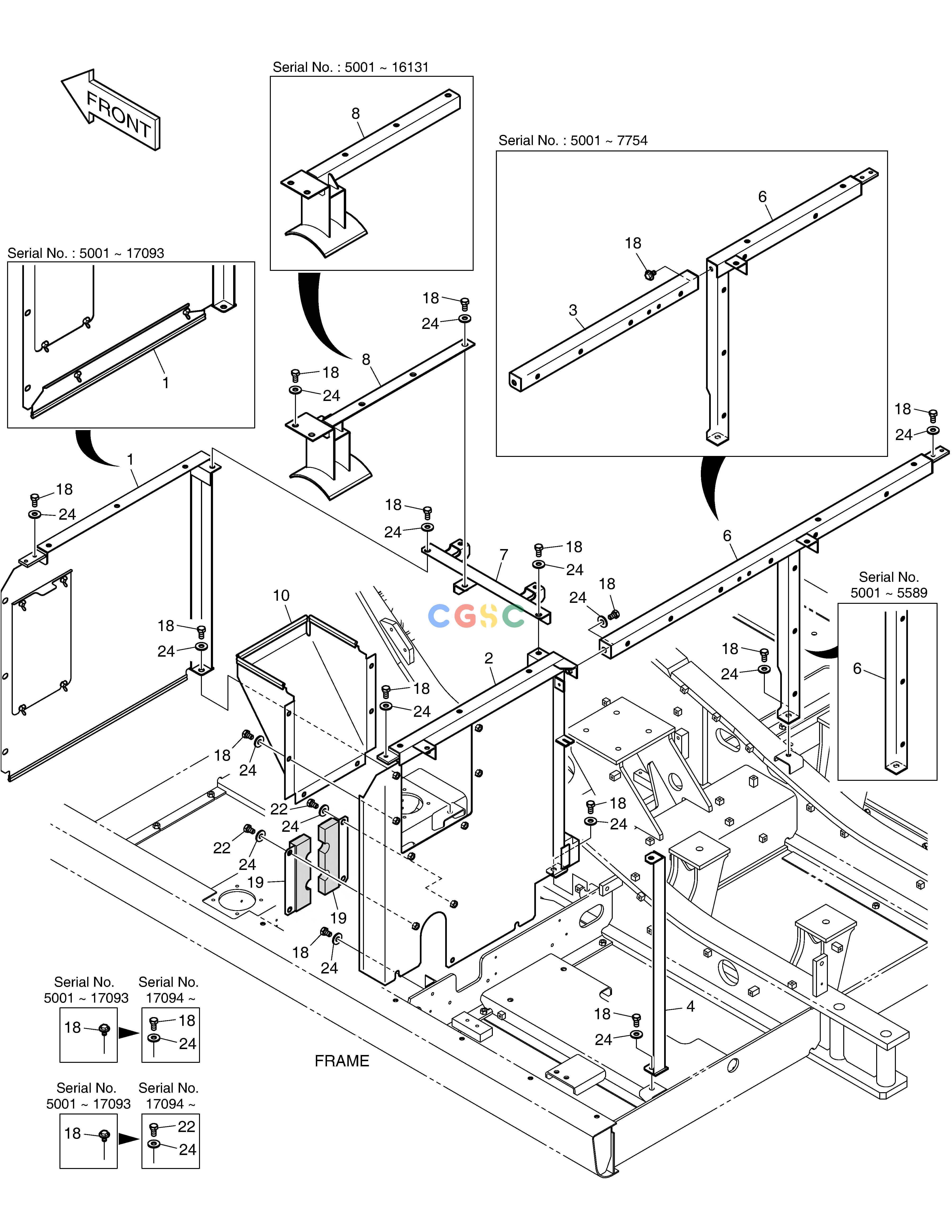

斗山零件查询SUPPORT DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
419 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110958-00014
|
[-] |
|
|
| -. |
K1045990B
|
[-] |
SUPPORT ASS'Y
|
|
| 1. |
110958-03426
|
[1] |
|
|
| 1. |
110958-03426A
|
[1] |
|
|
| 1. |
K1038954B
|
[1] |
SUPPORT
|
|
| 10. |
K1039465
|
[1] |
COVER;BAFFLE
|
110502-00025
|
| 10. |
110502-00025
|
[1] |
|
|
| 10. |
110502-00025A
|
[1] |
|
|
| 18. |
DS0025015
|
[26] |
BOLT
|
|
| 18. |
DS0025015
|
[25] |
BOLT
|
|
| 18. |
S0515066
|
[25] |
BOLT
|
|
| 19. |
K1039427A
|
[2] |
COVER
|
|
| 19. |
110502-00524
|
[2] |
|
|
| 19. |
110502-00524A
|
[2] |
|
|
| 2. |
110958-00097
|
[1] |
|
110958-00097A
|
| 2. |
110958-00097A
|
[1] |
|
|
| 2. |
110958-00097B
|
[1] |
|
|
| 2. |
K1045903A
|
[1] |
SUPPORT
|
|
| 22. |
DS0025022
|
[4] |
BOLT
|
|
| 22. |
S0514866
|
[4] |
BOLT
|
|
| 24. |
120804-00079
|
[29] |
WASHER
|
|
| 3. |
K1045907A
|
[1] |
SUPPORT
|
|
| 4. |
110958-04028
|
[1] |
|
|
| 4. |
K1030750A
|
[1] |
SUPPORT
|
|
| 6. |
110958-00015
|
[1] |
|
|
| 6. |
110958-01055
|
[1] |
|
|
| 6. |
110958-03481
|
[1] |
|
|
| 6. |
110958-03481A
|
[1] |
|
|
| 6. |
110958-03481B
|
[1] |
|
|
| 6. |
K1030529A
|
[1] |
SUPPORT
|
110958-00015
|
| 7. |
110958-00436
|
[1] |
|
|
| 7. |
110958-00436A
|
[1] |
|
|
| 7. |
K1030506B
|
[1] |
SUPPORT
|
|
| 8. |
110958-00435
|
[1] |
|
|
| 8. |
110958-00435A
|
[1] |
|
|
| 8. |
195-03434E
|
[1] |
SUPPORT
|
|
