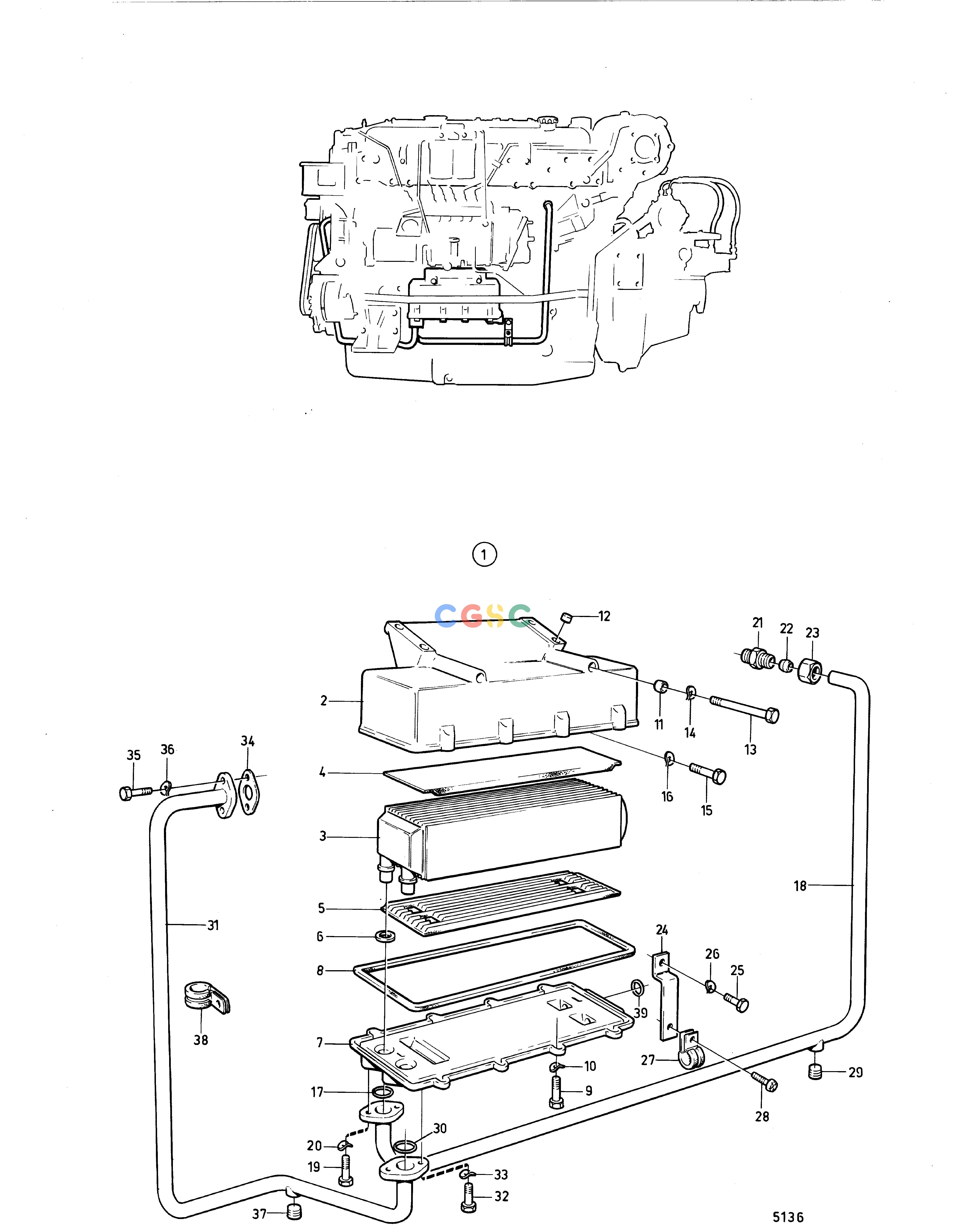

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ECooling SystemOil Cooler and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 18 02月, 2025，浏览：
144 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
466644
|
[1] |
Oil cooler
|
|
| 2. |
466645
|
[1] |
Housing
|
|
| 3. |
466519
|
[1] |
Insert
|
|
| 4. |
466674
|
[1] |
Seal
|
|
| 5. |
466675
|
[1] |
Seal
|
|
| 6. |
466521
|
[2] |
Sealing ring
|
|
| 7. |
466647
|
[1] |
Cover
|
|
| 8. |
471465
|
[1] |
Sealing ring
|
|
| 9. |
940159
|
[8] |
Hexagon screw
|
|
| 10. |
955894
|
[1] |
Washer
|
|
| 11. |
423161
|
[2] |
Guide sleeve
|
|
| 12. |
417588
|
[1] |
Guide sleeve
|
See group 2C
|
| 13. |
959811
|
[2] |
Screw
|
|
| 14. |
955898
|
[2] |
Washer
|
|
| 15. |
940115
|
[2] |
Hexagon screw
|
|
| 16. |
942336
|
[2] |
Spring washer
|
|
| 17. |
944988
|
[1] |
O-ring
|
|
| 18. |
843936
|
[1] |
Coolant pipe
|
|
| 19. |
955525
|
[2] |
Hexagon screw
|
|
| 20. |
941907
|
[2] |
Spring washer
|
|
| 21. |
943192
|
[1] |
Nipple
|
|
| 22. |
956972
|
[1] |
Ferrule
|
|
| 23. |
956986
|
[1] |
Fitting nut
|
|
| 24. |
466804
|
[1] |
Bracket
|
|
| 25. |
940133
|
[1] |
Hexagon screw
|
|
| 26. |
942336
|
[1] |
Spring washer
|
|
| 27. |
952630
|
[1] |
Clamp
|
|
| 28. |
950045
|
[1] |
Cross recessed screw
|
|
| 29. |
180759
|
[1] |
Plug
|
|
| 30. |
944988
|
[1] |
O-ring
|
|
| 31. |
843937
|
[1] |
Coolant pipe
|
|
| 32. |
955525
|
[2] |
Hexagon screw
|
|
| 33. |
941907
|
[2] |
Spring washer
|
|
| 34. |
420171
|
[1] |
Gasket, gasket
|
TAMD70D, AQD70D
|
| 34. |
|
|
|
TAMD70E
|
| 35. |
955524
|
[2] |
Hexagon screw
|
|
| 36. |
941907
|
[2] |
Spring washer
|
|
| 37. |
180759
|
[1] |
Plug
|
|
| 38. |
942810
|
[1] |
Clamp
|
|
| 39. |
943177
|
[4] |
O-ring
|
See group 2A
|
