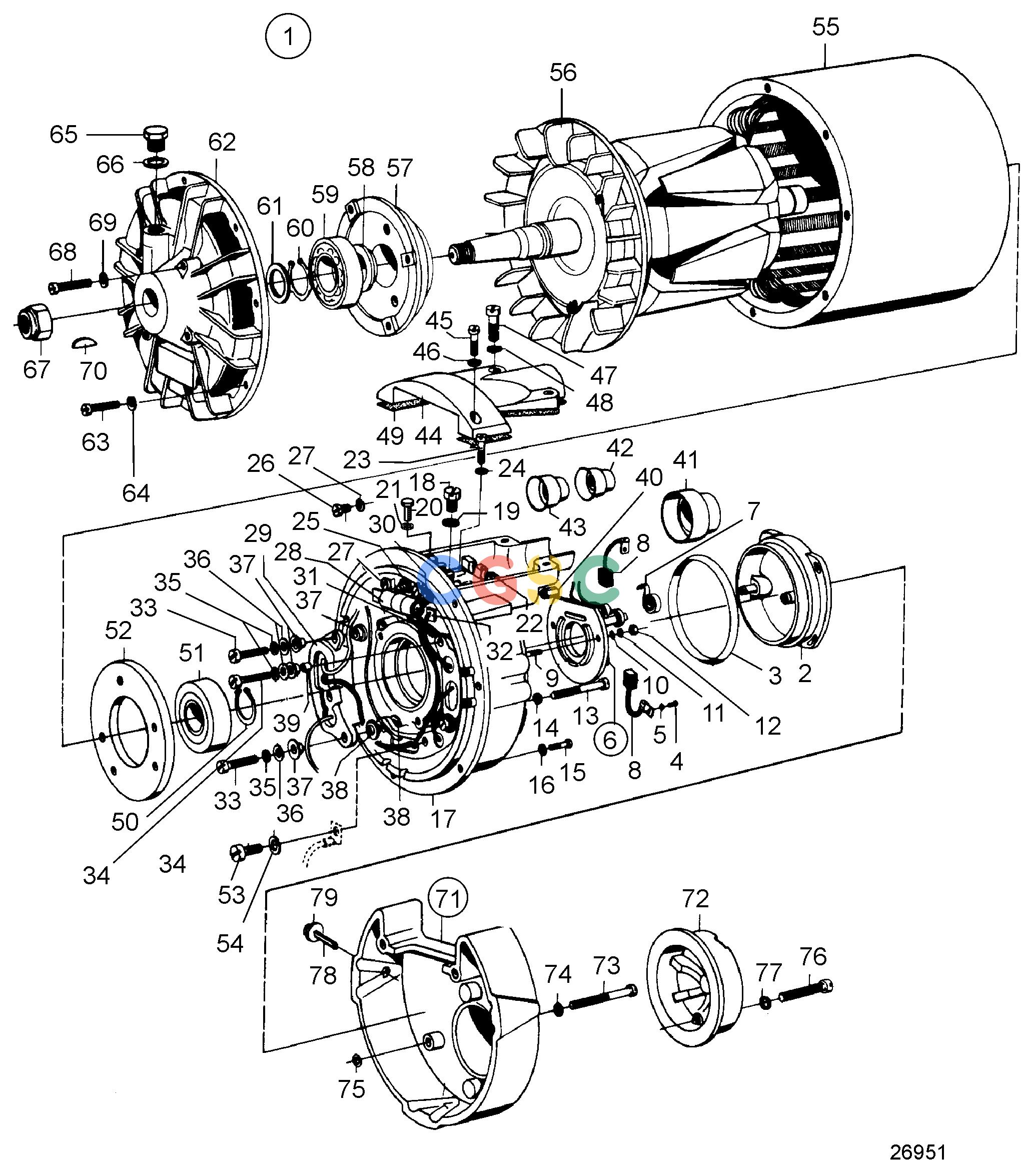

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
713 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
823765
|
[1] |
Alternator
|
24V60A
|
| 2. |
242142
|
[1] |
Cover
|
|
| 3. |
242771
|
[1] |
Sealing ring
|
|
| 4. |
242772
|
[2] |
Screw
|
|
| 5. |
955916
|
[2] |
Spring washer
|
|
| 6. |
236864
|
[1] |
Retainer
|
|
| 7. |
242134
|
[2] |
Spring
|
|
| 8. |
242135
|
[1] |
Brush set
|
|
| 9. |
242138
|
[2] |
Stud
|
|
| 10. |
242139
|
[2] |
Washer
|
|
| 11. |
955917
|
[2] |
Spring washer
|
|
| 12. |
242773
|
[2] |
Nut
|
|
| 13. |
236852
|
[3] |
Cross recessed screw
|
|
| 14. |
941905
|
[3] |
Spring washer
|
|
| 15. |
242119
|
[7] |
Screw
|
|
| 16. |
941905
|
[7] |
Spring washer
|
|
| 17. |
242774
|
[1] |
Bearing cover
|
|
| 18. |
236859
|
[2] |
Hexagon screw
|
|
| 19. |
242775
|
[2] |
Spring washer
|
|
| 20. |
242131
|
[3] |
Screw
|
|
| 21. |
941905
|
[3] |
Spring washer
|
|
| 22. |
242779
|
[1] |
Cable connection
|
|
| 23. |
236839
|
[2] |
Screw
|
|
| 24. |
941905
|
[2] |
Spring washer
|
|
| 25. |
242780
|
[3] |
Field terminal
|
|
| 26. |
236841
|
[3] |
Screw
|
|
| 27. |
955916
|
[3] |
Spring washer
|
|
| 28. |
242782
|
[1] |
Capacitor
|
|
| 29. |
242781
|
[3] |
Diode retainer
|
|
| 30. |
236856
|
[1] |
Cable
|
|
| 31. |
236857
|
[3] |
Cable
|
|
| 32. |
242783
|
[2] |
Connector
|
|
| 33. |
236851
|
[3] |
Screw
|
|
| 34. |
236852
|
[1] |
Cross recessed screw
|
|
| 35. |
941905
|
[4] |
Spring washer
|
|
| 36. |
242784
|
[4] |
Washer
|
|
| 37. |
236853
|
[7] |
Insulating bushing
|
|
| 38. |
236853
|
[2] |
Insulating bushing
|
|
| 39. |
236854
|
[1] |
Sleeve
|
|
| 40. |
242129
|
[4] |
Nut
|
|
| 41. |
242132
|
[1] |
Bellows
|
|
| 42. |
242768
|
[1] |
Ferrule
|
|
| 43. |
242769
|
[1] |
Ferrule
|
|
| 44. |
242786
|
[1] |
Cover
|
|
| 45. |
242133
|
[2] |
Screw
|
|
| 46. |
242765
|
[2] |
Spring washer
|
|
| 47. |
236863
|
[2] |
Screw
|
|
| 48. |
941905
|
[2] |
Spring washer
|
|
| 49. |
242787
|
[1] |
Gasket
|
|
| 50. |
236877
|
[1] |
Lock ring
|
|
| 51. |
181335
|
[1] |
Ball bearing
|
|
| 52. |
236875
|
[1] |
Retainer
|
|
| 53. |
242788
|
[3] |
Screw
|
|
| 54. |
242765
|
[3] |
Spring washer
|
|
| 55. |
242789
|
[1] |
Stator
|
|
| 56. |
236874
|
[1] |
Rotor
|
|
| 57. |
242124
|
[1] |
Plate
|
|
| 58. |
242791
|
[1] |
Spacer ring
|
|
| 59. |
242120
|
[1] |
Roller bearing
|
|
| 60. |
242121
|
[1] |
Lock ring
|
|
| 61. |
242122
|
[1] |
Sealing ring
|
|
| 62. |
242793
|
[1] |
Bearing shield
|
|
| 63. |
242119
|
[8] |
Screw
|
|
| 64. |
941905
|
[8] |
Spring washer
|
|
| 65. |
242794
|
[1] |
Plug
|
|
| 66. |
809395
|
[1] |
Washer
|
|
| 67. |
242795
|
[1] |
Nut retainer
|
|
| 68. |
242123
|
[4] |
Screw
|
|
| 69. |
941905
|
[4] |
Spring washer
|
|
| 70. |
160807
|
[1] |
Woodruff key
|
|
| 71. |
242821
|
[1] |
Dust cover
|
|
| 72. |
242142
|
[1] |
Cover
|
|
| 73. |
236872
|
[4] |
Screw
|
|
| 74. |
941905
|
[4] |
Spring washer
|
|
| 75. |
955978
|
[4] |
O-ring
|
|
| 76. |
242796
|
[2] |
Screw
|
|
| 77. |
242765
|
[2] |
Spring washer
|
|
| 78. |
242797
|
[1] |
Rivet
|
|
| 79. |
242798
|
[1] |
Washer
|
|
