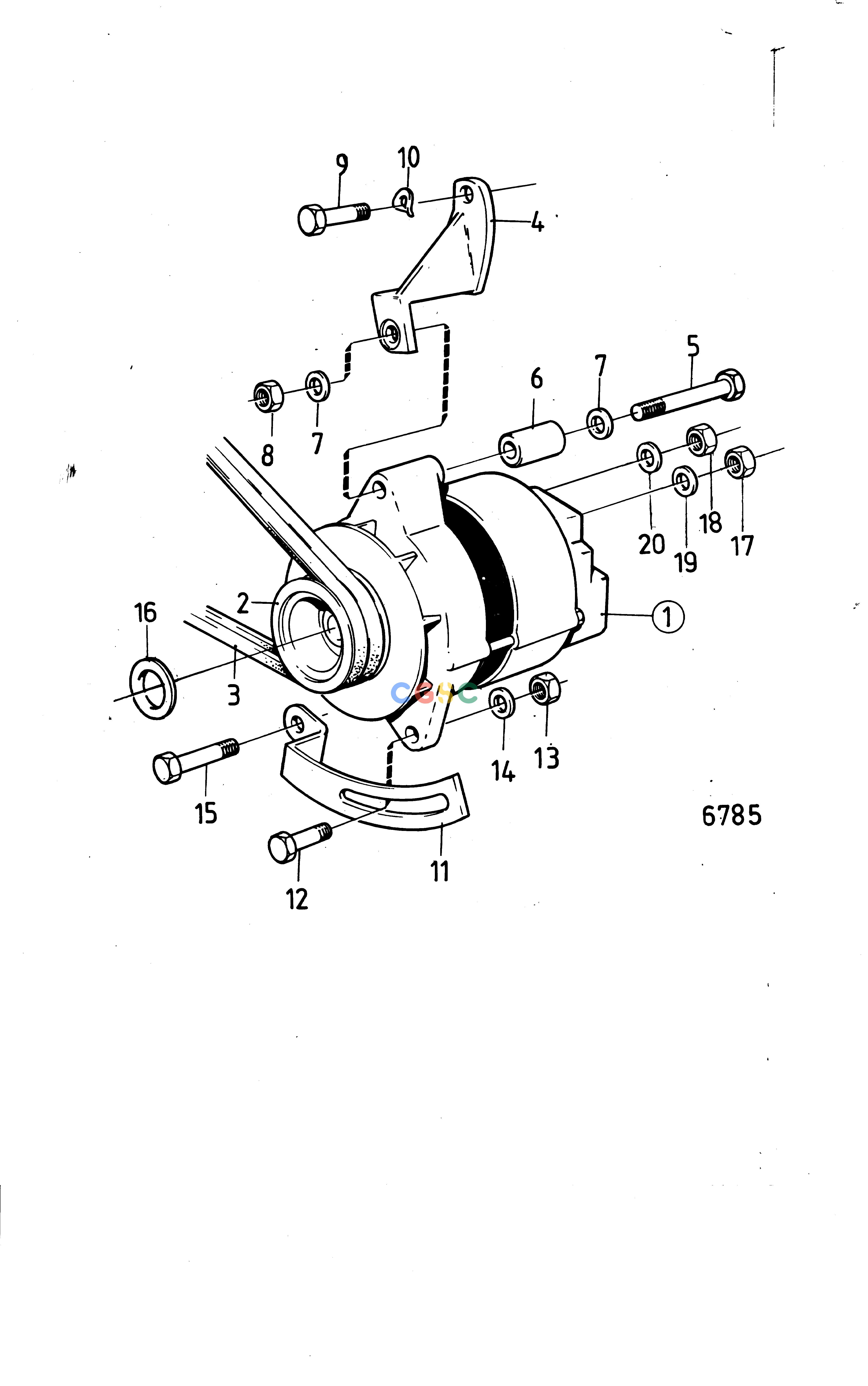

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EElectrical SystemAlternator and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
357 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
841765
|
[1] |
Alternator
|
12V 50A
|
| 1. |
858838
|
[1] |
Alternator
|
|
| 1. |
858840
|
[1] |
Governor
|
|
| 1. |
840632
|
[1] |
Brush retainer
|
|
| 1. |
858956
|
[1] |
Cable terminal
|
|
| 1. |
845940
|
[1] |
Alternator
|
24V 55A
|
| 1. |
849563
|
[1] |
Alternator
|
|
| 1. |
849562
|
[1] |
Governor
|
|
| 2. |
841812
|
[1] |
Pulley
|
|
| 3. |
958350
|
[1] |
V-belt
|
|
| 4. |
824333
|
[1] |
Bracket
|
|
| 5. |
959806
|
[1] |
Hexagon screw
|
|
| 6. |
824334
|
[1] |
Spacer sleeve
|
|
| 7. |
955896
|
[2] |
Washer
|
|
| 8. |
950355
|
[1] |
Lock nut
|
|
| 9. |
940161
|
[2] |
Hexagon screw
|
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
838073
|
[1] |
Tensioner
|
|
| 12. |
940186
|
[1] |
Hexagon screw
|
|
| 13. |
950353
|
[1] |
Lock nut
|
|
| 14. |
191172
|
[1] |
Washer
|
|
| 15. |
955533
|
[1] |
Hexagon screw
|
|
| 16. |
955900
|
[1] |
Washer
|
|
| 17. |
955780
|
[1] |
Hexagon nut
|
M5
|
| 18. |
955781
|
[1] |
Hexagon nut
|
M6
|
| 19. |
941905
|
[1] |
Spring washer
|
|
| 20. |
941906
|
[1] |
Spring washer
|
|
