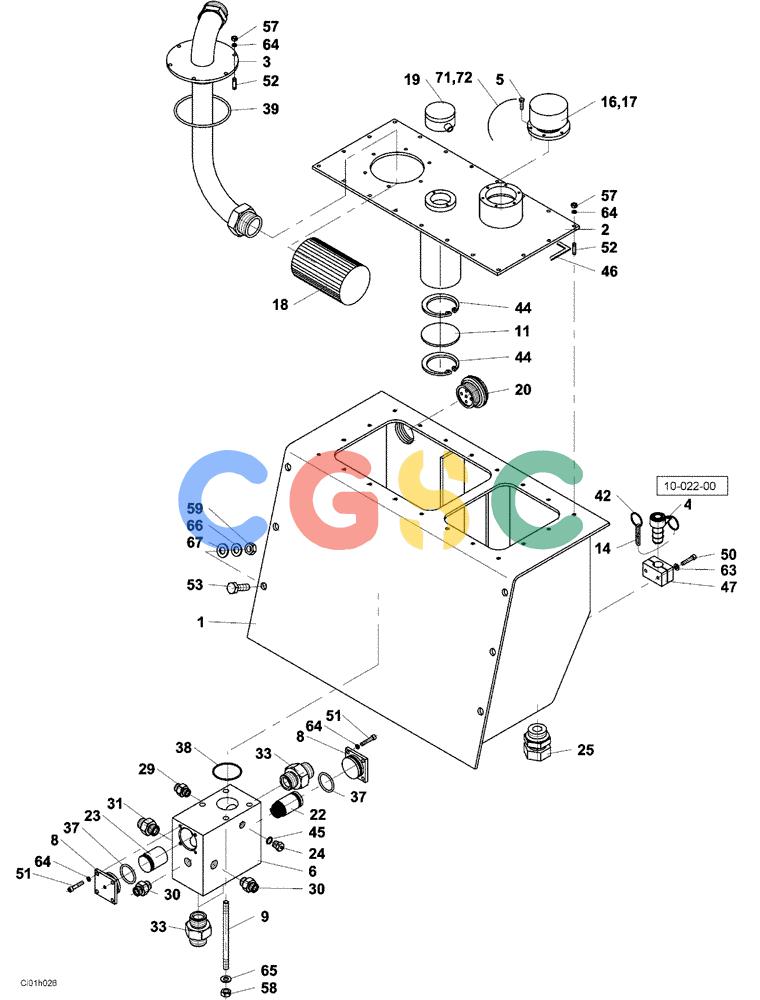

纽荷兰零件查询(CV2000) - VIBRATORY ROLLER (10-001-00[01]) - HYDRAULIC RESERVOIR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
225 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104642 | [1] | TANK | STA |
| 2. | ND030904 | [1] | COVER | STA |
| 3. | ND104725 | [1] | HOLDER | STA |
| 4. | ND098322 | [1] | HYD CONNECTOR | STA |
| 5. | ND054246 | [1] | BOLT | STA |
| 6. | ND094524 | [1] | JUNCTION BOX | STA |
| 8. | ND096324 | [2] | PLUG | STA |
| 9. | ND098274 | [4] | STUD | STA |
| 11. | ND054261 | [1] | SLEEVE | STA |
| 14. | ND103192 | [1] | LINK CHAIN | STA |
| 16. | ND065471 | [1] | CAP | STA |
| 17. | ND065473 | [1] | ADAPTER | STA |
| 18. | ND067790 | [1] | FILTER STRAINER | STA |
| 19. | ND064905 | [1] | LEVEL GAUGE | STA |
| 20. | ND070150 | [1] | LEVEL GAUGE | STA |
| 22. | ND064457 | [1] | THERMOSTAT | STA |
| 23. | ND067777 | [1] | VALVE | STA |
| 24. | ND098754 | [1] | SENSOR | STA |
| 25. | ND067773 | [1] | COCK | STA |
| 29. | ND062154 | [1] | HYD CONNECTOR | STA |
| 30. | ND062110 | [2] | HYD CONNECTOR | STA |
| 31. | ND062131 | [1] | FITTING | STA |
| 33. | ND062162 | [3] | HYD CONNECTOR | STA |
| 37. | ND079935 | [2] | O-RING | STA |
| 38. | ND079937 | [1] | O-RING | STA |
| 39. | ND079938 | [1] | O-RING | STA |
| 42. | ND073401 | [1] | RING | STA |
| 44. | ND069890 | [2] | SNAP RING | STA |
| 45. | ND073390 | [1] | SEALING RING | STASEALRING |
| 46. | ND103221 | [1] | SEALING STRIP | STA |
| 47. | ND064814 | [1] | CLAMP | STA |
| 50. | ND024234 | [2] | BOLT | STA |
| 51. | ND024229 | [8] | BOLT | STA |
| 52. | ND021710 | [26] | STUD | STA |
| 53. | ND021209 | [6] | BOLT | STA |
| 57. | ND021847 | [26] | NUT | STA |
| 58. | ND021849 | [4] | NUT | STA Superseded by part number: ND034088 |
| 59. | ND021850 | [6] | NUT | STA |
| 63. | ND029248 | [2] | WASHER | STA |
| 64. | ND029309 | [30] | SPRING WASHER | STA |
| 65. | ND035941 | [4] | WASHER | STA |
| 66. | ND035942 | [6] | WASHER | STA |
| 67. | ND029251 | [6] | WASHER | STA |
| 71. | ND037453 | [1] | LEADSEAL | STA |
| 72. | ND100090 | [1] | CABLE | STA |
