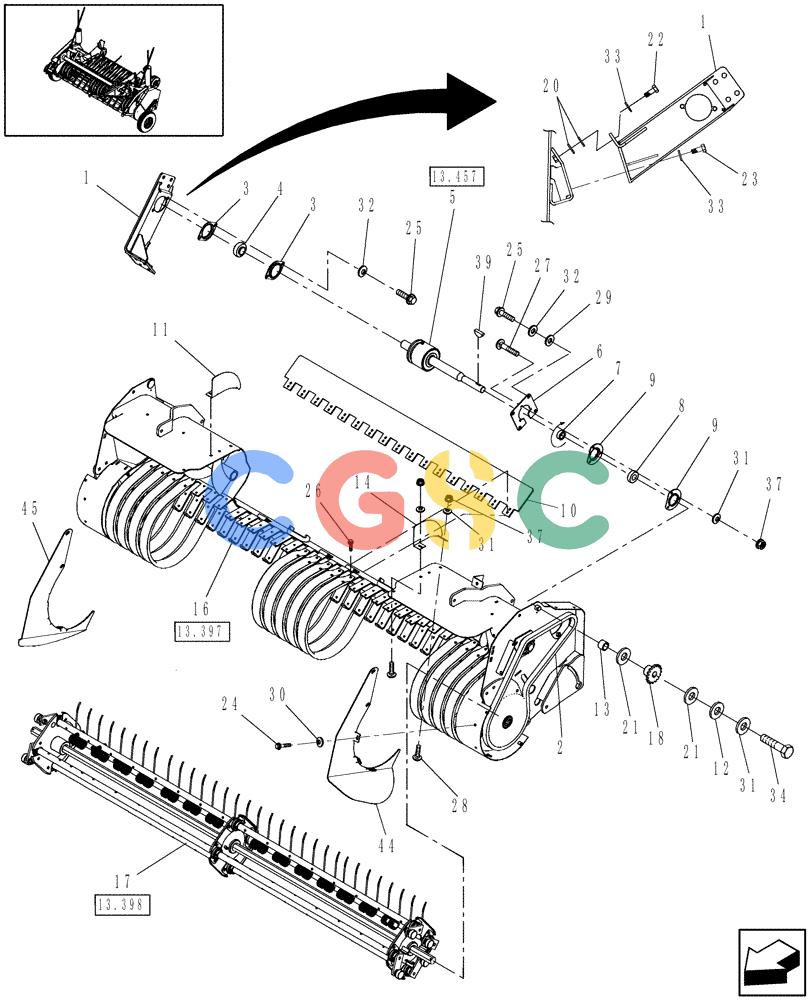

| 1. |
87653851
|
[1] |
LIFT ARM
|
NH
|
| 2. |
86552479
|
[1] |
CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm
|
GI
|
| 3. |
87106572
|
[2] |
FLANGE
|
GI
Superseded by part number: 84447186
|
| 4. |
84484181
|
[1] |
BALL BEARING,31.75mm ID x 62mm OD x 18mm W
|
GI
|
| 4. |
84484181GV
|
[1] |
BEARING ASSY
|
MKT
Value, Ball Bearing
|
| 5. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Overrun Clutch
|
| 6. |
87654729
|
[1] |
PLATE
|
NH
|
| 7. |
38260
|
[1] |
COLLAR
|
GI
Superseded by part number: 87431217
|
| 8. |
574844
|
[1] |
BALL BEARING,25.4mm ID x 52mm OD x 15mm W
|
NH
Superseded by part number: 84330070
|
| 9. |
86603075
|
[2] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
|
| 10. |
87050285
|
[1] |
FLOOR,260mm W x 1150mm L, Polyurethane
|
PA
Superseded by part number: 47864510, 87577839
|
| 11. |
87654801
|
[1] |
SHIELD
|
NH
RH
|
| 12. |
87654824
|
[1] |
WASHER
|
NH
|
| 13. |
87654833
|
[1] |
SPACER
|
NH
|
| 14. |
87654836
|
[1] |
SHIELD
|
NH
LH
|
| 18. |
87725037
|
[1] |
SPROCKET
|
NH
17T RC50
|
| 20. |
131405
|
[4] |
SHIM
|
NH
|
| 21. |
86611401
|
[4] |
WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk
|
NH
|
| 22. |
9706687
|
[2] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 23. |
86629541
|
[4] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 24. |
9804257
|
[6] |
FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 25. |
9804262
|
[8] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 26. |
87034817
|
[34] |
SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"
|
CAS
|
| 27. |
120038
|
[3] |
CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 811-8030
|
| 28. |
86619060
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
|
| 29. |
140017
|
[4] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
| 30. |
322357
|
[6] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 31. |
322358
|
[6] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 32. |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 33. |
140046
|
[6] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 34. |
43128
|
[1] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 37. |
9804277
|
[5] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 39. |
80768
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1"
|
GI
Superseded by part number: 47471
|
| 44. |
87053734
|
[1] |
GUARD
|
PA
LH
|
| 45. |
84324676
|
[1] |
GUARD
|
NH
RH
|
