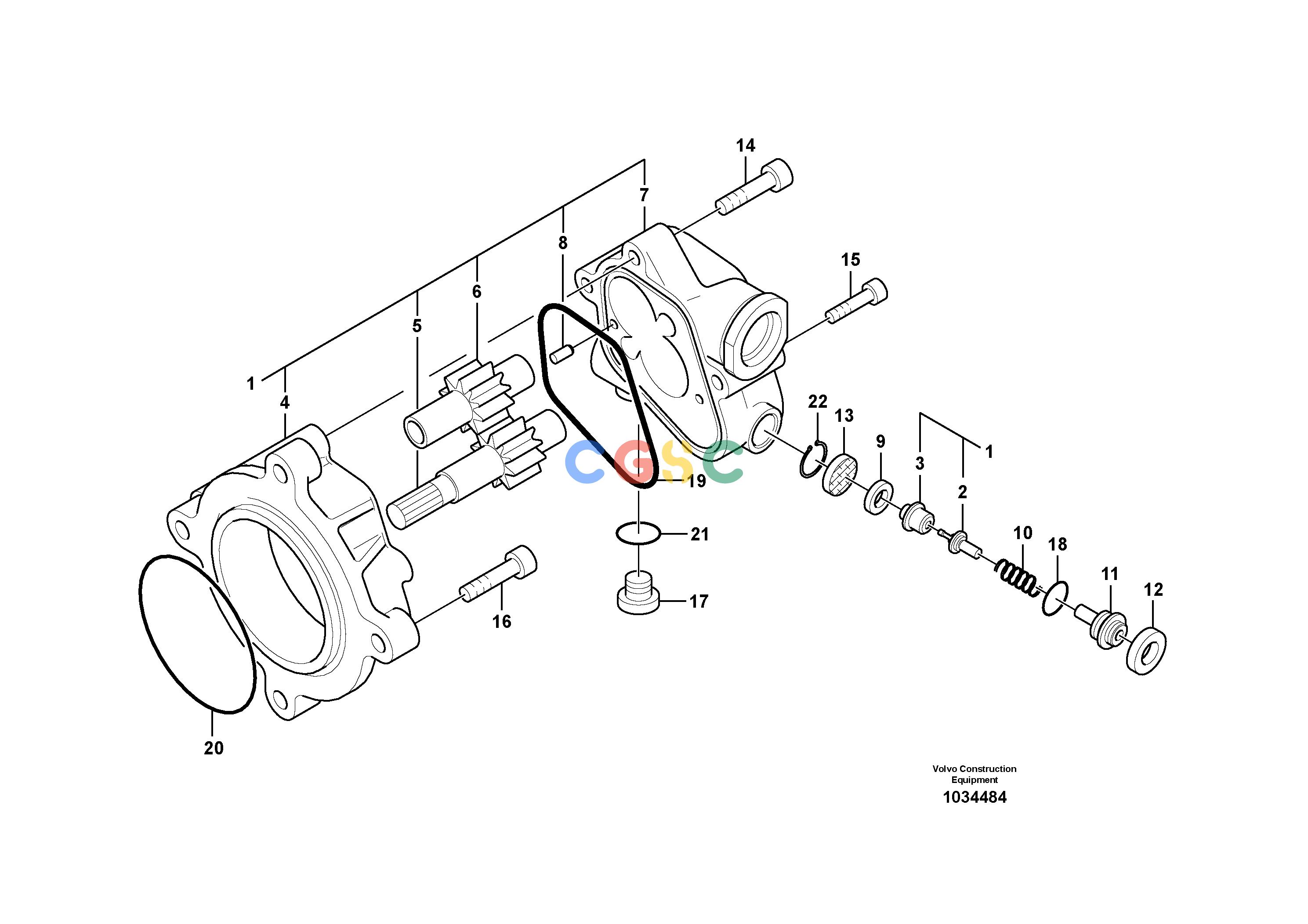

沃尔沃零件查询EC135B Hydraulic gear pumpSER NO 20001-200798277787-NoneVOE8277787NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
171 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14534034
|
[1] |
Gear pump
|
|
| 1. |
|
[1] |
Case
|
|
| 2. |
VOE14534041
|
[1] |
Poppet
|
|
| 3. |
VOE14534040
|
[1] |
Seat
|
|
| 4. |
VOE14534036
|
[1] |
Case
|
|
| 5. |
|
[1] |
Gear
|
|
| 6. |
|
[1] |
Gear
|
|
| 7. |
SA8230-08900
|
[1] |
Case
|
|
| 8. |
|
[2] |
Pin
|
|
| 9. |
VOE14534039
|
[1] |
Ring
|
|
| 10. |
VOE14534038
|
[1] |
Spring
|
|
| 11. |
VOE14534037
|
[1] |
Screw
|
|
| 12. |
SA7217-00290
|
[1] |
Lock nut
|
|
| 13. |
SA8230-08770
|
[1] |
Filter
|
|
| 14. |
SA8230-26250
|
[2] |
Screw
|
|
| 15. |
SA8230-26270
|
[2] |
Screw
|
|
| 16. |
SA8230-26240
|
[4] |
Socket
|
|
| 17. |
VOE14883837
|
[1] |
Plug
|
|
| 18. |
VOE983507
|
[1] |
O-ring
|
|
| 19. |
SA7223-02210
|
[1] |
Ring
|
|
| 20. |
VOE14534033
|
[1] |
O-ring
|
|
| 21. |
VOE983502
|
[1] |
O-ring
|
|
| 22. |
SA9541-02018
|
[1] |
Retaining ring
|
|
| 100. |
VOE14534042
|
[1] |
Seal
|
|
