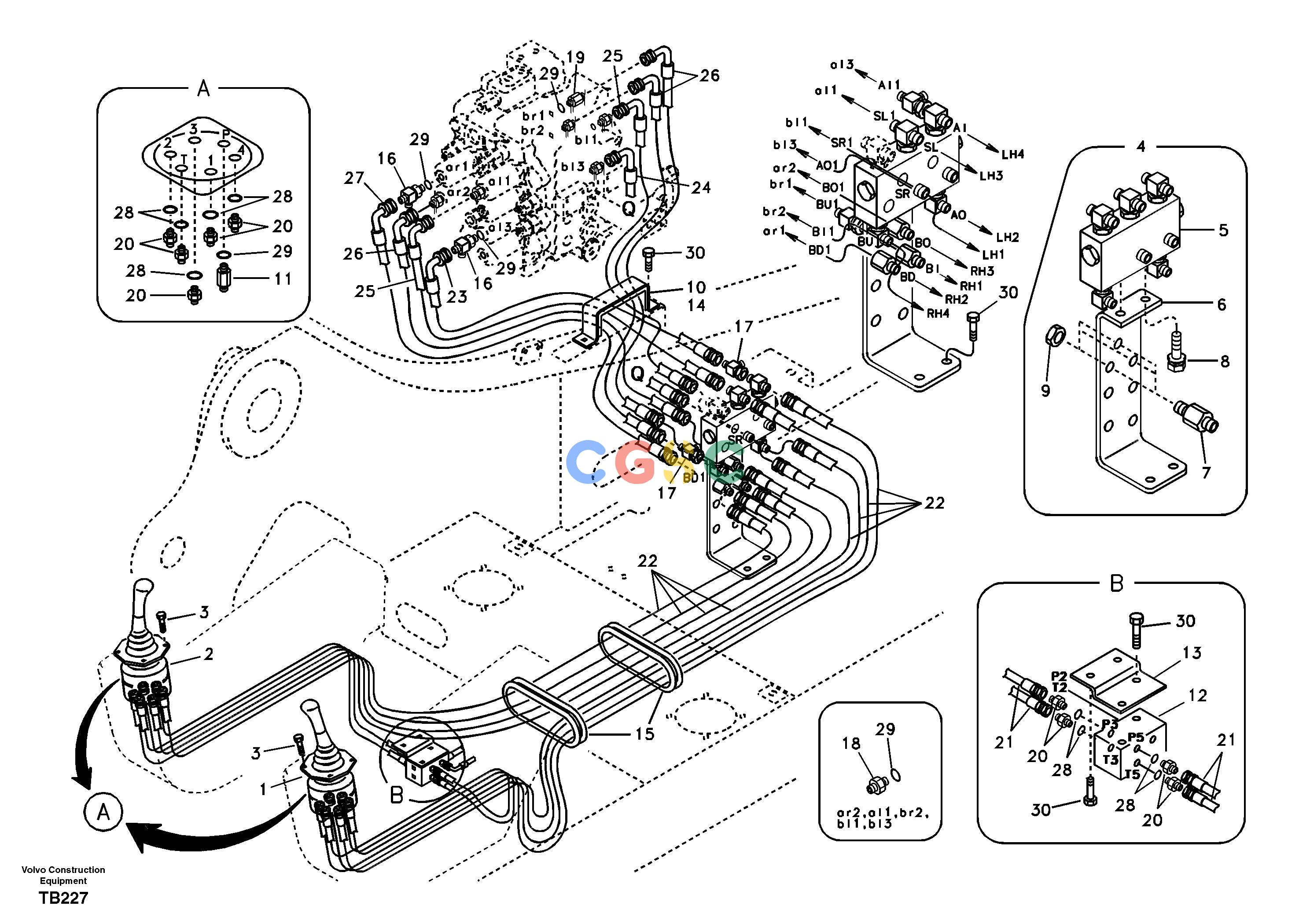

沃尔沃零件查询EC135B Servo system, control valve to remote control valveSER NO 20001-200798277787-8277147NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
939 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14510417
|
|
Remote control valve
|
S/N -20036
|
| |
VOE14557286
|
|
Remote control valve
|
S/N 20037-
|
| 2. |
VOE14510418
|
|
Remote control valve
|
S/N -20036
|
| |
VOE14557287
|
|
Remote control valve
|
S/N 20037-
|
| 3. |
VOE946934
|
|
Flange screw
|
|
| 4. |
VOE14517070
|
[1] |
Valve
|
|
| 5. |
VOE14517071
|
[1] |
Valve
|
|
| 6. |
VOE14512434
|
[1] |
Bracket
|
|
| 7. |
VOE14512435
|
[3] |
Nipple
|
|
| 8. |
VOE946471
|
[2] |
Flange screw
|
|
| 9. |
VOE14717620
|
[3] |
Nut
|
|
| 10. |
VOE14501408
|
[1] |
Sponge
|
|
| 11. |
SA1048-10540
|
[2] |
Connector
|
|
| 12. |
VOE14531097
|
[1] |
Block
|
|
| 13. |
VOE14531098
|
[1] |
Bracket
|
|
| 14. |
SA1148-01681
|
[1] |
Clamp
|
|
| 15. |
VOE14500509
|
[2] |
Grommet
|
|
| 16. |
SA9411-92350
|
[2] |
T-nipple
|
|
| 17. |
SA9411-95440
|
[2] |
T-nipple
|
|
| 18. |
SA9412-11020
|
[5] |
Nipple
|
|
| 19. |
SA9412-11090
|
[1] |
Nipple
|
|
| 20. |
SA9412-11130
|
[14] |
Nipple
|
|
| 21. |
SA9452-02223
|
[4] |
Hose assembly
|
|
| 22. |
SA9452-02240
|
[8] |
Hose assembly
|
|
| 23. |
SA9453-02218
|
[1] |
Hose assembly
|
|
| 24. |
SA9453-02219
|
[1] |
Hose assembly
|
|
| 25. |
SA9453-02220
|
[2] |
Hose assembly
|
|
| 26. |
SA9453-02221
|
[3] |
Hose assembly
|
|
| 27. |
SA9453-02222
|
[1] |
Hose assembly
|
|
| 28. |
VOE983505
|
[14] |
O-ring
|
|
| 29. |
VOE983502
|
[10] |
O-ring
|
|
| 30. |
VOE946441
|
[8] |
Flange screw
|
|
