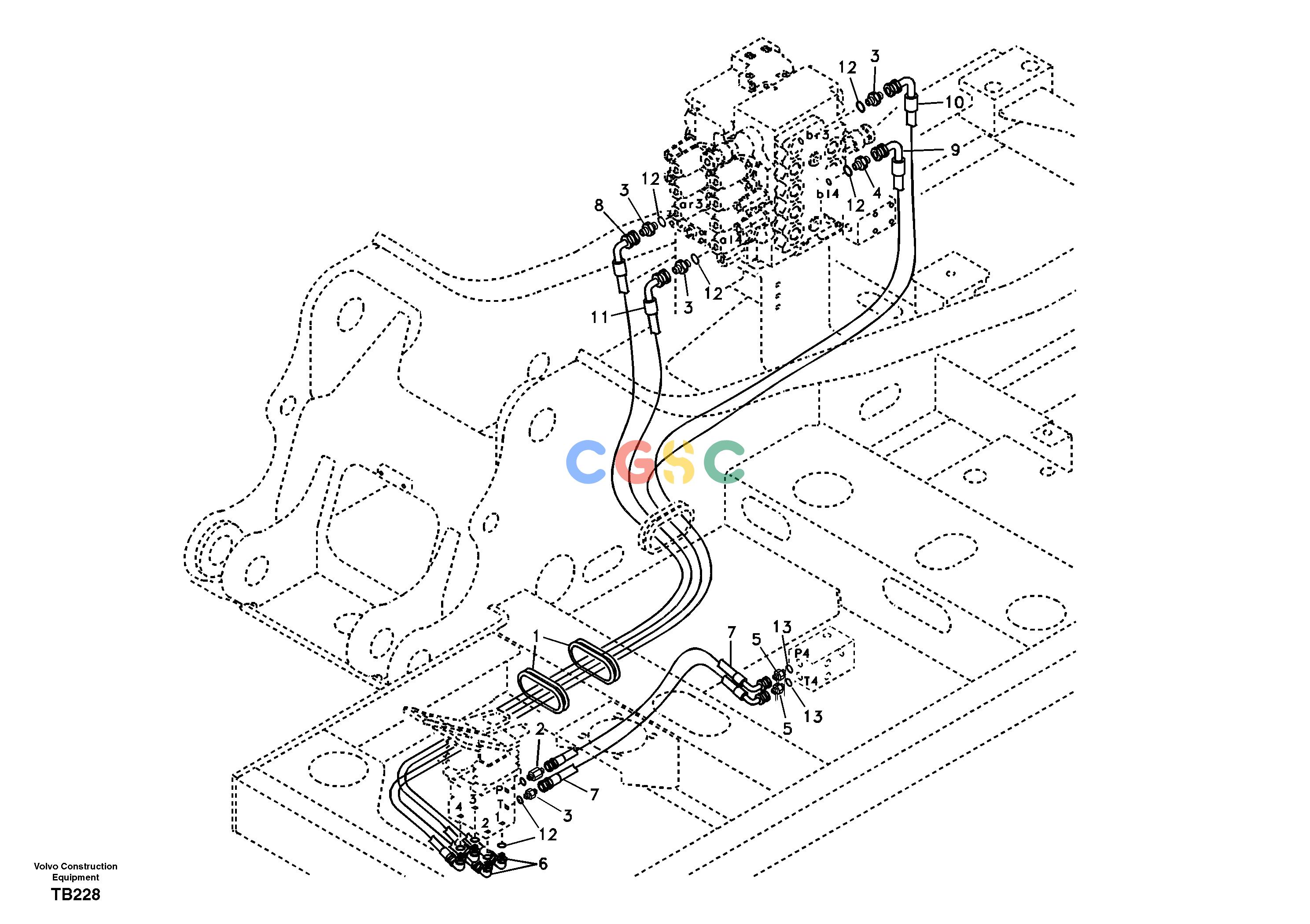

沃尔沃零件查询EC135B Servo system, control valve to remote control valve pedalSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
387 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14529064
|
[2] |
Grommet
|
|
| 2. |
SA1048-10540
|
[1] |
Connector
|
|
| 3. |
SA9412-11020
|
[4] |
Connector
|
|
| 4. |
SA9412-11090
|
[1] |
Connector
|
|
| 5. |
SA9412-11130
|
[2] |
Connector
|
|
| 6. |
SA9413-11010
|
[4] |
Elbow nipple
|
|
| 7. |
SA9452-02221
|
[2] |
Hose assembly
|
|
| 8. |
SA9453-02248
|
[1] |
Hose assembly
|
|
| 9. |
SA9453-02250
|
[1] |
Hose assembly
|
|
| 10. |
SA9453-02252
|
[1] |
Hose assembly
|
|
| 11. |
SA9453-02246
|
[1] |
Hose assembly
|
|
| 12. |
VOE983502
|
[10] |
O-ring
|
|
| 13. |
VOE983505
|
[2] |
O-ring
|
|
