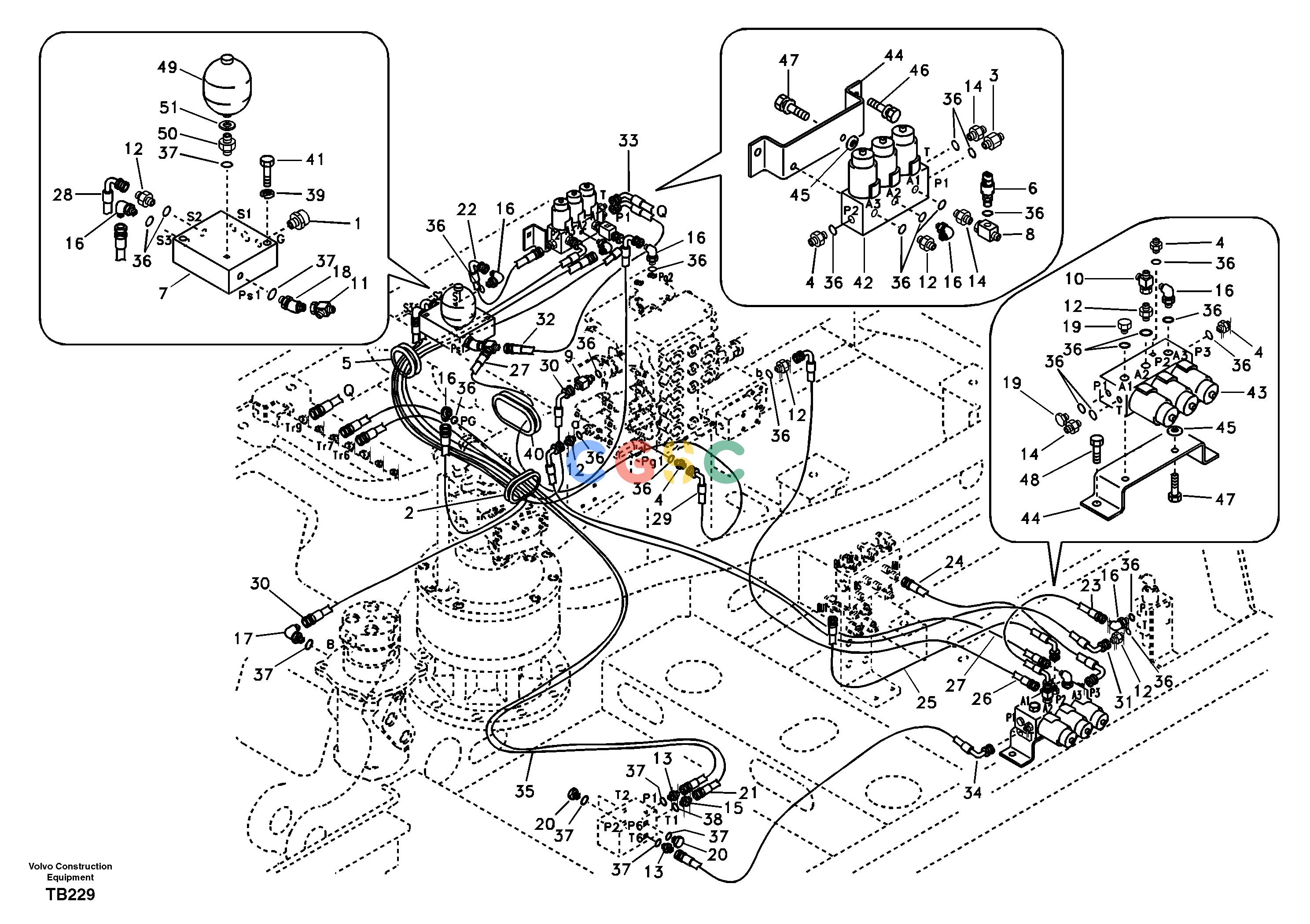

沃尔沃零件查询EC135B Servo system, control valve to solenoid valveSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
733 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14609529
|
[1] |
Nipple
|
|
| 2. |
VOE14531002
|
[1] |
Grommet
|
|
| 3. |
SA1048-10530
|
[1] |
Connector
|
|
| 4. |
SA1048-10540
|
[4] |
Connector
|
|
| 5. |
VOE14529122
|
[1] |
Grommet
|
|
| 6. |
VOE14562193
|
[1] |
Switch
|
|
| 7. |
VOE14531096
|
[1] |
Block
|
|
| 8. |
VOE14880130
|
[1] |
Tee
|
|
| 9. |
SA9411-92350
|
[1] |
T-nipple
|
|
| 10. |
SA9411-95440
|
[1] |
T-nipple
|
|
| 11. |
SA9411-95870
|
[1] |
T-nipple
|
|
| 12. |
SA9412-11020
|
[6] |
Nipple
|
|
| 13. |
SA9412-11030
|
[2] |
Connector
|
|
| 14. |
SA9412-11120
|
[3] |
Connector
|
|
| 15. |
SA9412-11150
|
[1] |
Connector
|
|
| 16. |
SA9413-11010
|
[7] |
Elbow nipple
|
|
| 17. |
SA9413-11170
|
[1] |
Elbow nipple
|
|
| 18. |
SA9414-11020
|
[1] |
Elbow
|
|
| 19. |
VOE14883837
|
[2] |
Plug
|
|
| 20. |
SA9415-11031
|
[3] |
Plug
|
|
| 21. |
SA9451-03247
|
[1] |
Hose assembly
|
|
| 22. |
SA9453-02205
|
[1] |
Hose assembly
|
|
| 23. |
SA9453-02208
|
[1] |
Hose assembly
|
|
| 24. |
SA9453-02210
|
[1] |
Hose assembly
|
|
| 25. |
SA9453-02212
|
[1] |
Hose assembly
|
|
| 26. |
SA9453-02226
|
[1] |
Hose assembly
|
|
| 27. |
SA9453-02228
|
[2] |
Hose assembly
|
|
| 28. |
SA9453-02231
|
[1] |
Hose assembly
|
|
| 29. |
SA9453-02234
|
[1] |
Hose assembly
|
|
| 30. |
SA9453-02243
|
[2] |
Hose assembly
|
|
| 31. |
SA9453-02245
|
[1] |
Hose assembly
|
|
| 32. |
SA9453-03212
|
[1] |
Hose assembly
|
|
| 33. |
SA9453-03220
|
[1] |
Hose assembly
|
|
| 34. |
SA9453-03221
|
[1] |
Hose assembly
|
|
| 35. |
SA9453-03258
|
[1] |
Hose assembly
|
|
| 36. |
VOE983502
|
[25] |
O-ring
|
|
| 37. |
VOE983505
|
[8] |
O-ring
|
|
| 38. |
VOE990557
|
[1] |
O-ring
|
|
| 39. |
VOE955921
|
[2] |
Spring washer
|
|
| 40. |
SA9751-15016
|
[1] |
Grommet
|
|
| 41. |
VOE983248
|
[2] |
Hexagon screw
|
|
| 42. |
VOE14526664
|
[1] |
Solenoid valve
|
|
| |
VOE14527267
|
[3] |
Solenoid coil
|
|
| 43. |
VOE14526665
|
[1] |
Solenoid valve
|
|
| |
VOE14527267
|
[3] |
Solenoid coil
|
|
| 44. |
VOE14577179
|
[2] |
Bracket
|
|
| 45. |
VOE993835
|
[0002] |
Plain washer
|
|
| 46. |
VOE946471
|
[2] |
Flange screw
|
|
| 47. |
VOE946440
|
[0002] |
Flange screw
|
|
| 48. |
VOE946441
|
[2] |
Flange screw
|
|
| 49. |
VOE14588220
|
[1] |
Pressure accumulator
|
|
| 50. |
SA9412-12150
|
[1] |
Connector
|
|
| 51. |
VOE947626
|
[1] |
Gasket
|
|
