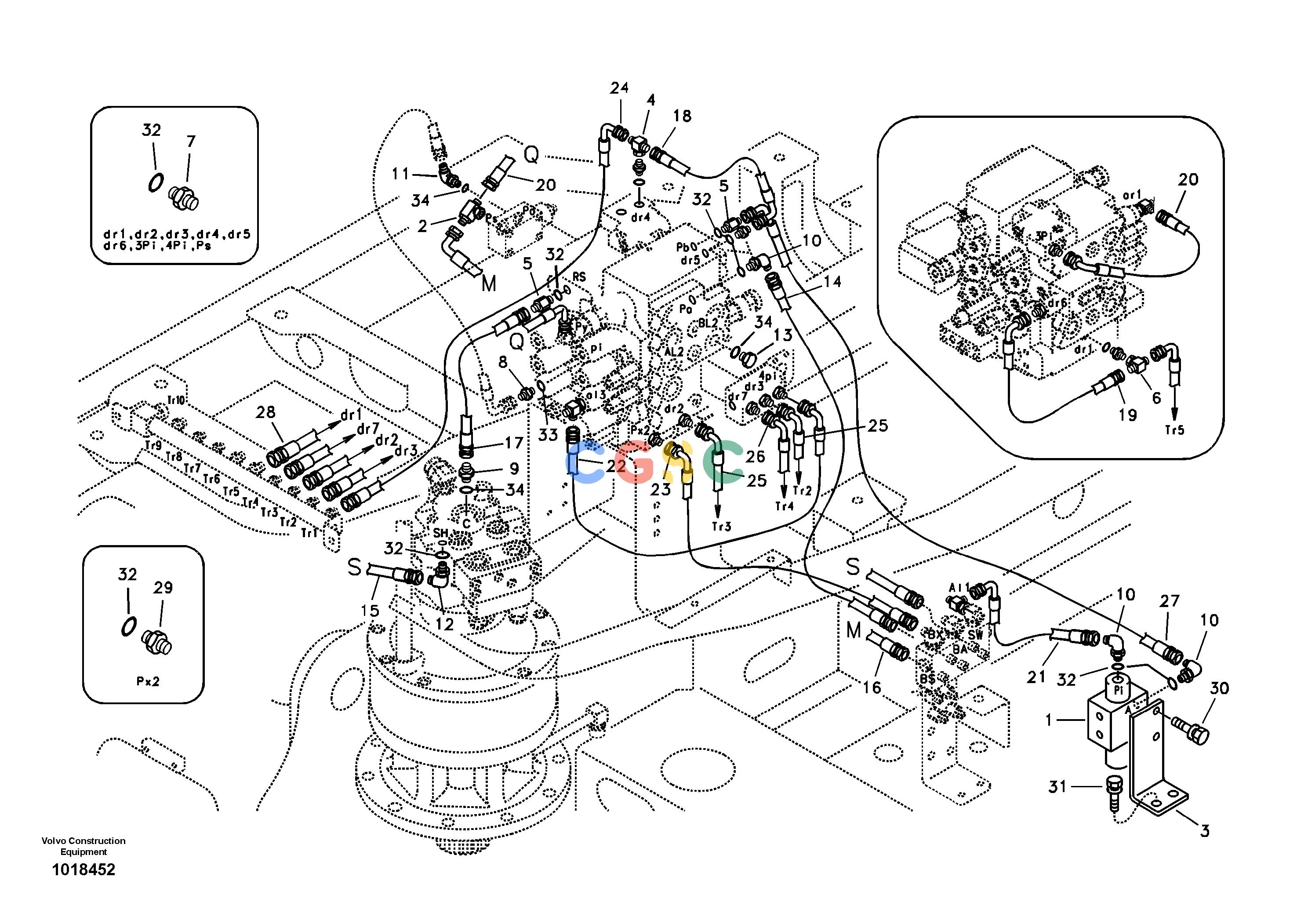

沃尔沃零件查询EC135B Servo system, control valve piping.SER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
142 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14578195
|
[1] |
Valve
|
|
| 2. |
VOE14510275
|
[1] |
T-nipple
|
|
| 3. |
VOE14514080
|
[1] |
Bracket
|
|
| 4. |
VOE14720827
|
[1] |
T-nipple
|
|
| 5. |
SA9411-92321
|
[1] |
Connector
|
|
| 6. |
VOE14720816
|
[1] |
T-nipple
|
|
| 7. |
SA9412-11020
|
[10] |
Nipple
|
|
| 8. |
SA9412-11030
|
[1] |
Connector
|
|
| 9. |
SA9412-11050
|
[2] |
Nipple
|
|
| 10. |
SA9413-11010
|
[3] |
Elbow nipple
|
|
| 11. |
SA9413-11020
|
[1] |
Elbow nipple
|
|
| 12. |
SA9414-11010
|
[1] |
Elbow
|
|
| 13. |
SA9415-11051
|
[2] |
Plug
|
|
| 14. |
SA9451-02218
|
[1] |
Hose assembly
|
|
| 15. |
SA9451-02223
|
[1] |
Hose assembly
|
|
| 16. |
SA9451-02225
|
[1] |
Hose assembly
|
|
| 17. |
SA9451-05208
|
[1] |
Hose assembly
|
|
| 18. |
SA9453-02205
|
[1] |
Hose assembly
|
|
| 19. |
SA9453-02206
|
[1] |
Hose assembly
|
|
| 20. |
SA9453-02208
|
[2] |
Hose assembly
|
|
| 21. |
SA9453-02212
|
[1] |
Hose assembly
|
|
| 22. |
SA9453-02213
|
[1] |
Hose assembly
|
|
| 23. |
SA9453-02214
|
[1] |
Hose assembly
|
|
| 24. |
SA9453-02225
|
[1] |
Hose assembly
|
|
| 25. |
SA9453-02226
|
[2] |
Hose assembly
|
|
| 26. |
SA9453-02228
|
[1] |
Hose assembly
|
|
| 27. |
SA9453-02233
|
[1] |
Hose assembly
|
|
| 28. |
SA9453-03222
|
[1] |
Hose assembly
|
|
| 29. |
SA9412-11090
|
[1] |
Nipple
|
|
| 30. |
VOE946440
|
[2] |
Flange screw
|
|
| 31. |
VOE946441
|
[2] |
Flange screw
|
|
| 32. |
VOE983502
|
[16] |
O-ring
|
|
| 33. |
VOE983505
|
[2] |
O-ring
|
|
| 34. |
VOE983524
|
[4] |
O-ring
|
|
