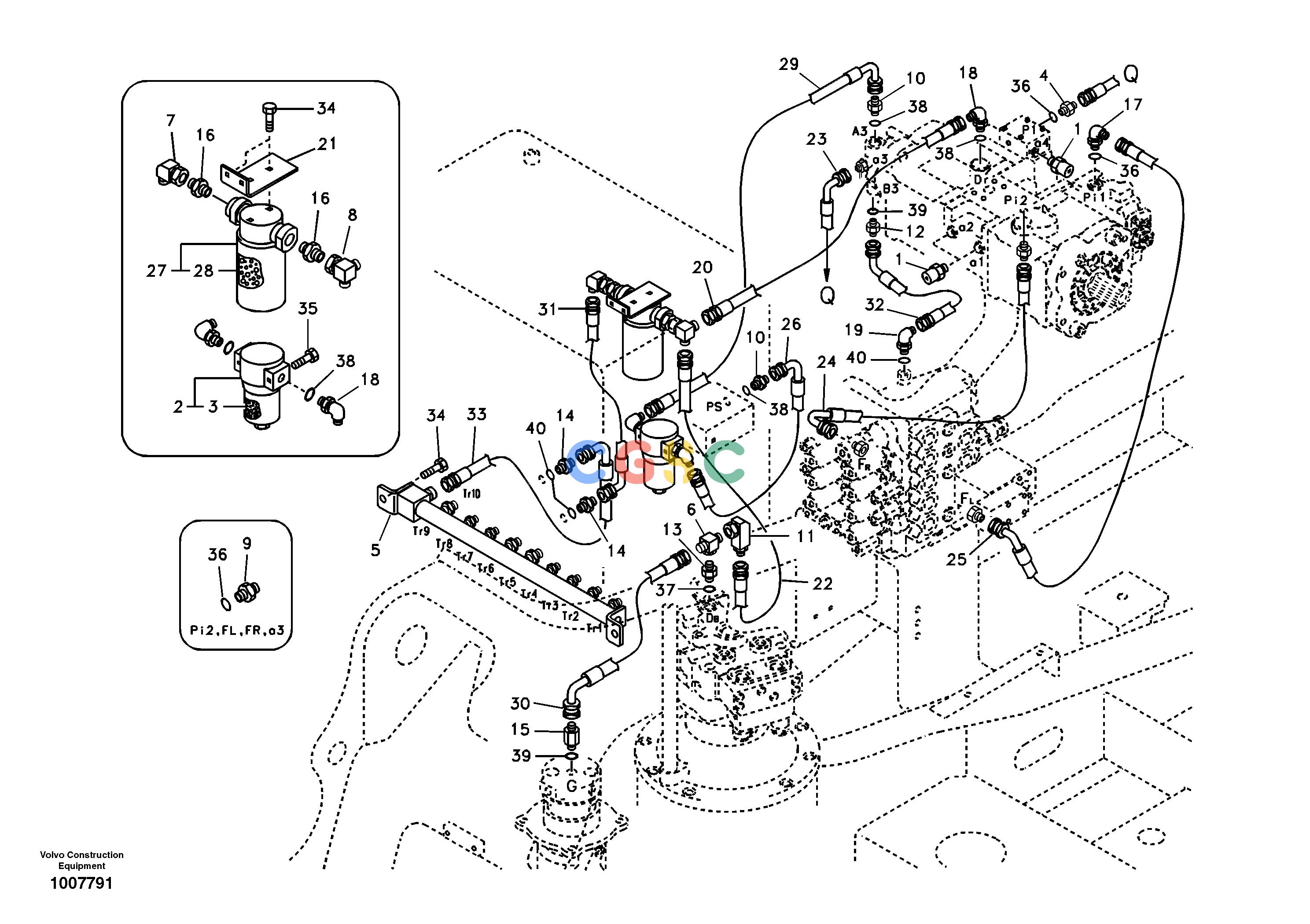

沃尔沃零件查询EC135B Servo system, pump piping and filter mount.SER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
865 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14609529
|
[3] |
Nipple
|
|
| 2. |
VOE14523264
|
[1] |
Filter
|
|
| 3. |
SA1030-61460
|
[1] |
Filter element
|
|
| |
VOE14511215
|
[1] |
O-ring
|
|
| 4. |
SA1048-10560
|
[1] |
Connector
|
|
| 5. |
VOE14516999
|
[1] |
Pipe
|
|
| 6. |
SA9411-92200
|
[1] |
T-nipple
|
|
| 7. |
SA9411-95340
|
[1] |
Elbow
|
|
| 8. |
SA9411-95350
|
[1] |
Elbow
|
|
| 9. |
SA9412-11020
|
[4] |
Nipple
|
|
| 10. |
VOE14883808
|
[2] |
Nipple
|
|
| 11. |
SA9411-90250
|
[1] |
Elbow
|
|
| 12. |
SA9412-11050
|
[1] |
Nipple
|
|
| 13. |
SA9412-11140
|
[1] |
Connector
|
|
| 14. |
SA9412-11190
|
[0002] |
Connector
|
|
| 15. |
SA9412-11280
|
[1] |
Connector
|
|
| 16. |
SA9412-43190
|
[2] |
Connector
|
|
| 17. |
SA9413-11010
|
[1] |
Elbow nipple
|
|
| 18. |
SA9413-11030
|
[3] |
Elbow nipple
|
|
| 19. |
SA9413-11230
|
[1] |
Elbow nipple
|
|
| 20. |
SA9452-04308
|
[1] |
Hose assembly
|
|
| 21. |
VOE14500811
|
[1] |
Bracket
|
|
| 22. |
SA9451-04334
|
[1] |
Hose assembly
|
|
| 23. |
SA9453-02212
|
[1] |
Hose assembly
|
|
| 24. |
SA9453-02335
|
[1] |
Hose assembly
|
|
| 25. |
SA9453-02340
|
[1] |
Hose assembly
|
|
| 26. |
SA9453-04308
|
[1] |
Hose assembly
|
|
| 27. |
VOE14523265
|
[1] |
Filter
|
|
| 28. |
VOE14524170
|
[1] |
Filter cartridge
|
|
| 29. |
SA9453-04310
|
[1] |
Hose assembly
|
|
| 30. |
SA9453-04314
|
[1] |
Hose assembly
|
|
| 31. |
SA9452-05208
|
[1] |
Hose assembly
|
|
| 32. |
SA9453-05208
|
[1] |
Hose assembly
|
|
| 33. |
SA9453-05216
|
[1] |
Hose assembly
|
|
| 34. |
VOE946441
|
[6] |
Flange screw
|
|
| 35. |
VOE13965178
|
[2] |
Screw
|
|
| 36. |
VOE983502
|
[6] |
O-ring
|
|
| 37. |
VOE983505
|
[1] |
O-ring
|
|
| 38. |
VOE990557
|
[5] |
O-ring
|
|
| 39. |
VOE983524
|
[2] |
O-ring
|
|
| 40. |
VOE983527
|
[3] |
O-ring
|
|
