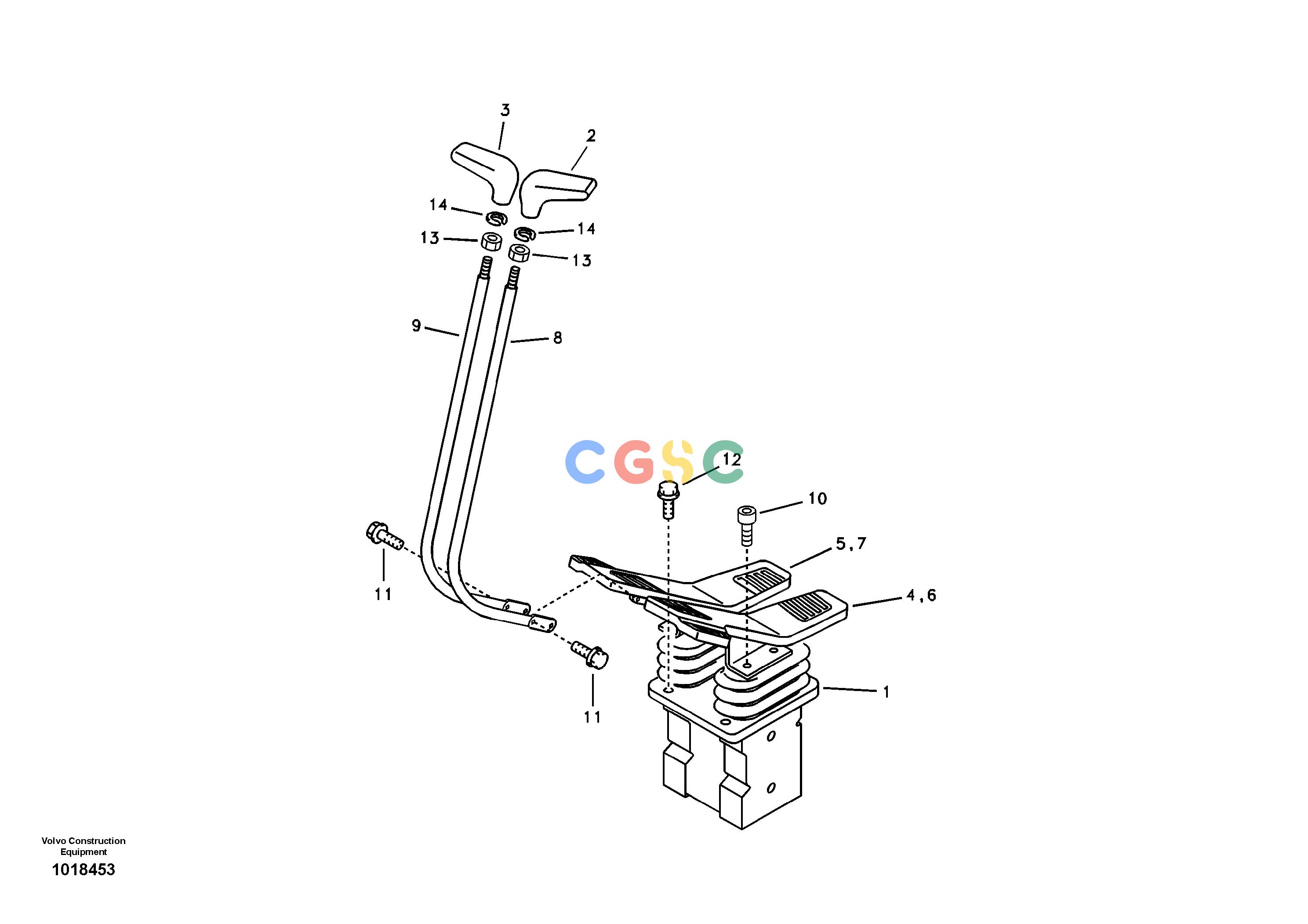

沃尔沃零件查询EC135B Remote control valve pedal with fitting partsSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
218 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14612097
|
[1] |
Pedal
|
|
| 2. |
VOE14627768
|
[1] |
Knob
|
|
| 3. |
VOE14627769
|
[1] |
Knob
|
|
| 4. |
VOE14521976
|
[1] |
Pedal
|
|
| 5. |
VOE14521977
|
[1] |
Pedal
|
|
| 6. |
VOE14522037
|
[1] |
Cover
|
|
| 7. |
VOE14522038
|
[1] |
Cover
|
|
| 8. |
VOE14521978
|
[1] |
Control lever
|
|
| 9. |
VOE14521979
|
[1] |
Control lever
|
|
| 10. |
VOE984348
|
[4] |
Hex. socket screw
|
|
| 11. |
VOE946329
|
[4] |
Flange screw
|
|
| 12. |
VOE60113094
|
[4] |
Flange screw
|
|
| 13. |
VOE983303
|
[2] |
Hexagon nut
|
|
| 14. |
VOE993835
|
[2] |
Plain washer
|
|
